COWLING (MODEL K)

GSX750F KATANA 1996 (T) USA (E03)

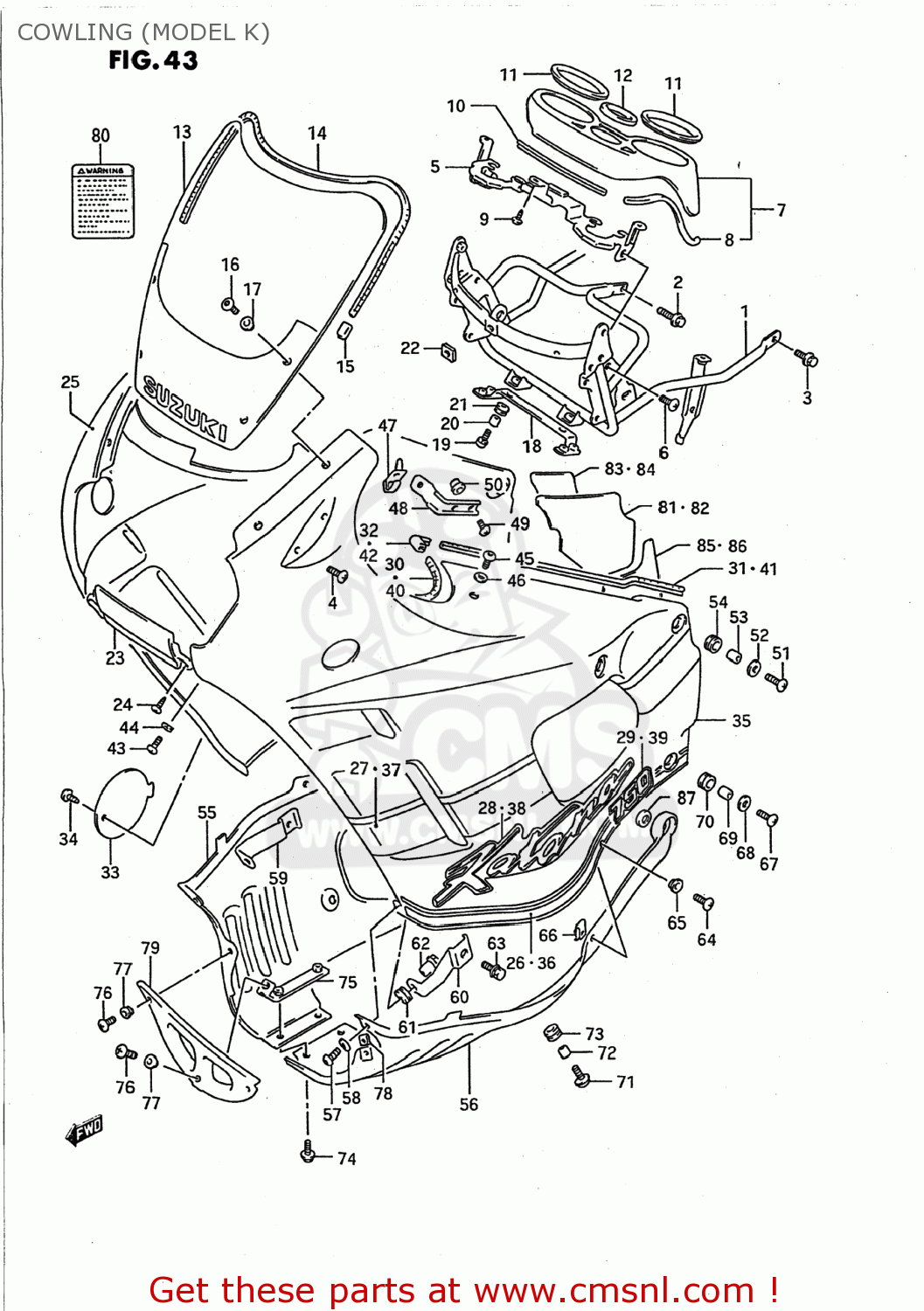

Cowling (model k) diagram GSX750F KATANA 1996 (T) USA (E03)

COWLING (MODEL K) GSX750F KATANA 1996 (T) USA (E03)

COWLING (MODEL K) GSX750F KATANA 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

9451020C00
ref: 1-1
94510-20C20

BRACE,COWLING

€ 128.50

1-2

9451020C10
ref: 1-2
94510-20C30

BRACE,COWLING

€ 145.50

2

0151708205
ref: 2
01550-0820A

BOLT

€ 3.00

3

0151706125
ref: 3
01550-0612A

BOLT 6X12

€ 2.50

4

0214206127
ref: 4

SCREW 6X12

€ 1.50

5

9452020C00
ref: 5

PLATE,METER FITING

€ 30.50

6

0214206125
ref: 6
02142-0612A

SCREW 6X12

€ 2.00

7

9442020C00
ref: 7
94420-20C02

COVER COMP,METER

€ 39.00

8

9463519C10
ref: 8
94635-19C00

MOLDING

€ 6.00

9

0354105085
ref: 9
03541-0508A

SCREW 5X8

€ 2.00

10

9452719C00
ref: 10

9452719C00

11

9442620C00
ref: 11

CUSHION,SPEEDOMETER

€ 5.50

12

9442720C00
ref: 12

CUSHION,FUEL METER

€ 4.00

13

9461020C00
ref: 13

WINDOW,COWLING

€ 234.00

14

9463120C00
ref: 14
94631-49300

MOLDING

€ 15.00

15

9463719C00
ref: 15

CAP,MOLDING END

€ 4.50

16

0913905022
ref: 16
09139-05042

SCREW

€ 2.50

17

0916105010
ref: 17

WASHER(5.2X11X1)

€ 2.00

18

9446019C00
ref: 18

PLATE,COWL CTR PANEL

€ 12.00

19

0913606081
ref: 19

SCREW(6X20)

€ 3.00

20

0918006167
ref: 20
09180-06286

SPACER (6,8X10X9.4)

€ 2.50

21

0932010015
ref: 21

CUSHION

€ 2.50

22

9463819C00
ref: 22
63191-25C00

CUSHION,SCREEN

€ 2.50

23-1

9442119C000FP
ref: 23-1
94421-19C01-0FP

PANEL,COWLING,CENTER

€ 30.00

23-2

9442119C010FP
ref: 23-2

PANEL,COWLING CTR

€ 30.00

23-3

9442119C0024V
ref: 23-3
94421-19C01-24V

PANEL,COWLING,CENTER

€ 37.50

23-4

9442119C0124V
ref: 23-4

PANEL,COWLING,CENTER

€ 37.50

24

0214205128
ref: 24
02142-05127

SCREW

€ 1.50

25-1

9440120C102VV
ref: 25-1
94401-20C12-2VV

COVER ASSEMBLY,COWLING,RIGHT

€ 708.00

25-2

9440120C112VV
ref: 25-2
94401-20C12-2VV

COVER ASSEMBLY,COWLING,RIGHT (R

€ 708.00

25-3

9440120C103CJ
ref: 25-3
94430-19C02-3CJ

COVER ASSEMBLY,COWLING,RIGHT (R

€ 723.00

25-4

9440120C113CJ
ref: 25-4
94430-19C02-3CJ

COVER ASSEMBLY,COWLING,RIGHT (R

€ 723.00

26-1

6868520C003DB
ref: 26-1

TAPE,COWL SIDE STRIPING,R

€ 18.50

26-2

6868520C0069L
ref: 26-2

TAPE,COWLING SIDE STRIPE

€ 18.50

27-1

6868620C0073H
ref: 27-1

TAPE,COWL SIDE,R

€ 35.50

27-2

6868620C003CU
ref: 27-2

TAPE,COWLING SIDE,RIGHT

€ 35.50

28-1

6818119C003CZ
ref: 28-1

EMBLEM,COWLING SIDE (KATANA)

€ 30.00

28-2

6818119C003DA
ref: 28-2

EMBLEM,COWLING SIDE (KATANA)

€ 30.50

29A

9443319C0124V
ref: 29A

COVER,COWLING METER,SIDE

€ 17.50

29B

9443319C010FP
ref: 29B

COVER,COWLING METER,SIDE

€ 14.50

29C

0354104105
ref: 29C
03541-0410A

0354104105

29-1

6868120C002VV
ref: 29-1

EMBLEM,COWLING SIDE (7)

€ 9.00

29-2

6868120C003CJ
ref: 29-2

EMBLEM,COWLING SIDE (7)

€ 9.00

30

9463119C10
ref: 30
94631-49310

MOLDING

€ 14.00

31

9463519C00
ref: 31

MOLDING

€ 6.00

32

9443819C00
ref: 32

JOINT,MOLDING END

€ 9.50

33-1

9443519C0024V
ref: 33-1
94435-19C01-24V

LID,OIL

€ 23.50

33-2

9443519C0124V
ref: 33-2

LID,OIL

€ 23.50

33-3

9443519C000FP
ref: 33-3
94435-19C01

LID,OIL

€ 14.00

33-4

9443519C010FP
ref: 33-4
94435-19C01

LID,OIL

€ 14.00

34

0913906030
ref: 34

SCREW(6X16)

€ 3.50

35-1

9440220C102VV
ref: 35-1
94402-20C12-2VV

COVER ASSEMBLY,COWLING,LEFT

€ 406.50

35-2

9440220C112VV
ref: 35-2
94402-20C12-2VV

COVER ASSEMBLY,COWLING,LEFT

€ 406.50

35-3

9440220C103CJ
ref: 35-3
94402-20C22-3CJ

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-4

9440220C113CJ
ref: 35-4
94402-20C22-3CJ

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-5

9440220C202VV
ref: 35-5

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-5

9440220C202VV
ref: 35-5

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-6

9440220C212VV
ref: 35-6
94402-20C20-2VV

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-7

9440220C203CJ
ref: 35-7
94402-20C22-3CJ

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-7

9440220C203CJ
ref: 35-7
94402-20C22-3CJ

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

35-8

9440220C213CJ
ref: 35-8
94402-20C22-3CJ

COVER ASSEMBLY,COWLING,LEFT

€ 2.00

36-1

6869520C003DB
ref: 36-1

TAPE,COWLING SIDE STRIPE

€ 18.50

36-2

6869520C0069L
ref: 36-2

TAPE,COWLING SIDE STRIPE

€ 18.50

37-1

6869620C0073H
ref: 37-1

TAPE,COWLING SIDE,LEFT

€ 41.50

37-2

6869620C003CU
ref: 37-2

TAPE,COWLING SIDE,LEFT

€ 39.00

38-1

6818119C003CZ
ref: 38-1

EMBLEM,COWLING SIDE (KATANA)

€ 30.00

38-2

6818119C003DA
ref: 38-2

EMBLEM,COWLING SIDE (KATANA)

€ 30.50

38-3

6819120C003CZ
ref: 38-3

EMBLEM,SIDE,LEFT (KATANA)

€ 27.00

38-4

6819120C003DA
ref: 38-4

EMBLEM

€ 21.00

39A

9444319C0124V
ref: 39A

COVER,COWLING METER,SIDE

€ 17.50

39B

9444319C010FP
ref: 39B

COVER,COWLING METER,SIDE

€ 19.50

39C

0354104105
ref: 39C
03541-0410A

0354104105

39-1

6868120C002VV
ref: 39-1

EMBLEM,COWLING SIDE (7)

€ 9.00

39-2

6868120C003CJ
ref: 39-2

EMBLEM,COWLING SIDE (7)

€ 9.00

40

9463119C10
ref: 40
94631-49310

MOLDING

€ 14.00

41

9463519C00
ref: 41

MOLDING

€ 6.00

42

9443819C00
ref: 42

JOINT,MOLDING END

€ 9.50

43

0913906029
ref: 43

SCREW(6X25)

€ 5.00

44

0916006036
ref: 44

WASHER(6.5X18X1.5)

€ 1.50

45

0913906030
ref: 45

SCREW(6X16)

€ 3.50

46

0916106021
ref: 46

WASHER(6.3X16X1.5)

€ 2.50

47

9456019C00
ref: 47

BRACKET,COWLING UPR,R

€ 40.50

48

9457019C00
ref: 48

BRACKET,COWLING UPR,L

€ 40.50

49

0912506055
ref: 49

SCREW(6X25)

€ 3.00

50

9457319C00
ref: 50

NUT,COWLING SIDE BRKT

€ 8.00

51

0913906029
ref: 51

SCREW(6X25)

€ 5.00

52

0916006036
ref: 52

WASHER(6.5X18X1.5)

€ 1.50

53

0918006011
ref: 53
09180-06263

SPACER (6.1X9X9)

€ 2.00

54

0932009016
ref: 54

CUSHION

€ 2.50

55-1

9447119C0013L
ref: 55-1

COVER,COWLING UNDER,R

€ 179.00

55-2

9447119C000FP
ref: 55-2

COVER,COWLING UNDER,R

€ 157.50

56-1

9448119C0013L
ref: 56-1

COVER,COWLING UNDER,L

€ 142.50

56-2

9448119C000FP
ref: 56-2

COVER,COWLING UNDER,L

€ 143.50

57

0913906042
ref: 57

SCREW(6X30)

€ 7.50

58

0916006036
ref: 58

WASHER(6.5X18X1.5)

€ 1.50

59

9453119C00
ref: 59

BRACKET,COWLING LWR,R

€ 8.00

60

9453219C00
ref: 60

BRACKET,COWLING LWR,L

€ 6.00

61

0932010015
ref: 61

CUSHION

€ 2.50

62

9459019C00
ref: 62

NUT,COWLING,FR

€ 8.00

63

0113706165
ref: 63
01570-0616A

BOLT

€ 2.50

64

0913905025
ref: 64

SCREW(5X14)

€ 2.00

65

0916105017
ref: 65

WASHER(5.2X14X1.5)

€ 3.00

66

9448432B00
ref: 66
94484-24F00

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

67

0913906029
ref: 67

SCREW(6X25)

€ 5.00

68

0916006036
ref: 68

WASHER(6.5X18X1.5)

€ 1.50

69

0918006116
ref: 69

SPACER(6.1X8X14.5)

€ 2.00

70

0932009016
ref: 70

CUSHION

€ 2.50

71

0913606081
ref: 71

SCREW(6X20)

€ 3.00

72

0918006011
ref: 72
09180-06263

SPACER (6.1X9X9)

€ 2.00

73

0932009016
ref: 73

CUSHION

€ 2.50

74

0214215165
ref: 74
02142-0516A

0214215165

75

9458019C00
ref: 75

BRACKET,FR UNDER COWL

€ 6.50

76

0214205164
ref: 76
02142-0516A

SCREW

€ 2.50

77

0916105017
ref: 77

WASHER(5.2X14X1.5)

€ 3.00

78

9448432B00
ref: 78
94484-24F00

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

79-1

9447519C0013L
ref: 79-1
94475-19C01

COVER,COWLING,UNDER,FRONT

€ 23.50

79-2

9447519C000FP
ref: 79-2
94475-19C01-0FP

COVER,COWLING,UNDER,FRONT

€ 23.50

79-3

9447519C01
ref: 79-3

COVER,COWLING UNDER FR

€ 23.50

80

6861248B00
ref: 80
68922-14F00

LABEL (WARNING SCREEN)

€ 6.50

81

9457320C00
ref: 81

BALANCER SHEET,COWLING,R

€ 22.50

82

9458320C00
ref: 82

BALANCER SHEET,COWLING,L

€ 16.00

83

9457620C00
ref: 83

CUSHION,COWLING,R

€ 6.00

84

9458620C00
ref: 84

CUSHION,COWLING,L

€ 6.00

85

9457420C00
ref: 85

SHEET,COWLING BALANCER,R

€ 19.00

86-1

9458420C00
ref: 86-1

SHEET,COWLING BALANCER

€ 24.50

86-2

9458420C10
ref: 86-2

SHEET,COWLING BALANCER

€ 0.00

87

9463920C00
ref: 87

9463920C00
