Buy Suzuki GSX Parts Online


REAR CALIPER (MODEL P/R/S/T)

GSX750F KATANA 1996 (T) USA (E03)

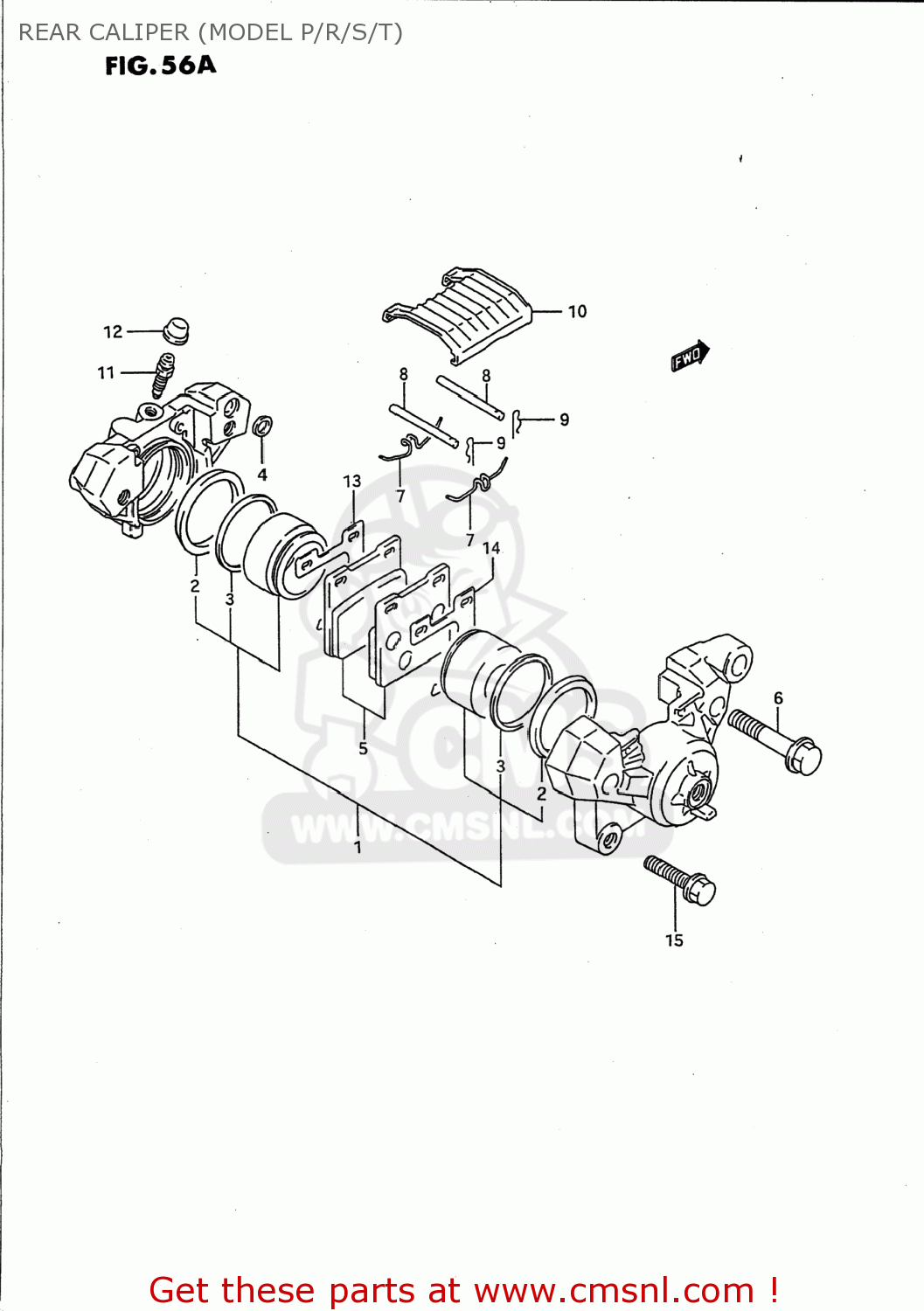

Rear caliper (model p/r/s/t) diagram GSX750F KATANA 1996 (T) USA (E03)

REAR CALIPER (MODEL P/R/S/T) GSX750F KATANA 1996 (T) USA (E03)
REAR CALIPER (MODEL P/R/S/T) GSX750F KATANA 1996 (T) USA (E03)
REAR CALIPER (MODEL P/R/S/T) GSX750F KATANA 1996 (T) USA (E03)
prices are in EUR
ref
part #
description
quantity

6910001D03
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
1
6910032810
ref: 1
69100-05851
PISTON SET
€ 122.50
2
5910718410
ref: 2
69107-05CF0
SEAL,PISTON
5910718410
€ 17.00
3
6910832B00
ref: 3
SEAL,WIPER
6910832B00
€ 26.50
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
6910020810
ref: 5
PAD SET (NAS)
6910020810
€ 41.50
6-1
5914517C00
ref: 6-1
BOLT
5914517C00
€ 7.00
6-2
5914516700
ref: 6-2
BOLT,HOUSING
5914516700
€ 8.00
7
5914316700
ref: 7
SPRING
5914316700
€ 7.50
8
6914145000
ref: 8
PIN,PAD
6914145000
€ 6.50
9
6914245000
ref: 9
CLIP,PAD PIN
6914245000
€ 4.50
10
5915116701
ref: 10
COVER
5915116701
€ 13.50
11
5912118410
ref: 11
BLEEDER
5912118410
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
5515666310
€ 6.00
13
5937120C00
ref: 13
SHIM,INNER
5937120C00
€ 7.50
14
5938120C00
ref: 14
SHIM,OUTER
5938120C00
€ 7.50
15-1
0151708304
ref: 15-1
01550-0830A
BOLT
0151708304
€ 3.00
15-2
0155008303
ref: 15-2
01550-0830A
BOLT
0155008303
€ 3.00
