FRAME COVER (MODEL S/T)
GSX750F KATANA 1996 (T) USA (E03)

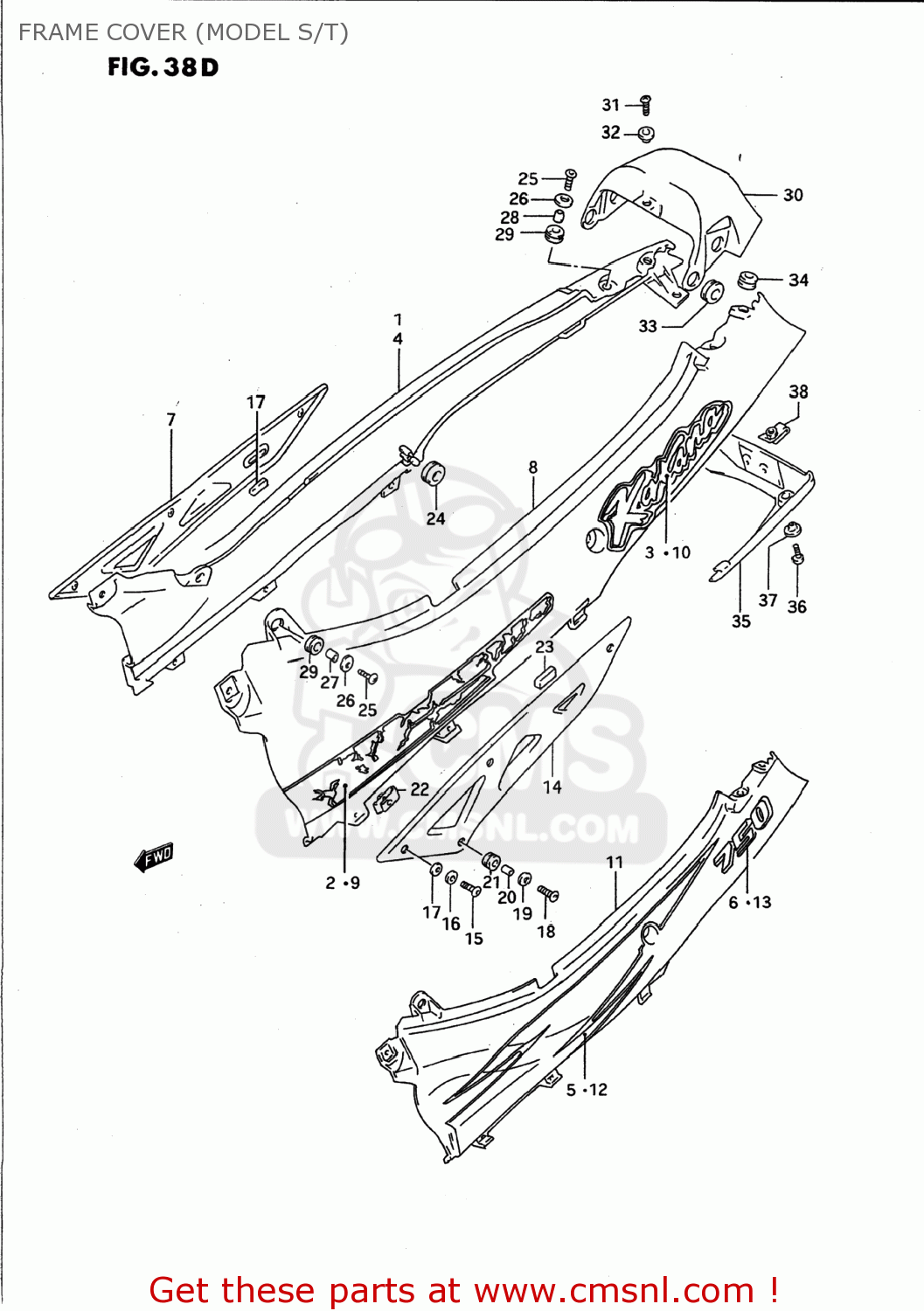

Frame cover (model s/t) diagram GSX750F KATANA 1996 (T) USA (E03)
FRAME COVER (MODEL S/T) GSX750F KATANA 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711021C8019A
ref: 1-1
COVER,FRAME,RIGHT
€ 243.00
1-2
4711021C8033J
ref: 1-2
47111-20C01
COVER,FRAME,RIGHT
€ 243.00
2-1
6813521C00D4R
ref: 2-1
TAPE,FRAME COVER,RIGHT
€ 33.50
2-2
6813521C00D4P
ref: 2-2
TAPE,FRAME COVER,R
€ 30.00
3-1
6813121C20D4T
ref: 3-1
EMBLEM,FRAME COVER
€ 0.00
3-2
6813121C20D4S
ref: 3-2
EMBLEM,FRAME COVER
€ 0.00
4-1
4711021C90Y98
ref: 4-1
COVER,FRAME,R(GREEN)
€ 284.00
4-2
4711021C9033J
ref: 4-2
COVER COMP,FRAME,RIGHT
€ 243.50
5-1
6813521C10Z56
ref: 5-1
TAPE,FRAME COVER,R
€ 45.50
5-2
6813521C10Z55
ref: 5-2
TAPE,FRAME COVER,RIGHT
€ 49.00
6-1
6813121C30E7H
ref: 6-1
EMBLEM,FRAME COVER
€ 10.50
6-2
6813121C30E7G
ref: 6-2
EMBLEM,FRAME COVER
€ 10.50
7
4713120C00
ref: 7
COVER,FRAME LWR,R
€ 72.00
8-1
4721021C8019A
ref: 8-1
COVER,FRAME,LEFT
€ 243.00
8-2
4721021C8033J
ref: 8-2
COVER,FRAME,LEFT
€ 312.00
9-1
6814521C00D4R
ref: 9-1
TAPE,FRAME COVER,LEFT
€ 33.50
9-2
6814521C00D4P
ref: 9-2
TAPE,FRAME COVER,LEFT
€ 30.00
10-1
6813121C20D4T
ref: 10-1
EMBLEM,FRAME COVER
€ 0.00
10-2
6813121C20D4S
ref: 10-2
EMBLEM,FRAME COVER
€ 0.00
11-1
4721021C90Y98
ref: 11-1
COVER COMP,FRAME,LEFT
€ 243.50
11-2
4721021C9033J
ref: 11-2
COVER,FRAME,L(BLACK)
€ 284.00
12-1
6814521C10Z56
ref: 12-1
TAPE,FRAME COVER,LEFT
€ 71.00
12-2
6814521C10Z55
ref: 12-2
TAPE,FRAME COVER,LEFT
€ 45.00
13-1
6813121C30E7H
ref: 13-1
EMBLEM,FRAME COVER
€ 10.50
13-2
6813121C30E7G
ref: 13-2
EMBLEM,FRAME COVER
€ 10.50
14
4723120C00
ref: 14
COVER,FRAME LWR,L
€ 66.50
15
0912006005
ref: 15
SCREW(6X16)
€ 2.50
16
0916006003
ref: 16
09160-06129
WASHER (6.7X16X1.8)
€ 2.00
17
0916105016
ref: 17
09320-06501
WASHER (5.5X16X1)
€ 2.00
18
0913906030
ref: 18
SCREW(6X16)
€ 3.50
19
0916006054
ref: 19
WASHER(6.5X22X1.6)
€ 2.00
20
0918006092
ref: 20
SPACER(6.2X8.3X6.1)
€ 4.00
21
0932008013
ref: 21
CUSHION
€ 4.00
22
4715319C01
ref: 22
PLATE,FRAME COVER
€ 4.00
23
4716120C00
ref: 23
CUSHION,FRAME COVER LWR
€ 3.00
24
0932008018
ref: 24
CUSHION
€ 4.00
25
0913906030
ref: 25
SCREW(6X16)
€ 3.50
26
0916006057
ref: 26
09160-06109
WASHER
€ 2.00
27
0918006038
ref: 27
SPACER(6.1X9X7.5)
€ 2.00
28
0918006011
ref: 28
09180-06263
SPACER (6.1X9X9)
€ 2.00
29
0932009016
ref: 29
CUSHION
€ 2.50
30-1
4731120C0119A
ref: 30-1
COVER,FRAME CTR
€ 36.00
30-2
4731120C0133J
ref: 30-2
COVER,FRAME CTR
€ 40.00
30-3
4731120C01Y98
ref: 30-3
COVER,FRAME,CENTER
€ 36.00
31
0214206103
ref: 31
02142-0610A
SCREW 6X10
€ 2.00
32
0916906037
ref: 32
WASHER
€ 6.50
33
0930816006
ref: 33
GROMMET
€ 3.00
34
9443326B00
ref: 34
CUSHION
€ 4.00
35
4732120C00
ref: 35
COVER,FRAME RR
€ 23.00
36
0214206163
ref: 36
02142-0616A
SCREW
€ 2.50
37
0916906037
ref: 37
WASHER
€ 6.50
38
4715319C01
ref: 38
PLATE,FRAME COVER
€ 4.00
