HEADLAMP (MODEL W/X/Y/K1/K2)

GSX750F KATANA 2000 (Y) USA (E03)

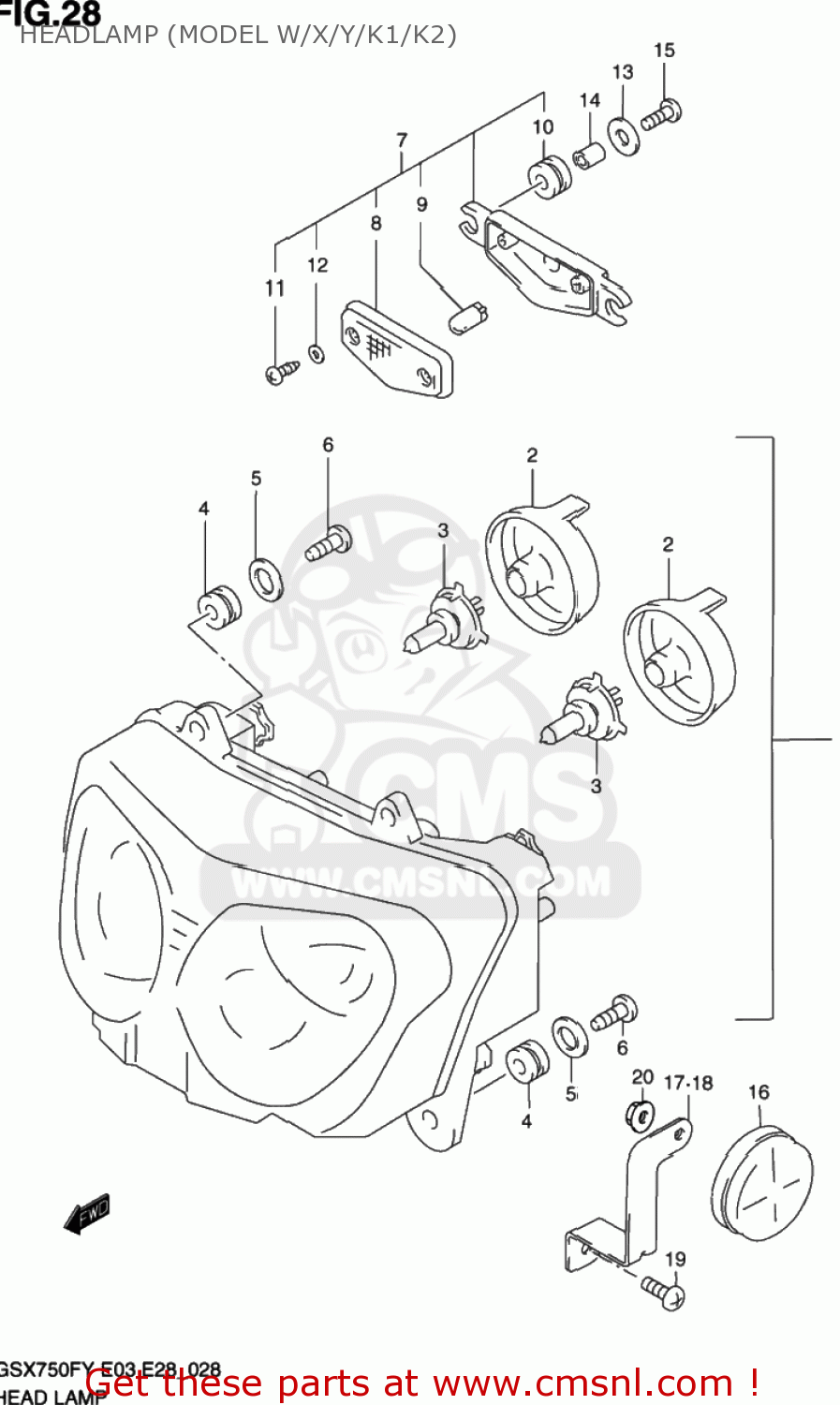

Headlamp (model w/x/y/k1/k2) diagram GSX750F KATANA 2000 (Y) USA (E03)

HEADLAMP (MODEL W/X/Y/K1/K2) GSX750F KATANA 2000 (Y) USA (E03)

HEADLAMP (MODEL W/X/Y/K1/K2) GSX750F KATANA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3510008F00999
ref: 1-1
35100-08F01-999

HEADLAMP ASSEMBLY

€ 437.00

1-2

3510008F01999
ref: 1-2

HEADLAMP ASSY

€ 437.00

2

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3

0947112185
ref: 3
09471-12060

BULB(12V60/55W,H4)

€ 8.00

4

3513733E00
ref: 4

CUSHION,HEADLAMP

€ 3.00

5

0916005045
ref: 5

WASHER(5.5X18X1)

€ 2.00

6

0351205163
ref: 6
03511-0516A

SCREW

€ 2.50

7

3611008F00
ref: 7

LAMP ASSY,FR POSITION

€ 59.50

8

3611208F00
ref: 8

LENS

€ 9.50

9

0947112081
ref: 9

BULB(12V5W)

€ 1.50

10

0932008001
ref: 10

CUSHION

€ 3.50

11

0321104123
ref: 11
03211-0412A

SCREW

€ 1.50

12-1

3611708F00
ref: 12-1
35128-37B00

WASHER

€ 3.50

12-2

3512837B00
ref: 12-2

WASHER

€ 3.50

13

0916005045
ref: 13

WASHER(5.5X18X1)

€ 2.00

14

0918005048
ref: 14

SPACER(5.5X8X10.5)

€ 2.00

15

0214205203
ref: 15
02142-0520B

SCREW 5X20

€ 2.00

16

3595014A00
ref: 16

REFLECTOR,REFLEX FR

€ 15.00

17-1

3595608F00
ref: 17-1
35956-08F01

BRACKET,FRONT SIDE,REAR

€ 4.50

17-2

3595608F01
ref: 17-2

BRACKET,FR SIDE

€ 4.50

18-1

3595708F00
ref: 18-1
35957-08F01

BRACKET,FRONT SIDE,REAR

€ 6.50

18-2

3595708F01
ref: 18-2

BRACKET,FR SIDE RR,L

€ 6.50

19

0214205103
ref: 19
02142-0510B

SCREW

€ 2.50

20

0831610053
ref: 20
08316-1005A

NUT

€ 2.50
