SPEEDOMETER (MODEL K2/K3)

GSX750F KATANA 2000 (Y) USA (E03)

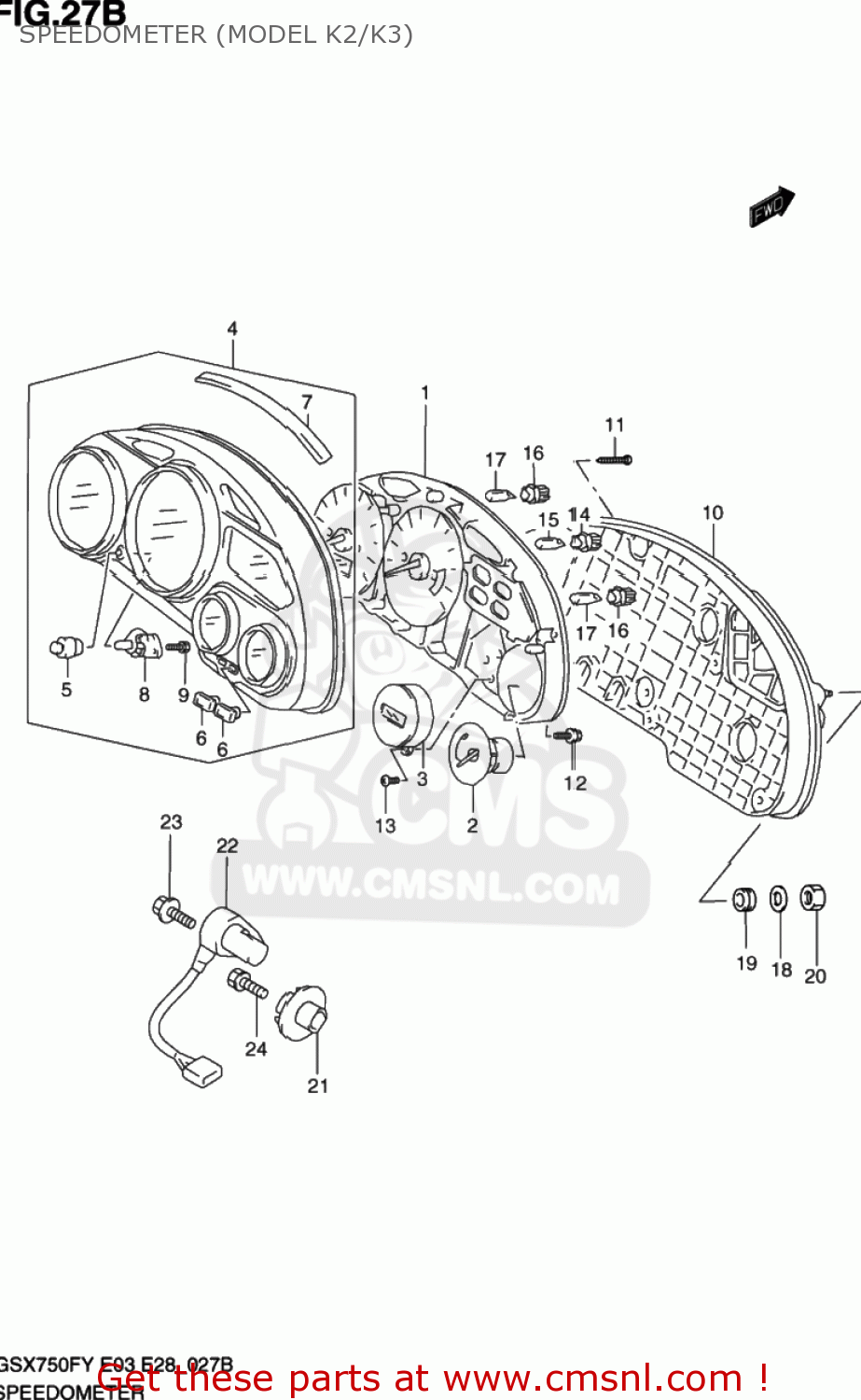

Speedometer (model k2/k3) diagram GSX750F KATANA 2000 (Y) USA (E03)

SPEEDOMETER (MODEL K2/K3) GSX750F KATANA 2000 (Y) USA (E03)

SPEEDOMETER (MODEL K2/K3) GSX750F KATANA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412008FC0
ref: 1-1

SPEEDOMETER

€ 803.50

1-2

3412008FB0
ref: 1-2

SPEEDOMETER

€ 764.00

2

3432008F90
ref: 2

FUEL,METER

€ 91.50

3

3472008F50
ref: 3

CLOCK ASSY

€ 89.50

4

3415008F50
ref: 4

VISOR ASSY

€ 80.50

5

3412433E00
ref: 5

SWITCH,GUM

€ 5.50

6

3466121EA0
ref: 6

SWITCH,GUM

€ 3.50

7

3415321EA0
ref: 7

PACKING (NAS)

€ 10.00

8

3412333E00
ref: 8

ATTACHMENT,SWITCH

€ 6.50

9

0913203005
ref: 9

SCREW(3X10)

€ 1.50

10

3413021EA1
ref: 10

CASE ASSY

€ 87.00

11

0354104203
ref: 11
03541-0420A

SCREW

€ 2.50

12

0211273207
ref: 12

SCREW

€ 2.00

13

0351104163
ref: 13
03511-0416A

SCREW

€ 1.50

14

3417233E00
ref: 14

SOCKET(T:6.5)

€ 5.00

15

0947112108
ref: 15

BULB(12V1.7W,T6.5)

€ 2.00

16

3417578900
ref: 16

SOCKET

€ 3.50

17

0947112055
ref: 17

BULB(14V1.4W,T5)

€ 4.50

18

0916006054
ref: 18

WASHER(6.5X22X1.6)

€ 2.00

19

0932008053
ref: 19

CUSHION

€ 5.00

20

0831000063
ref: 20
08310-0006A

NUT 6MM

€ 2.00

21

3498135F00
ref: 21
34981-38G01

ROTOR,SPEED

€ 15.00

22

3499035F00
ref: 22

SENSOR,SPEED

€ 112.50

23

0712005123
ref: 23
07120-0512B

BOLT

€ 2.00

24

0713008253
ref: 24
07130-0825B

BOLT

€ 3.50
