WIRING HARNESS (MODEL K3)

GSX750F KATANA 2000 (Y) USA (E03)

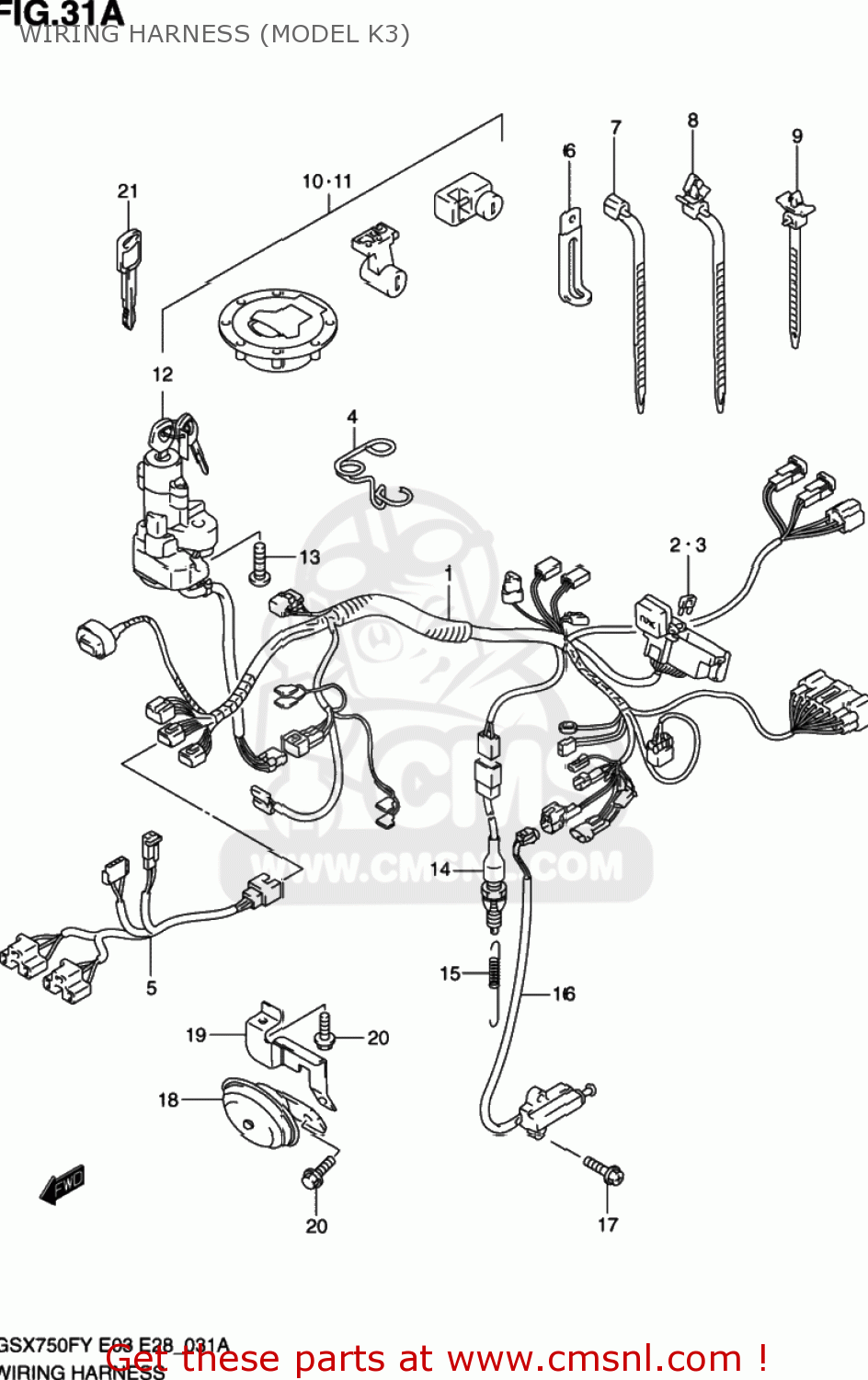

Wiring harness (model k3) diagram GSX750F KATANA 2000 (Y) USA (E03)

WIRING HARNESS (MODEL K3) GSX750F KATANA 2000 (Y) USA (E03)

WIRING HARNESS (MODEL K3) GSX750F KATANA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661008FA0
ref: 1

HARNESS,WIRING

€ 0.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

3661908F00
ref: 4

GUIDE,WIRING HARNESS

€ 9.00

5

3662008FA0
ref: 5

HARNESS,WIRING NO.2

€ 0.00

6

3685308F00
ref: 6

WIRE,LEAD

€ 33.50

7

0940406435
ref: 7

CLAMP(L:135)

€ 2.50

8-1

0940714403
ref: 8-1

CLAMP(L:125)

€ 2.50

8-2

0940718402
ref: 8-2

CLAMP(L:165)

€ 2.50

9-1

0940711402
ref: 9-1

CLAMP(L:90)

€ 2.50

9-2

0940714408
ref: 9-2
09407-17402

CLAMP(L:120)

€ 5.00

10

3710533850
ref: 10
37105-33851

LOCK SET

€ 479.50

11

3710333820
ref: 11

LOCK SET

€ 141.50

12

3710033E20
ref: 12

LOCK ASSY,STEERING

€ 223.50

13

0913908016
ref: 13

BOLT(8X20)

€ 3.50

14

3774019F00
ref: 14

SWITCH ASSY,STOP LAMP

€ 21.00

15

0944306005
ref: 15

SPRING

€ 6.00

16

3784044X50
ref: 16

SWITCH ASSY,SIDE STAND

€ 75.50

17

0216206163
ref: 17
02162-0616B

SCREW

€ 2.50

18

3850008F10
ref: 18

HORN ASSY

€ 75.50

19

3859008F00
ref: 19

BRACKET,HORN

€ 7.00

20

0155008123
ref: 20
01550-0812A

BOLT

€ 3.50

21

3714633E00
ref: 21

KEY,BLANK

€ 13.00
