CARBURETOR (MODEL T/V)

GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

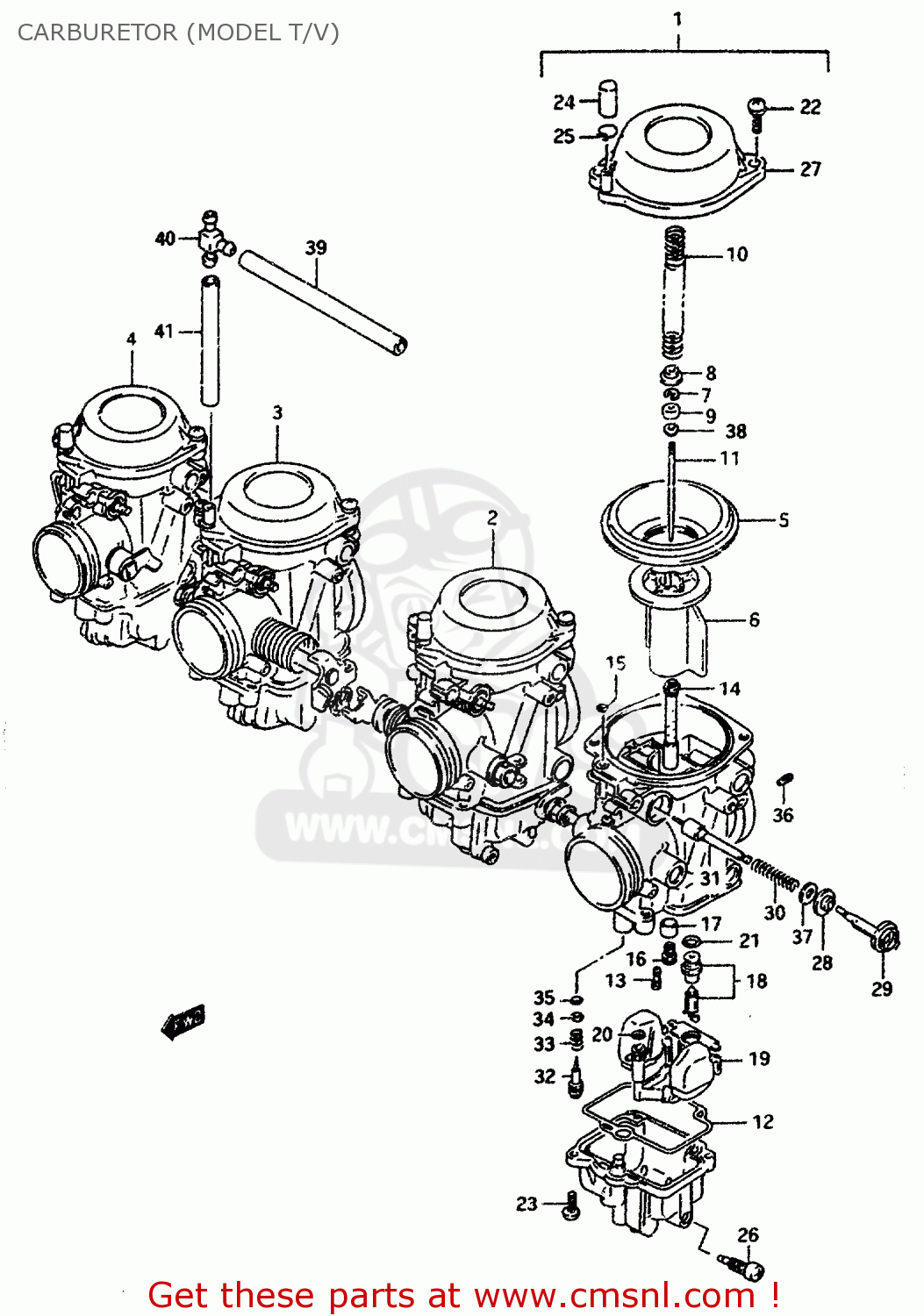

Carburetor (model t/v) diagram GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

CARBURETOR (MODEL T/V) GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CARBURETOR (MODEL T/V) GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CARBURETOR (MODEL T/V) GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1320146EB0
ref: 1-1
MODEL T E2
CARBURETOR ASSY, LH
€ 600.50
1-2
1320146EH0
ref: 1-2
MODEL V E2
CARBURETOR ASSY,L
1320146EH0
€ 529.00
1-3
1320146ED0
ref: 1-3
E4
CARBURETOR ASSY, LH
€ 0.00
1-4
1320146EF0
ref: 1-4
E22
CARBURETOR ASSY, LH
€ 0.00
1-5
1320146EE0
ref: 1-5
E18
CARBURETOR ASSY, LH
1320146EE0
€ 328.00
1-6
1320146EH0
ref: 1-6
E24,E25,E34
CARBURETOR ASSY,L
1320146EH0
€ 529.00
1-7
1320146EK0
ref: 1-7
E39
CARBURETOR ASSY, LH
€ 0.00
1-8
1320146EL0
ref: 1-8
E37,P37
CARBURETOR ASSY, LH
€ 0.00
2-1
1320246EB0
ref: 2-1
MODEL T E2
CARBURETOR ASSY, ML
€ 622.00
2-2
1320246EH0
ref: 2-2
MODEL V E2
CARBURETOR ASSY, ML
1320246EH0
€ 622.00
2-3
1320246ED0
ref: 2-3
E4
CARBURETOR ASSY, ML
€ 0.00
2-4
1320246EF0
ref: 2-4
E22
CARBURETOR ASSY, ML
€ 0.00
2-5
1320246EE0
ref: 2-5
E18
CARBURETOR ASSY, ML
€ 0.00
2-6
1320246EH0
ref: 2-6
E24,E25,E34
CARBURETOR ASSY, ML
1320246EH0
€ 622.00
2-7
1320246EK0
ref: 2-7
E39
CARBURETOR ASSY, ML
€ 0.00
2-8
1320246EL0
ref: 2-8
E37,P37
CARBURETOR ASSY,ML
€ 622.00
3-1
1320346EB0
ref: 3-1
MODEL T E2
CARBURETOR ASSY, MR
€ 622.00
3-2
1320346EH0
ref: 3-2
MODEL V E2
CARBURETOR ASSY, MR
1320346EH0
€ 622.00
3-3
1320346ED0
ref: 3-3
E4
CARBURETOR ASSY, MR
€ 0.00
3-4
1320346EF0
ref: 3-4
E22
CARBURETOR ASSY, MR
€ 0.00
3-5
1320346EE0
ref: 3-5
E18
CARBURETOR ASSY, MR
€ 0.00
3-6
1320346EH0
ref: 3-6
E24,E25,E34
CARBURETOR ASSY, MR
1320346EH0
€ 622.00
3-7
1320346EK0
ref: 3-7
E39
CARBURETOR ASSY, MR
€ 0.00
3-8
1320346EL0
ref: 3-8
E37,P37
CARBURETOR ASSY,MR
€ 622.00
4-1
1320446EB0
ref: 4-1
MODEL T E2
CARBURETOR ASSY, RH
€ 622.00
4-2
1320446EH0
ref: 4-2
MODEL V E2
CARBURETOR ASSY, RH
1320446EH0
€ 622.00
4-3
1320446ED0
ref: 4-3
E4
CARBURETOR ASSY, RH
€ 0.00
4-4
1320446EF0
ref: 4-4
E22
CARBURETOR ASSY, RH
€ 0.00
4-5
1320446EE0
ref: 4-5
E18
CARBURETOR ASSY, RH
€ 0.00
4-6
1320446EH0
ref: 4-6
E24,E25,E34
CARBURETOR ASSY, RH
1320446EH0
€ 622.00
4-7
1320446EK0
ref: 4-7
E39
CARBURETOR ASSY, RH
€ 0.00
4-8
1320446EL0
ref: 4-8
E37
CARBURETOR ASSY,R
€ 622.00
5-1
1350707D01
ref: 5-1
DIAPHRAGM
1350707D01
€ 24.50
5-2
1350717C01
ref: 5-2
E18,E39
DIAPHRAGM
1350717C01
€ 24.50
6-1
1350117D00
ref: 6-1
VALVE,PISTON
1350117D00
€ 69.50
6-2
1350117C20
ref: 6-2
E18
VALVE,PISTON
1350117C20
€ 64.00
6-3
1350102D00
ref: 6-3
E39
VALVE,PISTON
1350102D00
€ 79.50
7-1
1339431210
ref: 7-1
CLIP,NEEDLE
1339431210
€ 3.50
7-2
1339410010
ref: 7-2
E18,E39
CLIP
1339410010
€ 4.50
8-1
1333112D00
ref: 8-1
RING
1333112D00
€ 4.50
8-2
1338242A00
ref: 8-2
E18,E39
RING
1338242A00
€ 3.50
9-1
1338707D00
ref: 9-1
RING
1338707D00
€ 4.50
9-2
1338747010
ref: 9-2
E18,E39
RING
1338747010
€ 7.50
10-1
1341731E00
ref: 10-1
SPRING
1341731E00
€ 8.50
10-2
1350334A00
ref: 10-2
E18,E39
SPRING
1350334A00
€ 6.50
11-1
1338341C00
ref: 11-1
NEEDLE,JET
1338341C00
€ 17.00
11-2
1338346E70
ref: 11-2
E4
NEEDLE,JET
€ 0.00
11-3
1338346E40
ref: 11-3
E18
JET NEEDLE (5D44)
1338346E40
€ 12.50
11-4
1338346E50
ref: 11-4
E39
JET NEEDLE (5D51)
€ 11.50
12
1325844B00
ref: 12
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
13-1
0949240014
ref: 13-1
JET(40)
0949240014
€ 8.50
13-2
0949230010
ref: 13-2
E18,E39
JET,PILOT(30)
0949230010
€ 13.00
14-1
0949400857
ref: 14-1
JET,NEEDLE(P-2)
0949400857
€ 22.50
14-2
0949400809
ref: 14-2
E18
NEEDLE JET (O-9)
€ 20.00
14-3
0949400804
ref: 14-3
E39
JET,NEEDLE (O-8)
€ 33.00
15-1
1327802340
ref: 15-1
O RING
1327802340
€ 1.50
15-2
1350917C00
ref: 15-2
E18,E39
O RING
1350917C00
€ 4.50
16-1
0949124013
ref: 16-1
LH/RH
JET,MAIN(122.5)
0949124013
€ 7.00
16-2
0949125010
ref: 16-2
ML/MR
JET,MAIN(125)
0949125010
€ 8.50
16-3
0949124013
ref: 16-3
E18
JET,MAIN(122.5)
0949124013
€ 7.00
16-4
0949125011
ref: 16-4
E22
JET,MAIN(127.5)
0949125011
€ 10.00
16-5
0949123017
ref: 16-5
E39
JET,MAIN(117.5)
0949123017
€ 11.00
17
1333107D00
ref: 17
EXCEPT E18,E39
RING
1333107D00
€ 4.50
18-1
1337046E10
ref: 18-1
VALVE ASSEMBLY,NEEDLE
€ 69.50
18-2
1337046E20
ref: 18-2
E37,P37
VALVE ASSY,NEEDLE(NI)
1337046E20
€ 69.50
19-1
1324014D10
ref: 19-1
FLOAT ASSY
1324014D10
€ 65.50
19-2
1325012E00
ref: 19-2
E18,E39
FLOAT/NEEDLE VALVE ASSEMBLY
1325012E00
€ 79.50
20
1337446710
ref: 20
O RING
1337446710
€ 4.50
21
1337444080
ref: 21
O-RING,NEEDLE VALVE
1337444080
€ 6.00
22
0211275163
ref: 22
SCREW
0211275163
€ 2.50
23
1360105148
ref: 23
SCREW(5X14)
1360105148
€ 3.00
24
1350817C00
ref: 24
CAP
1350817C00
€ 4.50
25
1367105A40
ref: 25
CLIP
1367105A40
€ 4.00
26
1324713A00
ref: 26
SCREW,DRAIN
1324713A00
€ 5.50
27-1
1350241C00
ref: 27-1
COVER,DIAPHRAGM
1350241C00
€ 31.50
27-2
1350226D30
ref: 27-2
E18
COVER, DIAPHRAGM
€ 31.50
27-3
1350217000
ref: 27-3
E39
COVER, DIAPHRAGM
1350217000
€ 31.50
28
1341817C00
ref: 28
CAP,STARTER
1341817C00
€ 5.00
29
1341817C10
ref: 29
HOLDER,GUIDE
1341817C10
€ 14.00
30
1341726D00
ref: 30
SPRING
1341726D00
€ 5.50
31
1341105320
ref: 31
PLUNGER ASSY
1341105320
€ 18.00
32-1
1327947070
ref: 32-1
SCREW,PILOT
1327947070
€ 11.50
32-2
1327947070
ref: 32-2
E4
SCREW,PILOT
1327947070
€ 11.50
32-3
1327947070
ref: 32-3
E39
SCREW,PILOT
1327947070
€ 11.50
33
1326847070
ref: 33
SPRING
1326847070
€ 5.00
34
1329129900
ref: 34
WASHER
1329129900
€ 2.00
35
1329529900
ref: 35
O RING,PILOT AIR SCREW
1329529900
€ 4.00
36-1
0949324007
ref: 36-1
JET,AIR(1.2)
0949324007
€ 13.50
36-2
0949325003
ref: 36-2
E18
JET,AIR(1.25)
0949325003
€ 11.00
36-3
0949327002
ref: 36-3
E39
JET,AIR(1.35)
0949327002
€ 15.50
37
1343247090
ref: 37
WASHER
1343247090
€ 2.50
38-1
1338246E00
ref: 38-1
WASHER
1338246E00
€ 3.00
38-2
1338244030
ref: 38-2
E18,E39
WASHER
1338244030
€ 3.50
39
0935250901600
ref: 39
MR,E18,E39
HOSE(5X9X600)
0935250901600
€ 6.50
40
1368548B00
ref: 40
MR,E18,E39
NIPPLE
1368548B00
€ 9.00
41
0935250903600
ref: 41
MR,E18,E39
HOSE(5X9X600)
0935250903600
€ 28.50
50
1329529900
ref: 50
O RING,PILOT AIR SCREW
1329529900
€ 4.00
51-1
0949324007
ref: 51-1
JET,AIR(1.2)
0949324007
€ 13.50
51-2
0949323002
ref: 51-2
E2,E4,E15,E17,E21,E2
JET,AIR(1.15)
0949323002
€ 9.00
51-3
0949326004
ref: 51-3
E18,E39
JET,AIR(1.3)
0949326004
€ 14.50
52
1343247090
ref: 52
WASHER
1343247090
€ 2.50
53
1338246E00
ref: 53
WASHER
1338246E00
€ 3.00
54
0935250901600
ref: 54
MR,E18,E39,-13683-48
HOSE(5X9X600)
0935250901600
€ 6.50
55
1368548B00
ref: 55
MR,E18,E39
NIPPLE
1368548B00
€ 9.00
56
0935250903600
ref: 56
MR,E18,E39,-13687-17
HOSE(5X9X600)
0935250903600
€ 28.50
