CRANKCASE COVER

GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

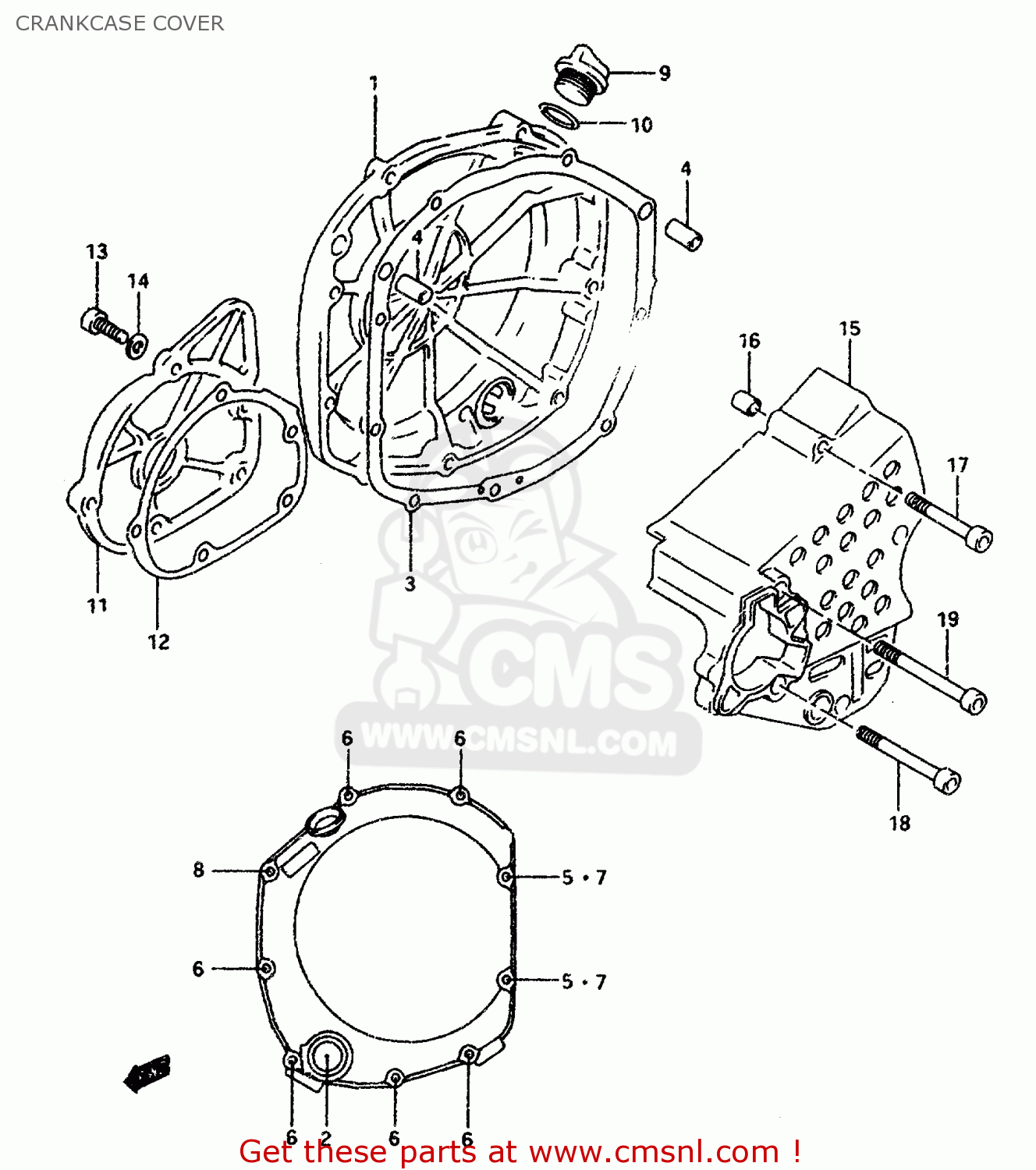

Crankcase cover diagram GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

CRANKCASE COVER GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CRANKCASE COVER GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
CRANKCASE COVER GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1134046E00
ref: 1-1
MODEL P/R
COVER,CLUTCH
€ 151.50
1-2
1134031E01
ref: 1-2
MODEL S/T/V
COVER,CLUTCH
1134031E01
€ 151.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148217E00
ref: 3
GASKET,CL COVER (NAS)
1148217E00
€ 33.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6-1
0713006255
ref: 6-1
MODEL P
BOLT
0713006255
€ 3.00
6-2
0713006253
ref: 6-2
MODEL R/S/T/V
BOLT,CL.COVER
0713006253
€ 3.00
7-1
0711006305
ref: 7-1
MODEL P
BOLT
0711006305
€ 3.00
7-2
0713006303
ref: 7-2
MODEL R/S/T/V
BOLT
0713006303
€ 3.00
8-1
0713006355
ref: 8-1
MODEL P
BOLT
€ 3.50
8-2
0713006353
ref: 8-2
MODEL R/S/T/V
BOLT
€ 3.50
9-1
0925920012
ref: 9-1
~E.NO.111149
PLUG
0925920012
€ 6.50
9-2
0925920008
ref: 9-2
E.NO.111150~
PLUG
0925920008
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11-1
1138117E00
ref: 11-1
MODEL P
CAP
1138117E00
€ 80.50
11-2
1138131E00
ref: 11-2
MODEL R/S/T/V
COVER,SIGNAL GENERATOR
1138131E00
€ 80.50
12
1149117E01
ref: 12
GASKET,SIGNAL GEN COVER
1149117E01
€ 20.50
13-1
0910606059
ref: 13-1
MODEL P
BOLT
0910606059
€ 3.00
13-2
0910606082
ref: 13-2
MODEL R/S/T/V
BOLT(6X22)
0910606082
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15-1
1136146E00
ref: 15-1
MODEL P/R
COVER,ENGINE SPROCKET
1136146E00
€ 158.00
15-2
1136146E10
ref: 15-2
MODEL S/T/V
COVER,ENGINE SPROCKET
1136146E10
€ 124.00
16
0421109129
ref: 16
PIN
0421109129
€ 2.00
17-1
0711006555
ref: 17-1
MODEL P
BOLT
€ 2.50
17-2
0713006553
ref: 17-2
MODEL R/S/T/V
BOLT
0713006553
€ 2.50
18-1
0711006705
ref: 18-1
MODEL P
BOLT
€ 4.00
18-2
0713006703
ref: 18-2
MODEL R
BOLT
0713006703
€ 4.00
18-3
0713006703
ref: 18-3
MODEL S/T/V
BOLT
0713006703
€ 4.00
19-1
0711006805
ref: 19-1
MODEL P
BOLT
€ 3.00
19-2
0713006803
ref: 19-2
MODEL R/S/T/V
BOLT
0713006803
€ 3.00
