Buy Suzuki GSXR Parts Online


RADIATOR

GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

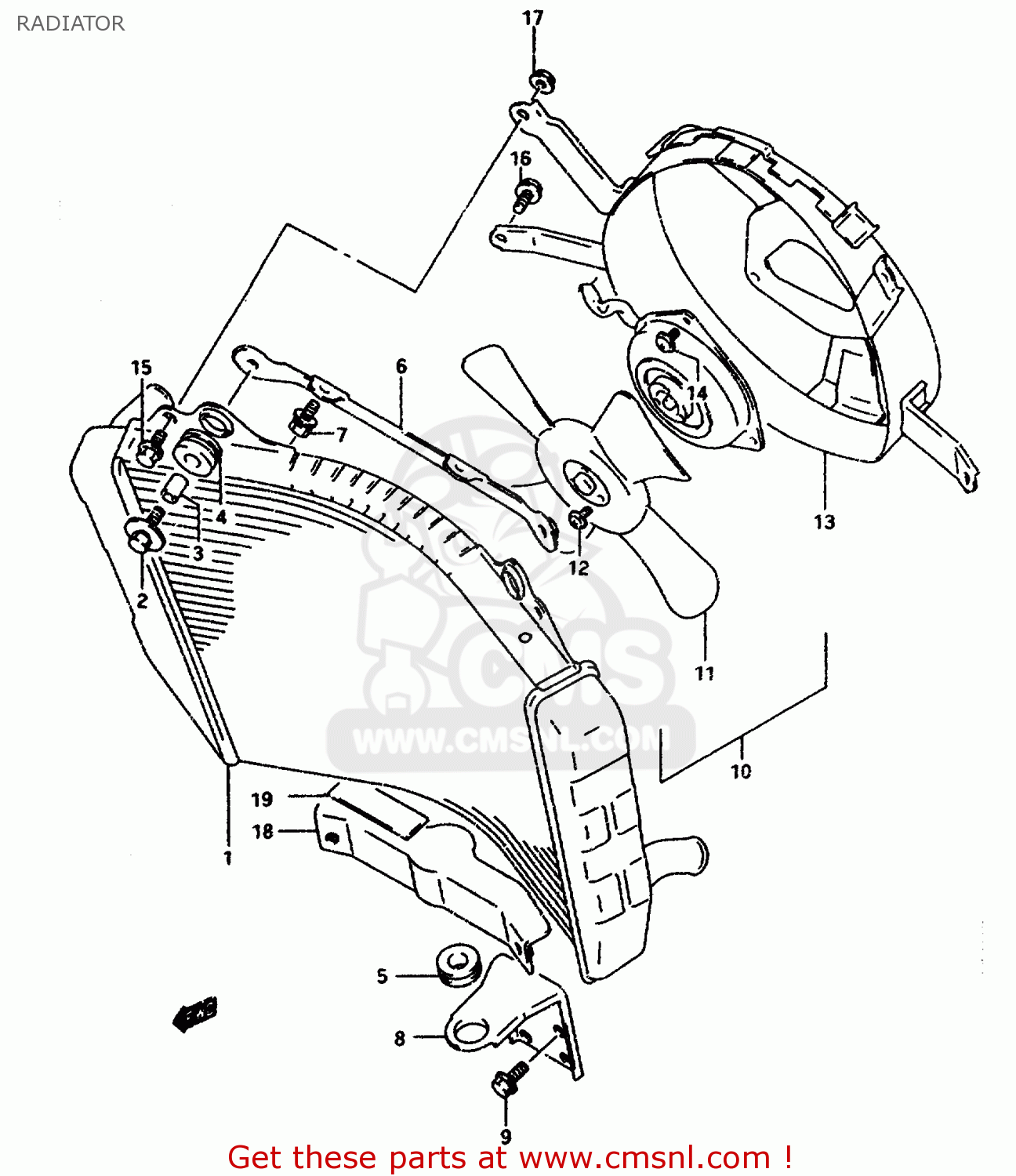

Radiator diagram GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)

RADIATOR GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
RADIATOR GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
RADIATOR GSXR1100W 1995 (S) (E02 E04 E18 E22 E24 E25 E34 E37 E39)
prices are in EUR
ref
part #
description
quantity
1
1771046E00
ref: 1
RADIATOR ASSY,WATER
€ 838.50
2
0911606147
ref: 2
BOLT(6X25)
0911606147
€ 4.00
3
0918007004
ref: 3
SPACER(6.5X10.5X12)
0918007004
€ 2.50
4
1778719A00
ref: 4
CUSHION,RADIATOR LWR
1778719A00
€ 3.50
5
0932012053
ref: 5
CUSHION
0932012053
€ 7.50
6
1774017E00
ref: 6
BRACKET COMP,RADIATOR
1774017E00
€ 20.00
7-1
0117706125
ref: 7-1
MODEL P
BOLT
0117706125
€ 2.00
7-2
0158006163
ref: 7-2
MODEL R/S/T/V
BOLT
0158006163
€ 2.50
8
1775046E00
ref: 8
BRACKET,RADIATOR,LOWER
€ 10.50
9-1
0117406165
ref: 9-1
MODEL P
BOLT
€ 2.50
9-2
0158006203
ref: 9-2
MODEL R/S/T/V
BOLT, REAR
€ 2.50
10-1
1780046E01
ref: 10-1
MODEL P/R,-17800-46E
FAN ASSEMBLY,RADIATOR
€ 487.00
10-2
1780046E02
ref: 10-2
MODEL S/T/V
FAN ASSY,RADIATOR
1780046E02
€ 487.00
11
1782017E00
ref: 11
FAN
1782017E00
€ 48.50
12
0211204063
ref: 12
-17801-05A00
SCREW 4X6
0211204063
€ 2.00
13
1777046E00
ref: 13
SHROUD
€ 81.50
14
0214205083
ref: 14
-17801-45C00
SCREW
0214205083
€ 2.00
15-1
0151706125
ref: 15-1
MODEL P
BOLT 6X12
0151706125
€ 2.50
15-2
0155006123
ref: 15-2
MODEL R/S/T/V
BOLT
0155006123
€ 2.50
16-1
0151706108
ref: 16-1
MODEL P
BOLT
0151706108
€ 2.50
16-2
0155006103
ref: 16-2
MODEL P
BOLT
0155006103
€ 2.50
17-1
0831616064
ref: 17-1
MODEL P
NUT 6MM
0831616064
€ 2.50
17-2
0831610063
ref: 17-2
MODEL R/S/T/V
NUT
0831610063
€ 2.50
18
1776046E00
ref: 18
BRACKET,RADIATOR,LOWER,NO
1776046E00
€ 19.50
19-1
9447617E00
ref: 19-1
MODEL P/R/S
CUSHION,RADIATOR LWR
€ 6.00
19-2
5155315D40
ref: 19-2
MODEL T/V
CUSHION(50X42X2.0)
5155315D40
€ 6.00
