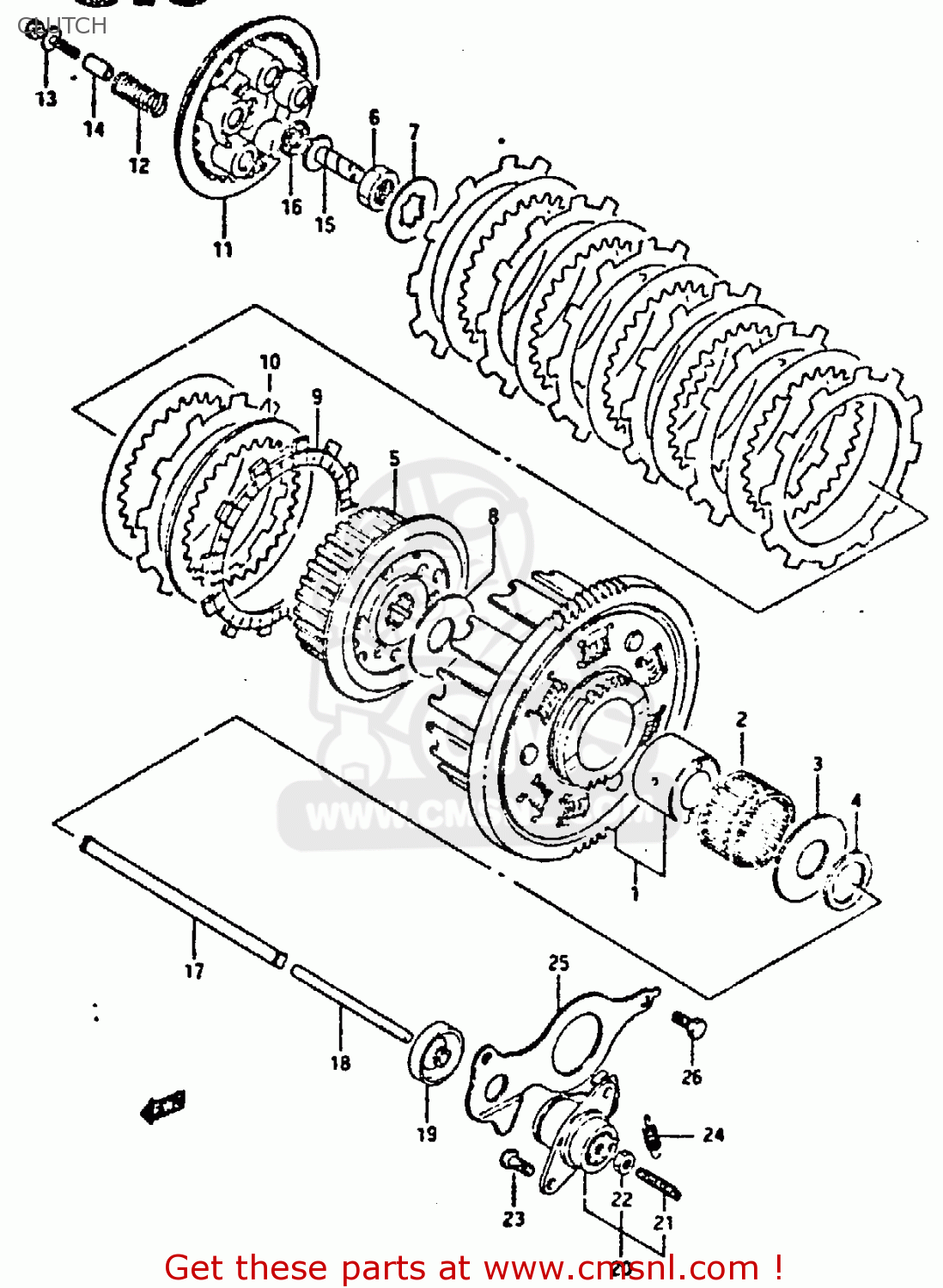

CLUTCH

ref

part #

description

quantity

1

2120030830
ref: 1
1.0

PRIMARY DRIVEN

€ 283.00

2

0926337001
ref: 2
1.0

BEARING(37X42X27)

€ 22.50

3

0916022045
ref: 3

WASHER,22X50X2.5

€ 6.00

4

0916022032
ref: 4

WASHER(22X32X3)

€ 4.00

5

2141030B01
ref: 5
1.0

HUB,CLUTCH SLEEVE

€ 49.50

6

0914020006
ref: 6

NUT

€ 4.00

7

0916720006
ref: 7

WASHER,LOCK

€ 3.00

8

0916020051
ref: 8

WASHER(20X50X2)

€ 8.50

9

2144113A00
ref: 9
W0.9

PLATE,CLUTCH DRIVE (NAS)

€ 8.50

10

2145128000
ref: 10
0.9

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

11

2146204A00
ref: 11
0.9

DISC,CLUTCH PRESSURE

€ 48.00

12

0944015016
ref: 12

SPRING

€ 4.50

13

0911605015
ref: 13

BOLT(5X40)

€ 3.00

14

0918005026
ref: 14

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

2312111401
ref: 15
0.9

ROD,CLUTCH RELEASE

€ 14.00

16

0926310002
ref: 16
0.9

BEARING(10X22X2.8)

€ 8.50

17

2311033400
ref: 17
0.9

ROD,CLUTCH PUSH

€ 25.00

18

2311108A00
ref: 18
0.3

ROD,CLUTCH PUSH,L

€ 15.50

19

0928506018
ref: 19
0.6

SEAL,OIL(6X34X7.5)

€ 12.00

20

2320030B01
ref: 20
0.4

SCREW ASSY,CLUTCH RELEASE

€ 53.50

21

0913406010
ref: 21

SCREW(6X25)

€ 3.00

22

0831022067
ref: 22

NUT 6MM

€ 2.50

23

0211206128
ref: 23

SCREW 6X12

€ 2.00

24

0944309030
ref: 24

SPRING

€ 3.00

25

2311730B00
ref: 25
0.5

RETAINER,PUSH ROD OIL SEAL

€ 7.00

26

0110706127
ref: 26

BOLT

€ 2.00

all assemblies
