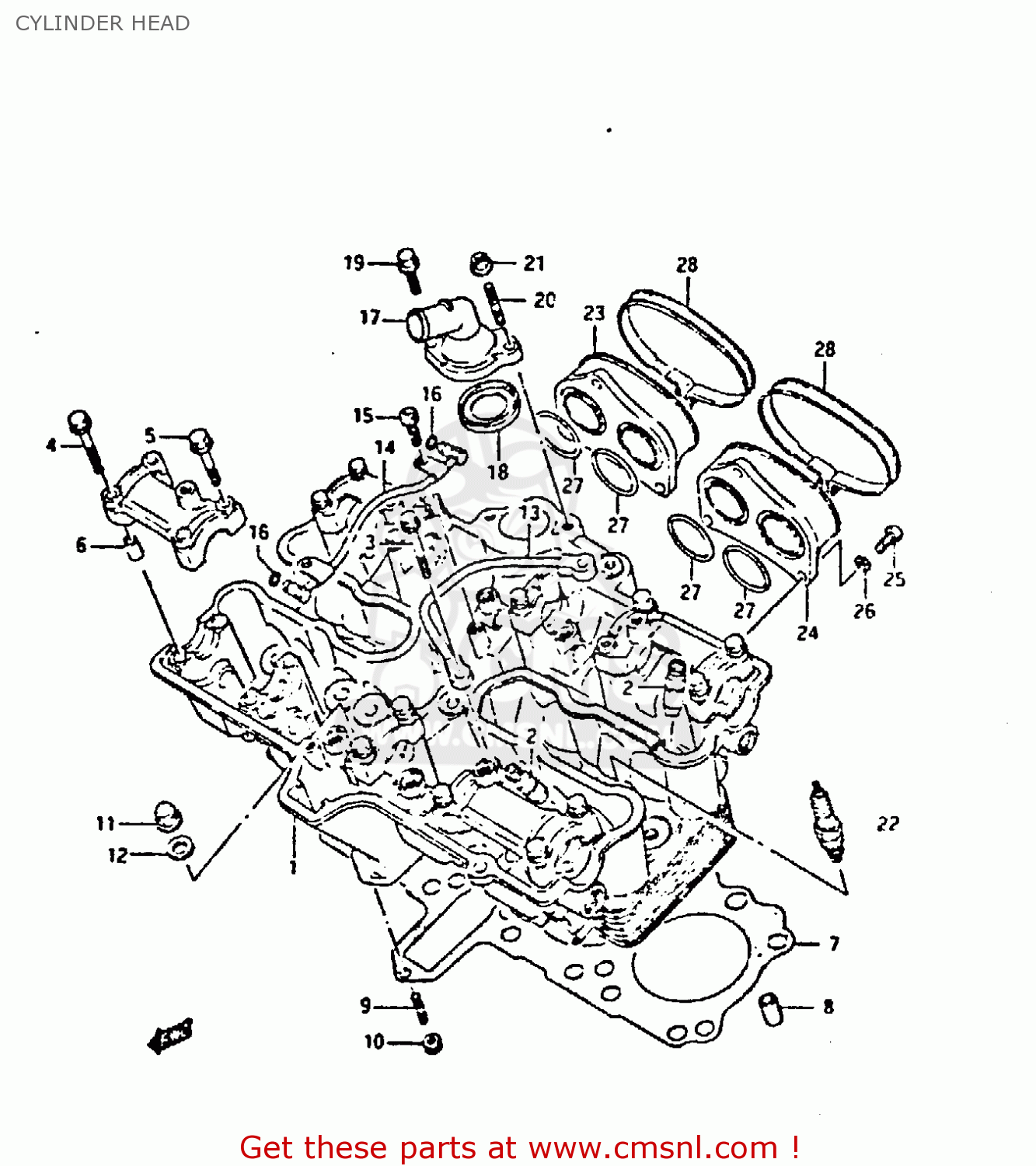

CYLINDER HEAD

ref

part #

description

quantity

1

1110030B03
ref: 1
6.9

KOP. CYLINDER

€ 1,009.00

2

1111533473
ref: 2
4.8 A(0.2)

GUIDE,VALVE

€ 12.50

3

0910306013
ref: 3

BOLT

€ 2.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0910306108
ref: 5

BOLT(6X35)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114130B00
ref: 7
W4.3

GASKET,CYLINDER HEAD

€ 38.00

8

0421111189
ref: 8

PIN

€ 2.00

9

0142106165
ref: 9

STUD 6X16

€ 2.00

10

0831616064
ref: 10

NUT 6MM

€ 2.50

11

0915908049
ref: 11

NUT

€ 7.00

12

0916808021
ref: 12

GASKET(8.5X17X2.3) (NAS)

€ 3.00

13

1296130B00
ref: 13
1.7

PIPE,OIL CYLINDER HEAD,L

€ 43.00

14

1296130B10
ref: 14
2.6

PIPE,OIL CYLINDER HEAD

€ 17.00

15

0711006126
ref: 15

BOLT,STRANGER

€ 2.00

16

0928005004
ref: 16

O RING(D:1.9,ID:4.8)

€ 2.00

17

1766130B00
ref: 17
0.6

THERMOSTAT COVER

€ 75.50

18

1766430B00
ref: 18
0.6

SEAL,THERMOSTAT COVER

€ 41.00

19

0151706205
ref: 19

BOLT

€ 2.50

20

0910806087
ref: 20

BOLT.STUD

€ 2.00

21

0831616064
ref: 21

NUT 6MM

€ 2.50

22-1

0948200373
ref: 22-1
W0.4DAI<br>#

SPARK PLUG NGK CR8HSA

€ 5.50

22-2

0948200374111
ref: 22-2
W0.4DAI<br>#

BOUGIE U24FS-C

€ 3.00

23

1311033410
ref: 23
0.7 A(0.1)

INLAATRUBBER. R

€ 46.50

24

1312033410
ref: 24
0.7 A(0.1)

INLAATRUBBER. L

€ 44.00

25

0211206164
ref: 25

SCREW

€ 2.00

26

0832121064
ref: 26

WASHER,LOCK

€ 2.00

27

0928032006
ref: 27

O RING(D:2.4,ID:31.7)

€ 2.50

28

0940248401
ref: 28

CLAMP

€ 6.50

all assemblies
