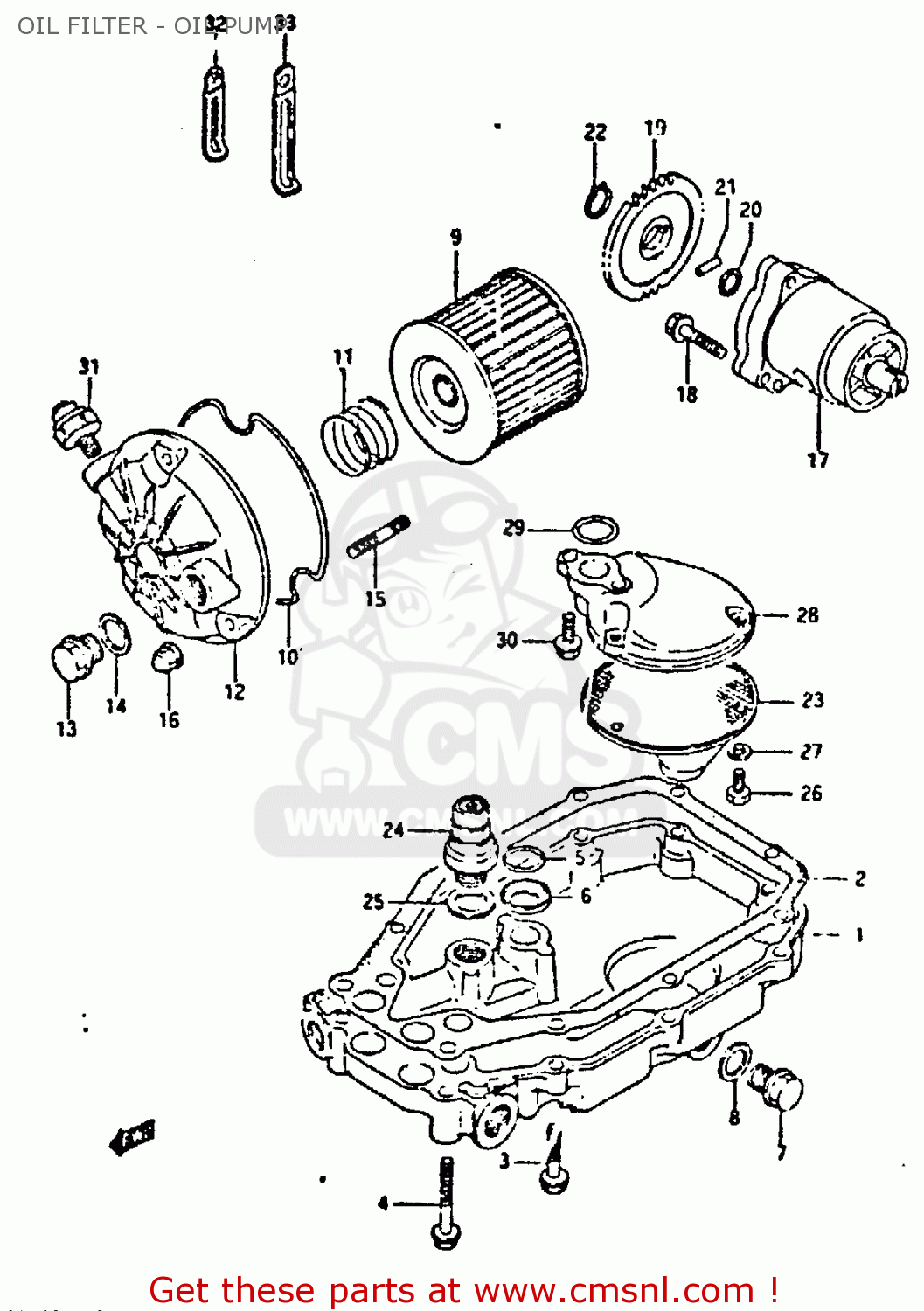

OIL FILTER - OIL PUMP - GSXR400 1987 (H) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

1151130B02
ref: 1
1.8

PAN,OIL

€ 50.50

2

1148930B01
ref: 2
W1.8

PAKKING.OLIEPAN

€ 7.50

3

0151706258
ref: 3

BOLT

€ 2.50

4

0151706408
ref: 4

BOLT

€ 2.50

5

0928016008
ref: 5

O RING(D:3.2,ID:15.8)

€ 1.50

6

1652930B00
ref: 6

GASKET,OIL OUTLET (NAS)

€ 5.00

7

0924714001
ref: 7

PLUG

€ 5.00

8

0916014004
ref: 8

GASKET, STOPPER HOUSING

€ 0.00

9

1651045040
ref: 9
W0.3

FILTER ASSY,ENGINE OIL

€ 7.50

10

1651845000
ref: 10
0.3

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

0944032004
ref: 11

SPRING

€ 13.50

12

1651230B01
ref: 12
0.3

CAP.OIL FILTER

€ 24.50

13

0924714015
ref: 13

PLUG(14X12)

€ 2.50

14

0916814004
ref: 14

GASKET(14X19.2X2) (NAS)

€ 2.50

15

0142106205
ref: 15

STUD BOLT L:20

€ 2.50

16

0831321065
ref: 16

NUT

€ 2.00

17

1640030B00
ref: 17
1.2

PUMP ASSY,ENGINE OIL

€ 114.50

18

0151706307
ref: 18

BOLT

€ 2.00

19

1633130B00
ref: 19
1.0

GEAR,OIL PUMP DRIVEN

€ 36.00

20

0822112205
ref: 20

SHIM

€ 1.50

21

0926105006
ref: 21

PIN(5X18)

€ 1.50

22

0833131128
ref: 22

CIRCLIP

€ 2.00

23

1632030B01
ref: 23
1.8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

24

1644027A00
ref: 24

VALVE ASSEMBLY,OIL RELIEF

€ 42.00

25

0916816002
ref: 25

GASKET(16X22X2) (NAS)

€ 2.00

26

0110706127
ref: 26

BOLT

€ 2.00

27

0832121067
ref: 27

WASHER,LOCK

€ 2.50

28

1652530B00
ref: 28
1.8

PROTECTOR,OIL STRAINER

€ 17.00

29

0928016008
ref: 29
1.8

O RING(D:3.2,ID:15.8)

€ 1.50

30

0151706208
ref: 30

BOLT,REAR

€ 2.50

31

37B2033200
ref: 31
0.3<br>#

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

32

0940406422
ref: 32

CLAMP

€ 2.50

33

0940408402
ref: 33

CLAMP

€ 3.50

OIL FILTER - OIL PUMP

all assemblies
