AIR CLEANER
GSXR600 2002 (K2) USA (E03)

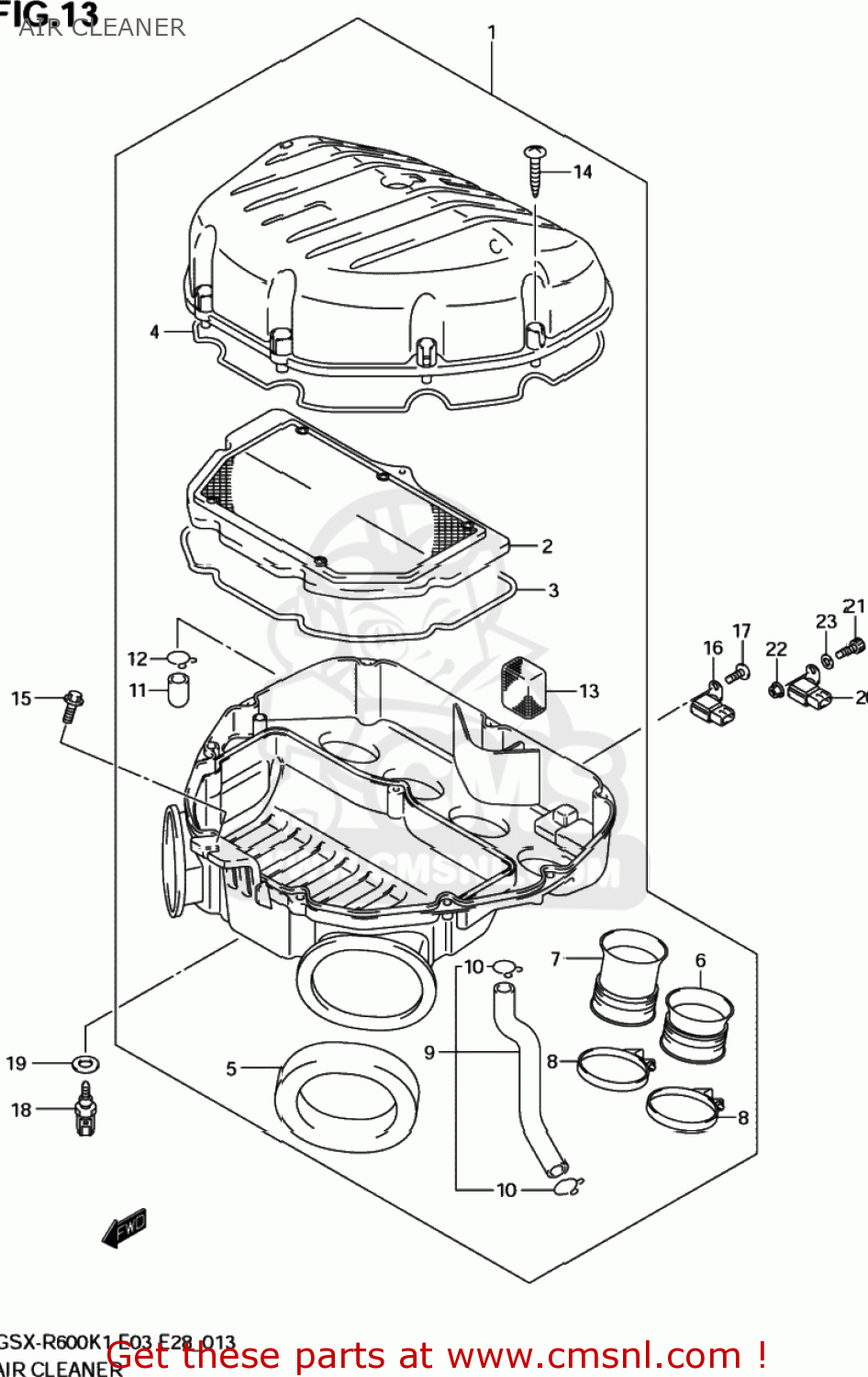

Air cleaner diagram GSXR600 2002 (K2) USA (E03)
AIR CLEANER GSXR600 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370039F00
ref: 1
CLEANER ASSY,A
€ 251.50
2
1378035F00
ref: 2
FILTER ASSY,AIR CLEANER
€ 32.50
3
1375635F00
ref: 3
GASKET,CASE (NAS)
€ 5.50
4
1374635F00
ref: 4
GASKET,CAP (NAS)
€ 5.00
5
1373624F01
ref: 5
13736-01H00
CUSHION,DUCT
€ 9.00
6
1388139F00
ref: 6
TUBE,OUTLET A
€ 26.00
7
1388239F00
ref: 7
TUBE,OUTLET B
€ 22.00
8
0940252208
ref: 8
CLAMP
€ 5.50
9
1385039F00
ref: 9
TUBE,BREATHER
€ 21.00
10
0940114301
ref: 10
CLIP
€ 2.00
11
1385941B10
ref: 11
PLUG
€ 5.50
12
0940114301
ref: 12
CLIP
€ 2.00
13
1378824F00
ref: 13
FILTER,BREATHER
€ 14.50
14
1383135F00
ref: 14
SCREW
€ 2.00
15
0911606130
ref: 15
BOLT(6X16)
€ 2.00
16
1562035F00
ref: 16
SENSOR,BOOST
€ 252.50
17
0214206103
ref: 17
02142-0610A
SCREW 6X10
€ 2.00
18
1365061B00
ref: 18
SENSOR,WATER TEMP
€ 60.00
19
0916812017
ref: 19
GASKET(12X17X1) (NAS)
€ 2.00
20
1562035F00
ref: 20
SENSOR,BOOST
€ 252.50
21
0713006163
ref: 21
07130-0616B
BOLT,OIL FILLE
€ 3.00
22
0831931063
ref: 22
08319-3106A
NUT
€ 2.50
23
0916006077
ref: 23
WASHER(6.5X20X1.2)
€ 2.00
