OIL PAN - OIL PUMP
GSXR600 2002 (K2) USA (E03)

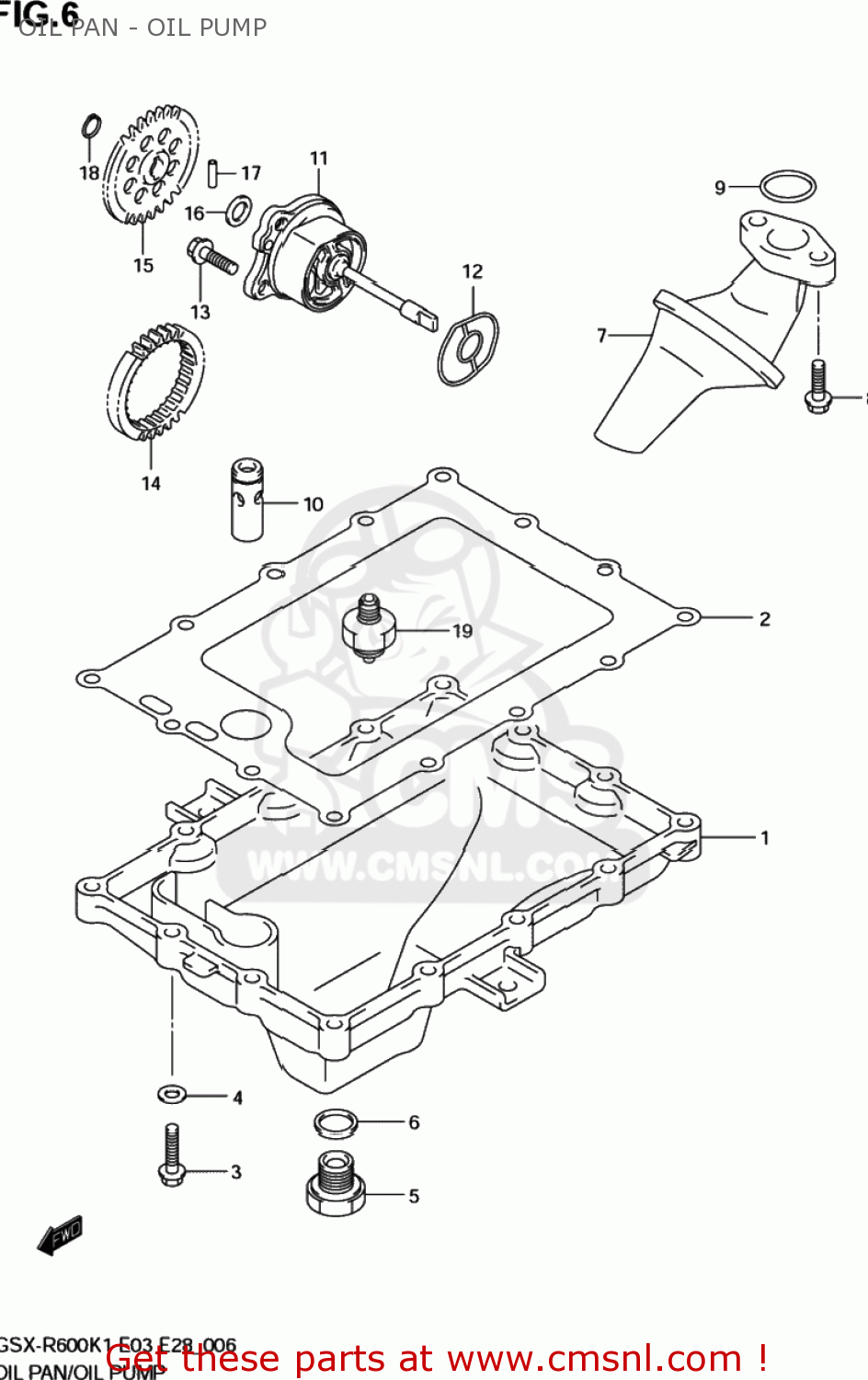

Oil pan - oil pump diagram GSXR600 2002 (K2) USA (E03)
OIL PAN - OIL PUMP GSXR600 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151135F00
ref: 1-1
11511-35F01
PAN,OIL
€ 200.00
1-2
1151135F01
ref: 1-2
PAN,OIL
€ 200.00
2
1148935F00
ref: 2
GASKET,OIL PAN (NAS)
€ 13.00
3
0910306221
ref: 3
09103-06250
BOLT(6X25)
€ 2.50
4
0916806023
ref: 4
GASKET(5.8X13X1.2) (NAS)
€ 2.00
5
0924714036
ref: 5
PLUG(14X20)
€ 5.50
6
0916814002
ref: 6
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
7
1652035F00
ref: 7
STRAINER ASSY,ENGINE OIL
€ 27.00
8
0155006203
ref: 8
01550-0620A
BOLT
€ 2.50
9
0928019008
ref: 9
O RING(D:2.62,ID:20.3)
€ 5.50
10
1644024F00
ref: 10
VALVE ASSY,OIL RELIEF(7K)
€ 41.50
11
1640035F00
ref: 11
PUMP ASSY,ENGINE OIL
€ 155.50
12
1649135F00
ref: 12
O RING,OIL PUMP
€ 4.50
13
0154706203
ref: 13
01547-0620B
SCREW
€ 2.50
14-1
1632135F00
ref: 14-1
16321-35F01
GEAR,OIL PUMP DRIVE
€ 36.50
14-2
1632135F01
ref: 14-2
GEAR,OIL PUMP DRIVE
€ 36.50
15
1633135F00
ref: 15
GEAR,OIL PUMP DRIVEN
€ 37.50
16
0918110158
ref: 16
SHIM(10X18X0.5)
€ 2.50
17
0926104009
ref: 17
PIN(4X15.8)
€ 1.50
18
0833131106
ref: 18
08331-3110A
CIRCLIP,10MM
€ 2.00
19
3782033D10
ref: 19
SWITCH ASSY,OIL PRESSURE
€ 29.00
