FRONT FENDER (GSX-R600ZK3)

GSXR600 2002 (K2) USA (E03)

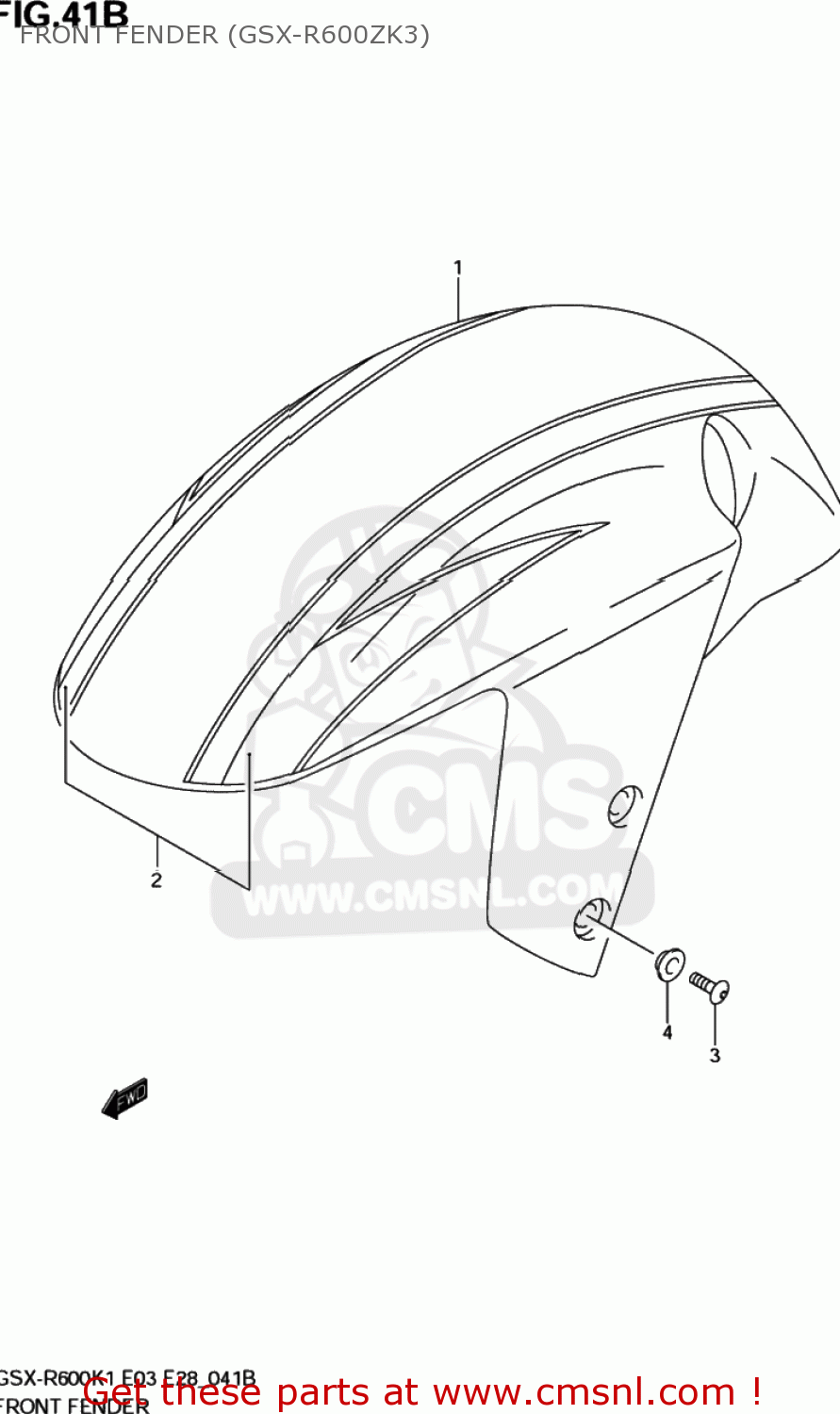

Front fender (gsx-r600zk3) diagram GSXR600 2002 (K2) USA (E03)

FRONT FENDER (GSX-R600ZK3) GSXR600 2002 (K2) USA (E03)

FRONT FENDER (GSX-R600ZK3) GSXR600 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5310039FR0LS6
ref: 1

FENDER ASSY,FR

€ 337.50

2

6815539FA0MH2
ref: 2

TAPE,FR FENDER

€ 44.50

3

0913906030
ref: 3

SCREW(6X16)

€ 3.50

4

0916106021
ref: 4

WASHER(6.3X16X1.5)

€ 2.50
