FRONT FENDER

GSXR600 2003 (K3) USA (E03)

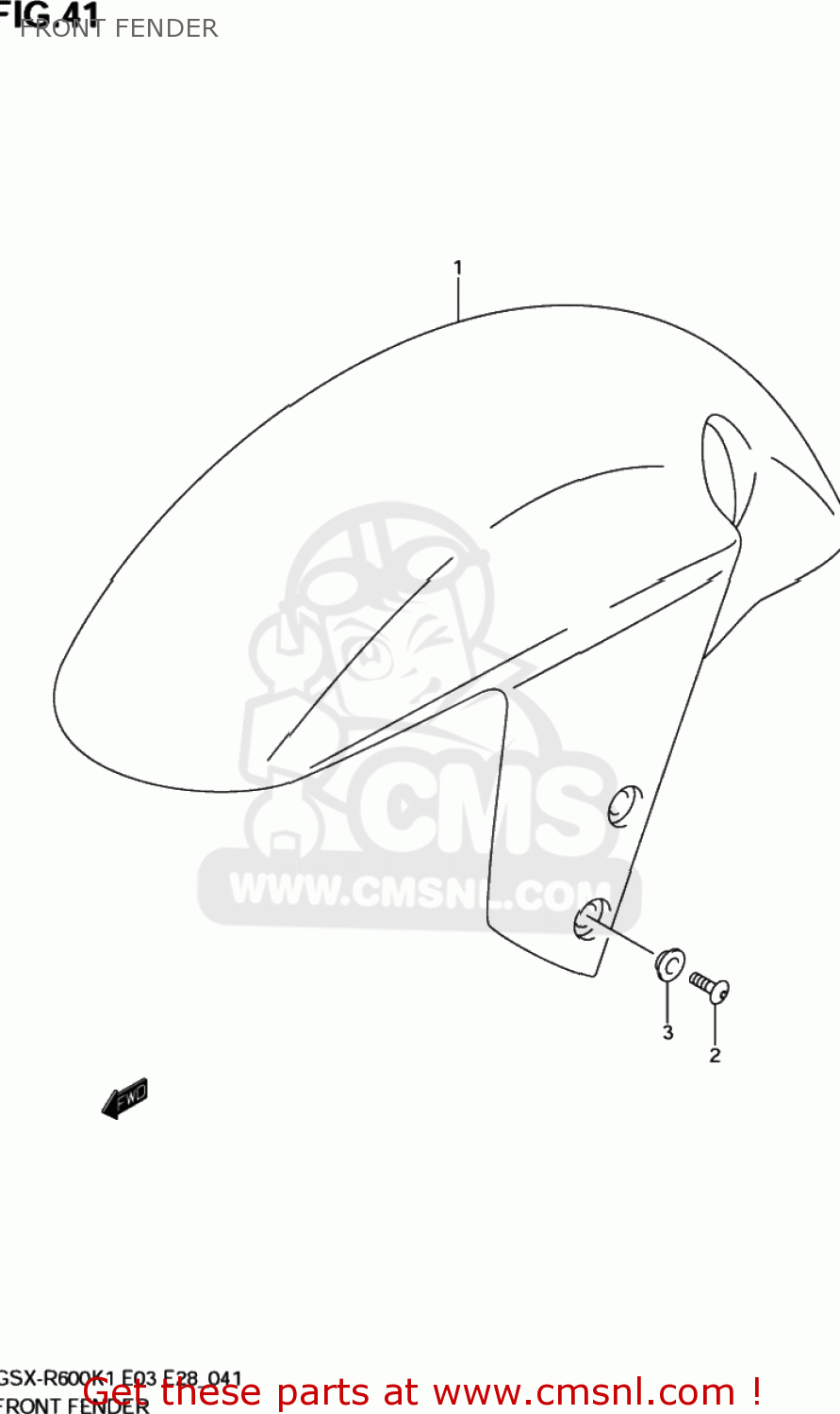

Front fender diagram GSXR600 2003 (K3) USA (E03)

FRONT FENDER GSXR600 2003 (K3) USA (E03)

FRONT FENDER GSXR600 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311035F00019
ref: 1-1

FENDER,FR

€ 240.50

1-2

5311035F00Y7L
ref: 1-2

FENDER,FR

€ 240.50

2

0913906030
ref: 2

SCREW(6X16)

€ 3.50

3

0916106021
ref: 3

WASHER(6.3X16X1.5)

€ 2.50
