SEAT TAIL BOX (MODEL K1)

GSXR600 2003 (K3) USA (E03)

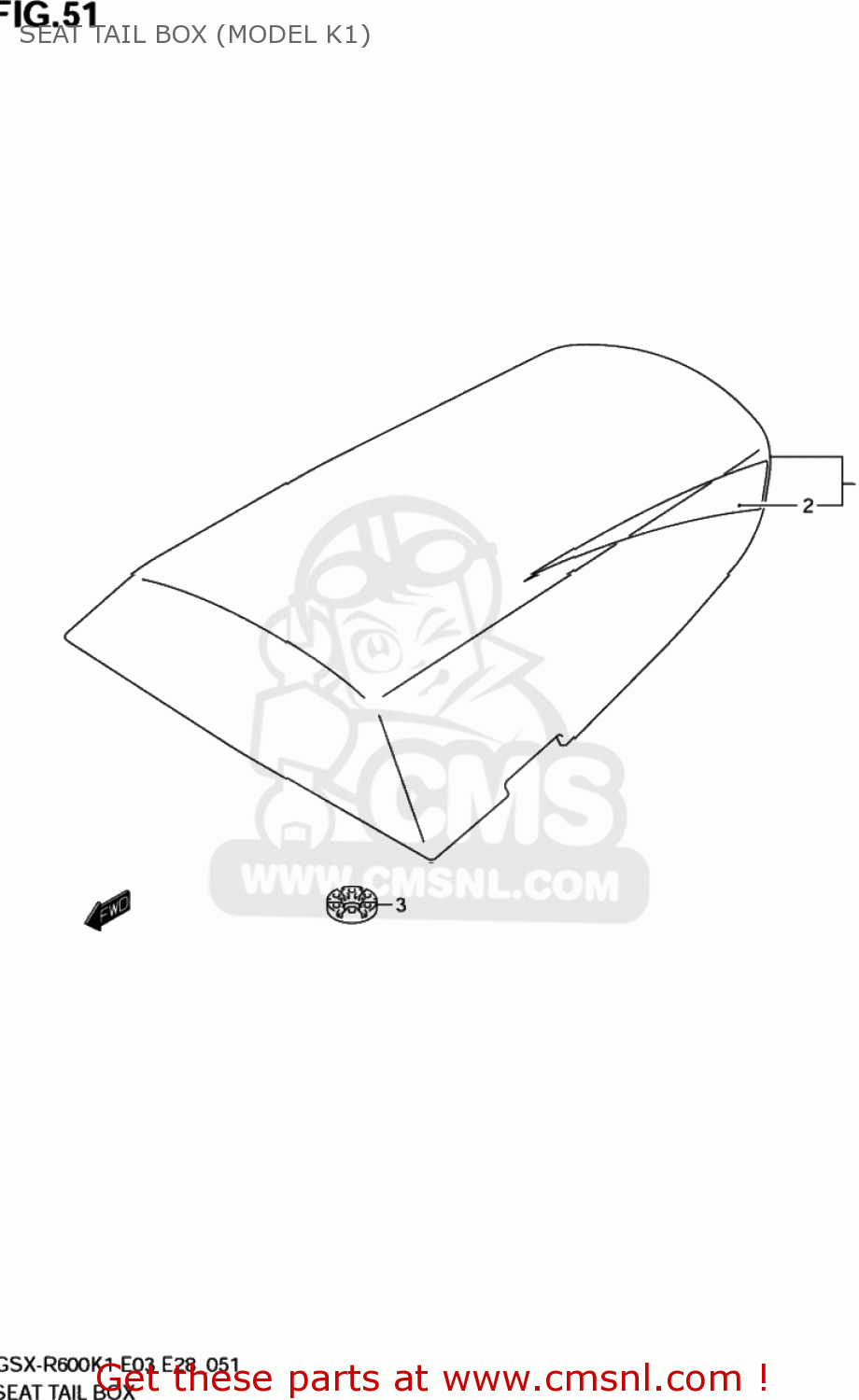

Seat tail box (model k1) diagram GSXR600 2003 (K3) USA (E03)

SEAT TAIL BOX (MODEL K1) GSXR600 2003 (K3) USA (E03)

SEAT TAIL BOX (MODEL K1) GSXR600 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550039F000JW
ref: 1-1
45500-39F20-0JW

BOX ASSY,SEAT

€ 153.50

1-2

4550039F00Y9H
ref: 1-2
45500-39F20-Y9H

BOX ASSY,SEAT

€ 157.00

2-1

6816039F00019
ref: 2-1

TAPE SET,BOX SEAT TAIL(BLACK)

€ 21.50

2-2

6816039F00Y7L
ref: 2-2

TAPE SET,BOX SEAT TAIL(BLACK)

€ 25.00

3

4521331300
ref: 3

CUSHION

€ 1.50
