GSXR750 1989 (K) USA (E03)

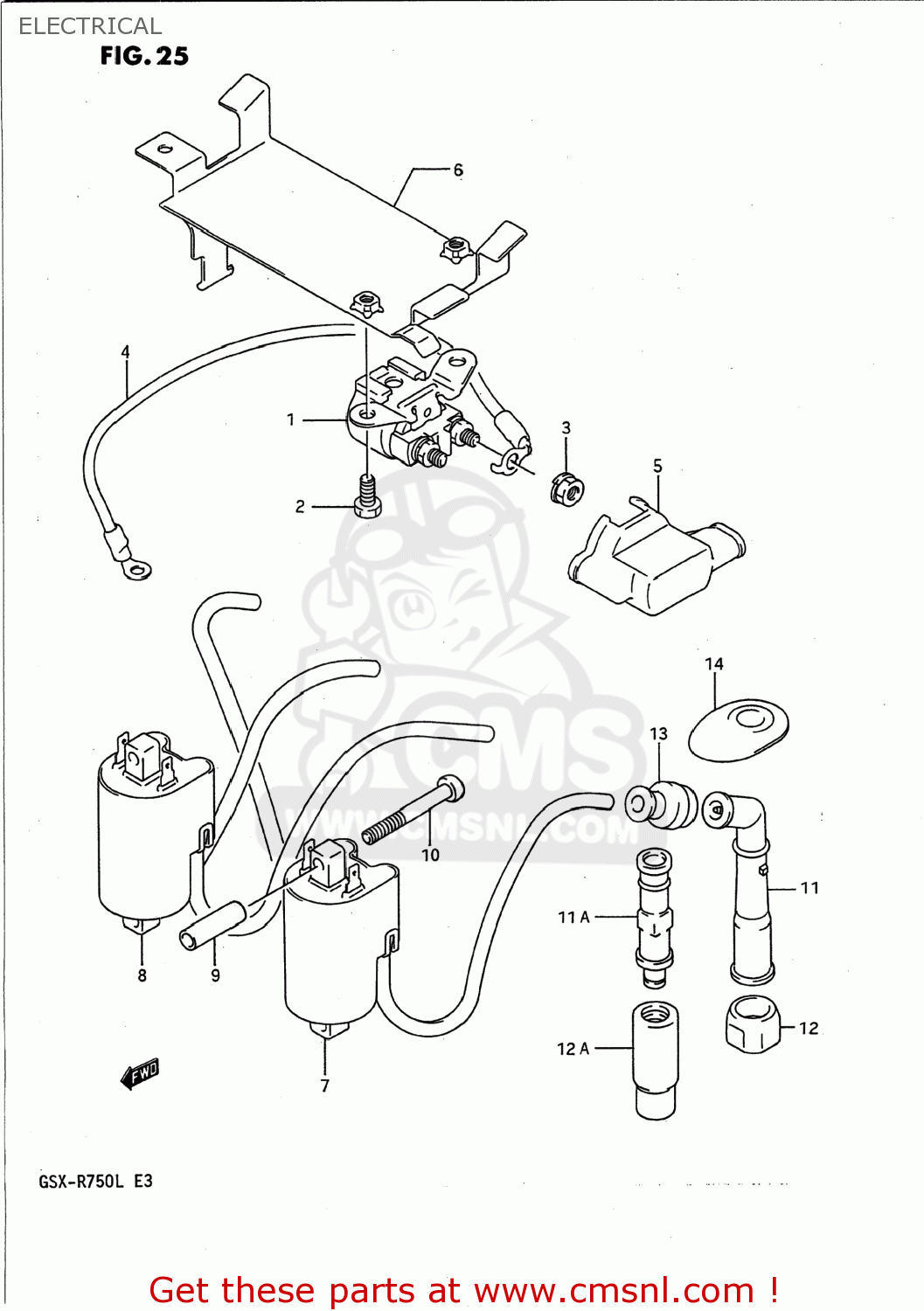

Electrical diagram GSXR750 1989 (K) USA (E03)
ELECTRICAL GSXR750 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2-1
0912806004
ref: 2-1
09128-06044
SCREW(6X10)
€ 1.50
2-2
0912806013
ref: 2-2
SCREW(6X8)
€ 1.50
3
0836135066
ref: 3
08361-3506A
NUT
€ 2.00
4
3385017C00
ref: 4
33810-41C00
WIRE,STARTER MOTOR LEAD
€ 29.00
5
3186119C00
ref: 5
31861-10D10
COVER,RELAY ASSEMBLY
€ 6.50
6
4741017C00
ref: 6
HOLDER COMP,ELECTRONIC PARTS
€ 15.00
7
3341017C00
ref: 7
33410-17C01
COIL ASSEMBLY,IGNITION (1-4)
€ 199.00
8-1
3342017C00
ref: 8-1
33410-17C01
COIL ASSEMBLY,IGNITION (2-3)
€ 199.00
8-2
3342017C10
ref: 8-2
33410-17C01
COIL ASSEMBLY,IGNITION
€ 199.00
9-1
0918006179
ref: 9-1
SPACER(6.4X10X32)
€ 5.00
9-1
0918006179
ref: 9-1
SPACER(6.4X10X32)
€ 5.00
9-2
0918006146
ref: 9-2
09180-06146-XC0
SPACER (6.5X10.5X31.7)
€ 3.50
9-2
0918006146
ref: 9-2
09180-06146-XC0
SPACER (6.5X10.5X31.7)
€ 3.50
10
0211206556
ref: 10
02112-0655B
SCREW
€ 2.00
11
3351048B10
ref: 11
CAP,SPARK PLUG
€ 29.50
11A
3351007D00
ref: 11A
CAP,SPARK PLUG
€ 42.00
12
3354148B00
ref: 12
33541-23E01
SEAL,SPARK PLUG
€ 7.00
12A
3354120C00
ref: 12A
SEAL,SPARK PLUG
€ 19.50
13
3354238B00
ref: 13
SEAL,HIGH TENSION CORD
€ 4.50
14
3354348B00
ref: 14
COVER,SPARK PLUG CAP
€ 12.50
