SPEEDOMETER (MODEL L)

GSXR750 1989 (K) USA (E03)

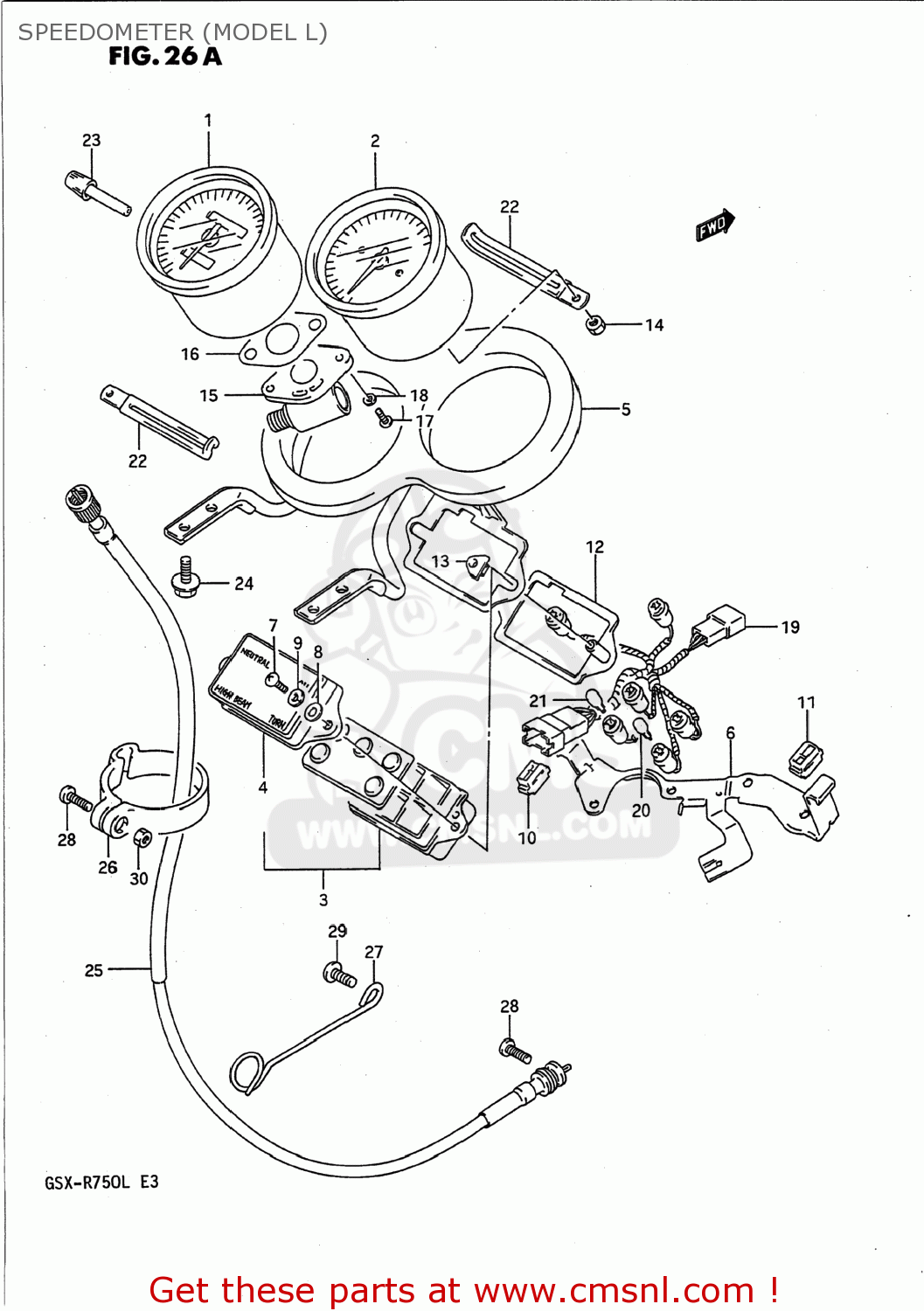

Speedometer (model l) diagram GSXR750 1989 (K) USA (E03)

SPEEDOMETER (MODEL L) GSXR750 1989 (K) USA (E03)

SPEEDOMETER (MODEL L) GSXR750 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3411017C30
ref: 1
34110-41C31

SPEEDOMETER ASSEMBLY

€ 303.50

2

3421017C80
ref: 2
34210-18D00

TACHOMETER

€ 397.50

3

3638032C20
ref: 3
36380-17C20

BOX ASSEMBLY,PILOT LAMP

€ 64.00

4

3638132C20
ref: 4
36381-32C10

LENS,BOX

€ 13.00

5

3495017C80
ref: 5

PLATE,SETTING

€ 132.50

6

3411117C00
ref: 6

BRACKET

€ 63.00

7

0211204124
ref: 7
02112-0412A

SCREW

€ 1.50

8

0832221045
ref: 8
08322-0104A

WASHER

€ 5.00

9

0832121047
ref: 9
08321-0104A

WASHER,LOCK 4M

€ 2.00

10

3418917C00
ref: 10

DAMPER,LEFT

€ 3.50

11

3418904A30
ref: 11
34189-27A00

CUSHION

€ 6.00

12

3471832C00
ref: 12

PLATE,SETTING

€ 17.50

13

3471632C00
ref: 13

DAMPER

€ 3.00

14

0831011045
ref: 14
08310-0004A

NUT

€ 2.00

15

3413148B10
ref: 15

GEAR BOX

€ 150.00

16

3413217C00
ref: 16

GASKET,METER GEAR BOX (NAS)

€ 5.50

17

0211204128
ref: 17
02112-0412A

SCREW

€ 1.50

18

0832121045
ref: 18
08321-0104A

LOCK WASHER

€ 2.00

19

3417017C20
ref: 19
34170-41C20

SOCKET,METER

€ 123.50

20

0947112103
ref: 20

BULB(12V3W,T6.5)

€ 2.50

21

0947112108
ref: 21

BULB(12V1.7W,T6.5)

€ 2.00

22

0940404402
ref: 22
09404-06429

CLAMP

€ 2.50

23

3412449400
ref: 23

KNOB,TRIP

€ 4.50

24

0151706125
ref: 24
01550-0612A

BOLT 6X12

€ 2.50

25

3491017C01
ref: 25
34910-19C01

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

26

3493817D50
ref: 26
34938-17D51

CLAMP,SPEEDOMETER CABLE

€ 7.50

27

3493917D00
ref: 27

GUIDE,SPEEDOMETER CABLE NO.3

€ 5.50

28

0211205164
ref: 28

SCREW

€ 2.00

29

0214206108
ref: 29
02142-06107

SCREW

€ 2.00

30

0831011058
ref: 30
08310-00057

NUT

€ 2.50
