TURNSIGNAL LAMP

GSXR750 1989 (K) USA (E03)

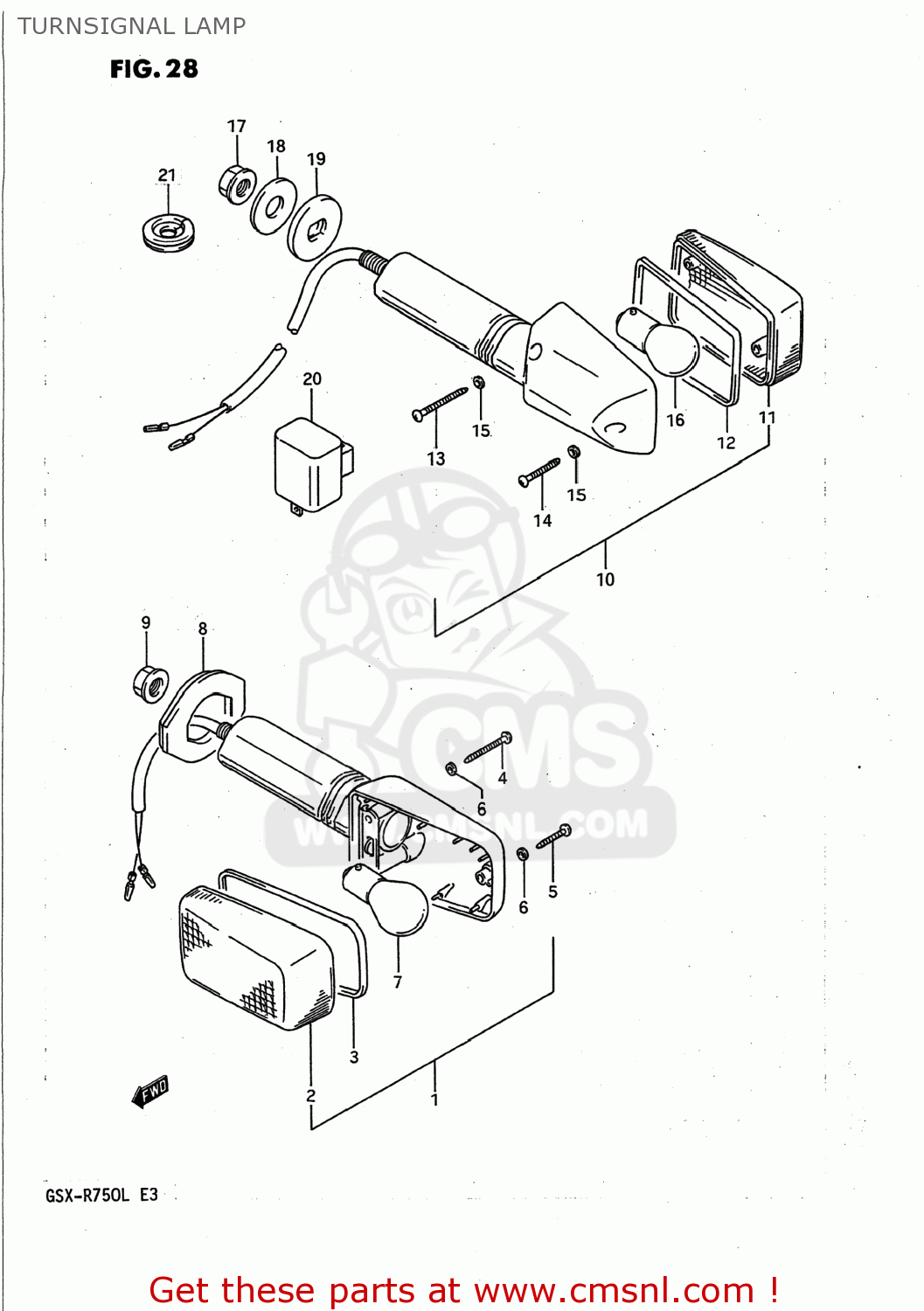

Turnsignal lamp diagram GSXR750 1989 (K) USA (E03)

TURNSIGNAL LAMP GSXR750 1989 (K) USA (E03)

TURNSIGNAL LAMP GSXR750 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560117C21
ref: 1
35601-01D10

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 70.50

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8-1

3567417C00
ref: 8-1

GROMMET,FR TURNSIGNAL

€ 4.50

8-2

3567427A01
ref: 8-2

GROMMET

€ 13.50

9

0831626105
ref: 9
08316-2010B

NUT

€ 3.50

10-1

3560117C40
ref: 10-1
35601-17C41

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 112.00

10-2

3560117C41
ref: 10-2

LAMP ASSY,FR TURN SIGNAL

€ 112.00

11

3561217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

0831626105
ref: 17
08316-2010B

NUT

€ 3.50

18

0916010094
ref: 18

WASHER(10.5X30X3.2)

€ 3.50

19

3569517C00
ref: 19

SPACER,RR TURNSIGNAL

€ 3.00

20

3861031310
ref: 20
38610-31X50

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

21-1

0930807011
ref: 21-1

GROMMET

€ 3.50

21-2

0930807013
ref: 21-2

GROMMET

€ 3.50
