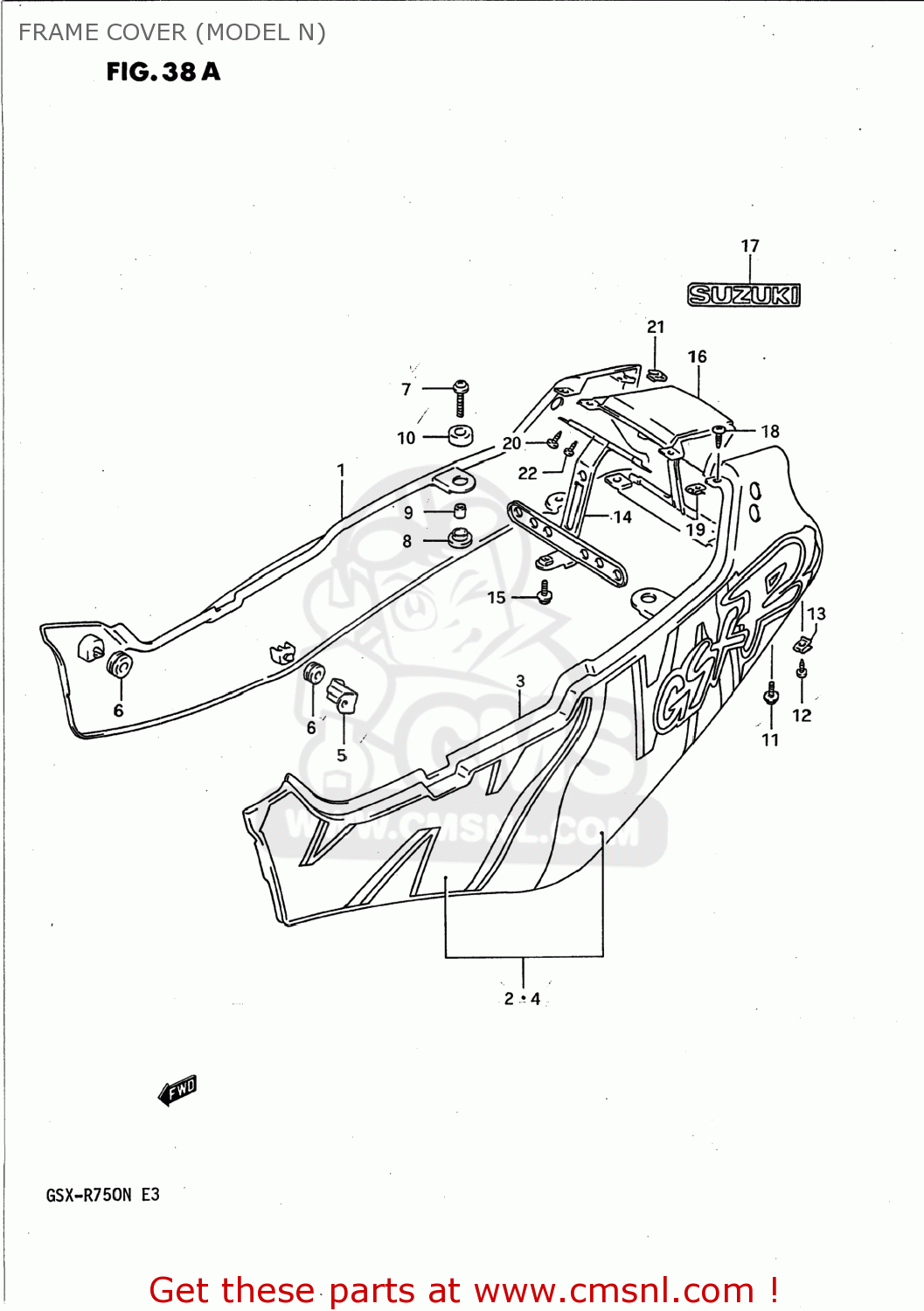

FRAME COVER (MODEL N)

ref

part #

description

quantity

1-1

4711018D5033J
ref: 1-1

COVER COMP,FRAME,RIGHT

€ 464.00

1-2

4711018D5036X
ref: 1-2

COVER COMP,FRAME,RIGHT

€ 0.00

2-1

6813018D001LZ
ref: 2-1

TAPE SET,FRAME COVER,R

€ 162.00

2-2

6813018D001MA
ref: 2-2

TAPE SET,FRAME COVER,RIGHT

€ 132.00

3-1

4721018D5033J
ref: 3-1

COVER COMP,FRAME,LEFT

€ 319.00

3-2

4721018D5036X
ref: 3-2

COVER,FRAME,L(BLACK)

€ 325.00

4-1

6814018D001LZ
ref: 4-1

TAPE SET,FRAME COVER,L

€ 216.50

4-2

6814018D001MA
ref: 4-2

TAPE SET,FRAME COVER,LEFT

€ 181.50

5

4381541C00
ref: 5
43815-41C0V

BRACKET,FRAME COVER

€ 8.00

6

0932008018
ref: 6

CUSHION

€ 4.00

7

0913606062
ref: 7
09136-06017

SCREW (6X16)

€ 2.50

8

4532617C00
ref: 8

CUSHION,FRAME COVER LWR

€ 7.00

9

0918006143
ref: 9
09180-06286

SPACER

€ 2.50

10

4514904A00
ref: 10

CUSHION,TAIL COVER UPR

€ 2.00

11

0913606083
ref: 11

SCREW(6X30)

€ 3.00

12

0314114125
ref: 12
03141-1412B

SCREW

€ 2.00

13

0914804024
ref: 13

NUT

€ 2.00

14

4741041C00
ref: 14

BRACKET,TAIL LAMP

€ 35.50

15

0911606064
ref: 15
09116-06109

BOLT

€ 1.50

16-1

4731041C200JX
ref: 16-1

COVER,FRAME,CENTER

€ 0.00

16-2

4731041C2033J
ref: 16-2

COVER,FRAME CTR

€ 0.00

17-1

68166313000JW
ref: 17-1
68166-31300-13L

EMBLEM

€ 5.00

17-2

681663130013L
ref: 17-2

EMBLEM

€ 5.00

18

0324115125
ref: 18
03241-1512B

SCREW, BRACKET

€ 2.50

19

0914805019
ref: 19

NUT

€ 2.00

20

0324115125
ref: 20
03241-1512B

SCREW, BRACKET

€ 2.50

21

0914805038
ref: 21

NUT

€ 2.50

22

0354104125
ref: 22
03541-0412A

SCREW

€ 1.50
