FRONT DAMPER
GSXR750 1991 (M) USA (E03)

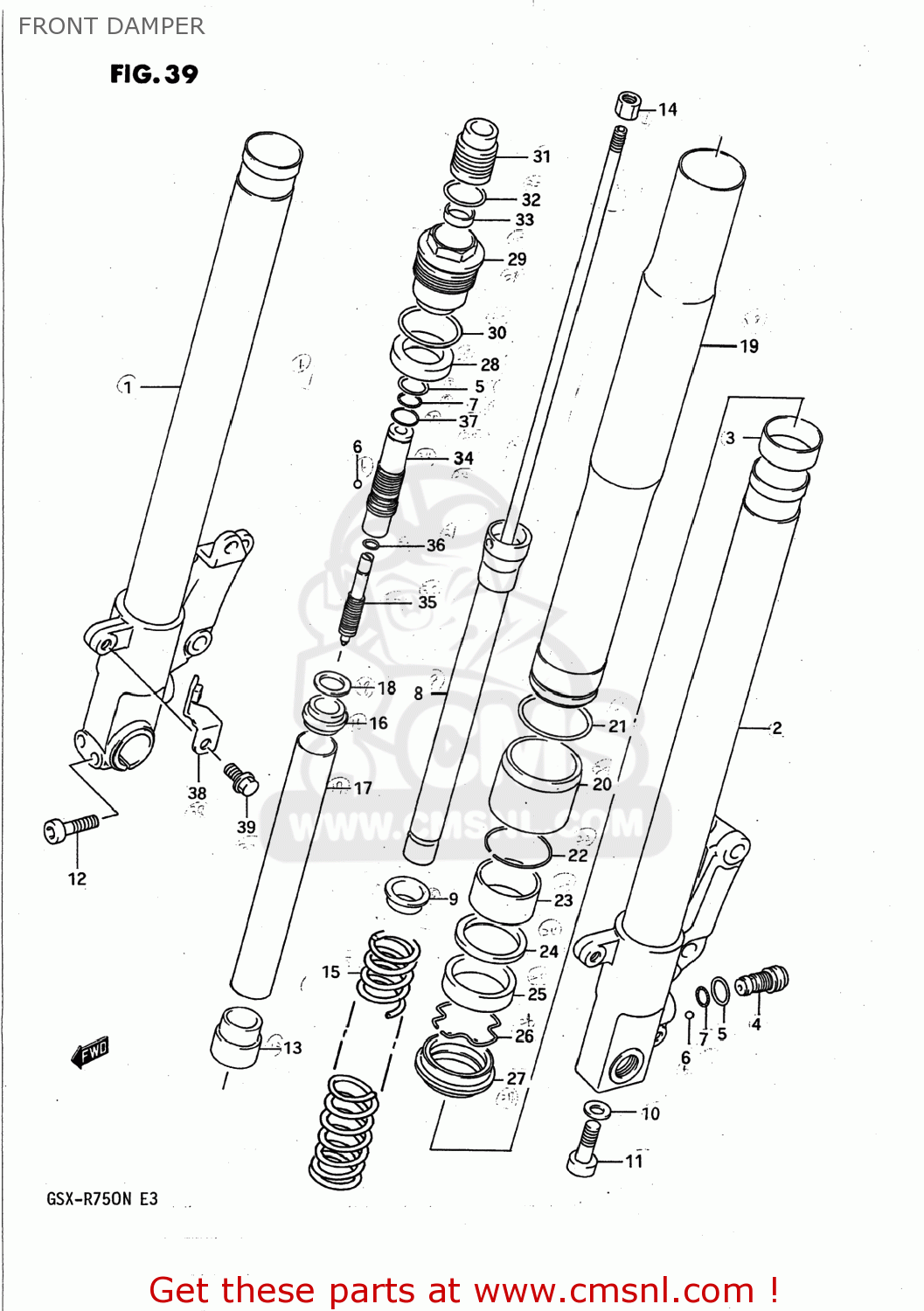

Front damper diagram GSXR750 1991 (M) USA (E03)
FRONT DAMPER GSXR750 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110318D10
ref:
DAMPER ASSEMBLY,RIGHT
€ 667.00
5110418D10
ref:
DAMPER ASSEMBLY,LEFT
€ 1,279.00
1
5111018D10
ref: 1
TUBE,INNER,RIGHT
€ 0.00
2
5112018D10
ref: 2
TUBE,INNER,LEFT
€ 0.00
3
5112148B31
ref: 3
BUSH,SLIDE
€ 15.50
4
5183007D00
ref: 4
PIECE,ADJUSTER
€ 71.00
5
5183417C00
ref: 5
09280-14011
O RING
€ 3.50
6
5183517C00
ref: 6
BALL
€ 3.00
7
5183617C00
ref: 7
EXPANDER
€ 3.50
8
5211018D10
ref: 8
DAMPER,FRONT
€ 0.00
9
5181522D00
ref: 9
PLATE,CENTERING
€ 12.00
10
0916110009
ref: 10
WASHER(10X15X1.5)
€ 2.00
11
5114717C00
ref: 11
BOLT
€ 21.00
12
0711008508
ref: 12
07130-0850A
BOLT ,8X50
€ 3.50
13
5117222D00
ref: 13
JOINT,SPRING LWR
€ 11.00
14
5182717C00
ref: 14
NUT
€ 10.50
15
5117118D10
ref: 15
SPRING,MAIN
€ 0.00
16
5117522D00
ref: 16
GUIDE,SPRING UPR
€ 15.00
17
5117618D10
ref: 17
SPACER,SPRING
€ 0.00
18-1
5117234A00
ref: 18-1
51172-34370
SEAT,FRONT FORK SPRING
€ 3.50
18-2
5117234370
ref: 18-2
GUIDE,SPRING
€ 3.50
19
5113118D10
ref: 19
TUBE,OUTER
€ 395.50
20
5113517D00
ref: 20
CASE,OIL SEAL
€ 64.50
21
5111708D00
ref: 21
O RING
€ 6.50
22
5115608D00
ref: 22
RING,SNAP
€ 4.00
23
5115248B31
ref: 23
BUSH,GUIDE
€ 20.00
24
5116838B00
ref: 24
SPACER,SEAL
€ 5.00
25
5115308D00
ref: 25
SEAL,OIL
€ 15.50
26
5155638B00
ref: 26
CIRCLIP,FORK OIL SEAL
€ 4.50
27
5117308D00
ref: 27
51173-15D00
DUST SEAL,FRONT FORK
€ 19.50
28
5119317D00
ref: 28
RUBBER,SEAT
€ 13.00
29
5118918D00
ref: 29
BOLT,FORK
€ 79.00
30
5118708D00
ref: 30
O RING,FORK BOLT
€ 6.00
31
5182817D00
ref: 31
ADJUSTER,SPRING
€ 42.50
32
5119917D00
ref: 32
O RING
€ 6.00
33
5182317D00
ref: 33
51823-22D30
PLATE, SPRING ADJUSTER
€ 33.50
34
5182917D00
ref: 34
CASE,ADJUSTER
€ 67.00
35
5182117D00
ref: 35
PIECE,ADJUSTER UPR
€ 29.50
36
5182417C00
ref: 36
09280-03002
O RING
€ 2.00
38-1
5159017D10
ref: 38-1
51590-17D1V
PLATE,FRONT FENDER,LEFT
€ 10.00
38-2
5158017D10
ref: 38-2
51580-17D1V
PLATE,FRONT FENDER,RIGHT
€ 11.50
39
0151708128
ref: 39
01550-08127
BOLT 8X12
€ 3.50
47
5183717D00
ref: 47
RING,STOPPER
€ 6.00
