HANDLEBAR
GSXR750 1991 (M) USA (E03)

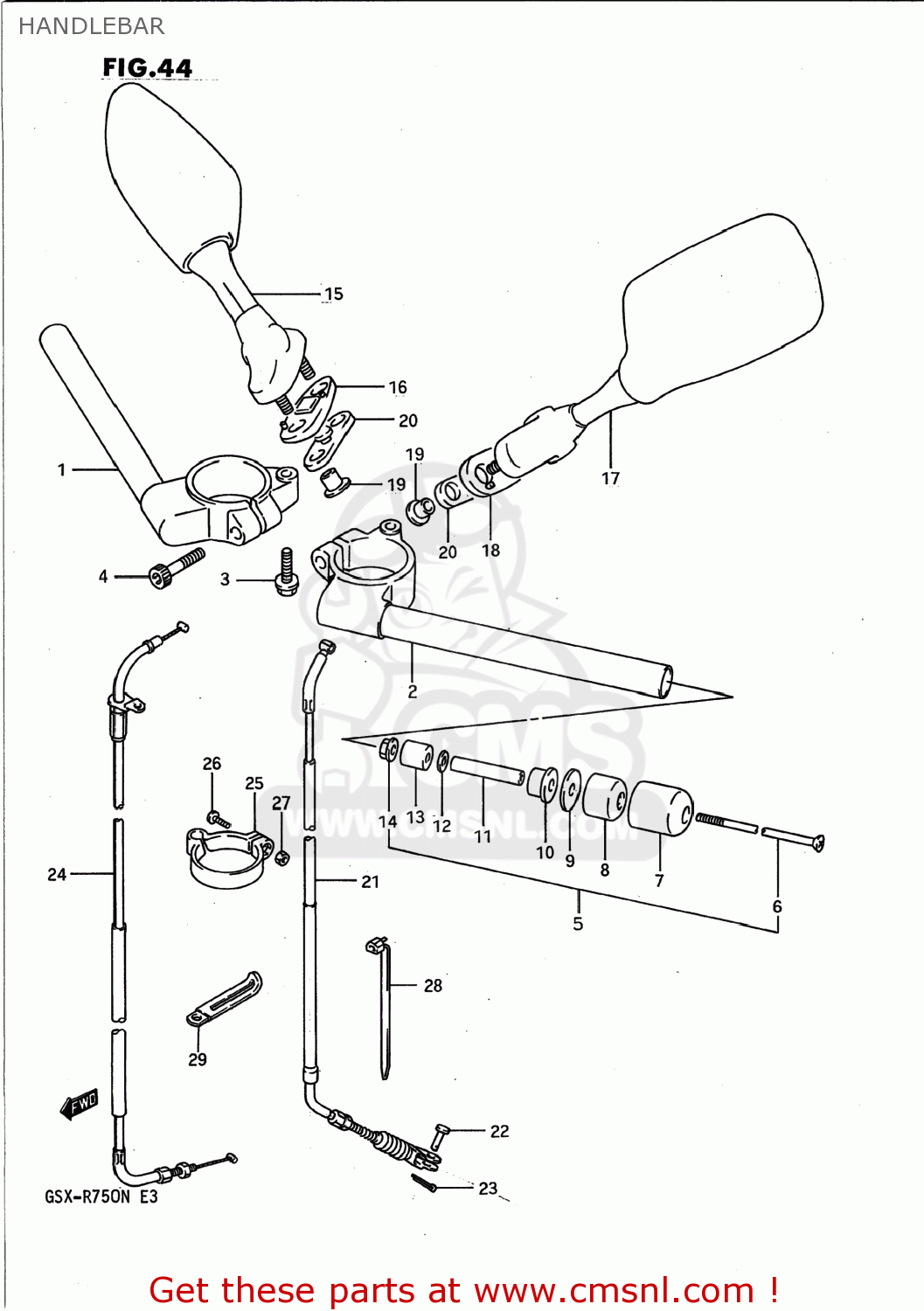

Handlebar diagram GSXR750 1991 (M) USA (E03)
HANDLEBAR GSXR750 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611117D00
ref: 1
HANDLEBAR,R
€ 184.50
2
5615117D00
ref: 2
HANDLEBAR,L
€ 159.00
3
0151706204
ref: 3
01550-0620A
BOLT 6X20
€ 2.50
4
0711008355
ref: 4
07130-0835B
BOLT 8X35
€ 4.00
5
5620017810
ref: 5
56200-17812
BALANCER SET,HANDLEBAR
€ 148.50
6
0912706017
ref: 6
SCREW(6X127)
€ 2.50
7
5627412C00
ref: 7
CAP,BALANCER
€ 83.00
8
5627117D00
ref: 8
BALANCER,HANDLEBAR
€ 12.00
9
5627534400
ref: 9
56275-34401
SPACER,BALANCER
€ 2.50
10
5627217D00
ref: 10
56272-26D10
EXPANDER,HANDLE BALANCER
€ 5.50
11
5627617D00
ref: 11
SPACER,EXPANDER
€ 2.50
12
0832221067
ref: 12
08322-01067
WASHER
€ 2.00
13
5627244500
ref: 13
EXPANDER,HANDLE BALANCER
€ 3.00
14
0915906024
ref: 14
NUT
€ 2.00
15-1
5650018D010NE
ref: 15-1
MIRROR ASSY,RR VIEW,R
€ 115.50
15-1
5650018D010NE
ref: 15-1
MIRROR ASSY,RR VIEW,R
€ 115.50
15-2
5650018D0184N
ref: 15-2
MIRROR ASSY,RR VIEW,R
€ 114.50
15-2
5650018D0184N
ref: 15-2
MIRROR ASSY,RR VIEW,R
€ 114.50
16
5652818D00
ref: 16
GASKET,RR VIEW MIRROR,R (NAS)
€ 11.00
17-1
5660018D010NE
ref: 17-1
MIRROR ASSY,RR VIEW,L
€ 121.00
17-1
5660018D010NE
ref: 17-1
MIRROR ASSY,RR VIEW,L
€ 121.00
17-2
5660018D0184N
ref: 17-2
MIRROR ASSY,RR VIEW,L
€ 105.50
17-2
5660018D0184N
ref: 17-2
MIRROR ASSY,RR VIEW,L
€ 105.50
18
5662818D00
ref: 18
GASKET,RR VIEW MIRROR,L (NAS)
€ 10.00
19
5661912C00
ref: 19
NUT,RR VIEW MIRROR
€ 8.00
20
9457641C00
ref: 20
CUSHION,RR VIEW MIRRORR
€ 12.00
21
5820018D00
ref: 21
CABLE ASSY,CLUTCH
€ 45.50
22
0920006011
ref: 22
PIN(L:15)
€ 2.50
23
0411120158
ref: 23
04111-2015A
PIN
€ 1.50
24-1
5830018D01
ref: 24-1
CABLE ASSY,THROTTLE
€ 51.50
24-2
5830018D10
ref: 24-2
CABLE ASSY,THROTTLE
€ 34.00
25
5828517D03
ref: 25
CLAMP,CLUTCH CABLE NO
€ 7.00
26
0214205204
ref: 26
02142-0520B
SCREW
€ 2.00
27
0831012055
ref: 27
08310-0005A
NUT ,5MM
€ 2.50
28
0940725401
ref: 28
CLAMP(L:235)
€ 4.00
29
0940406402
ref: 29
09404-06432
CLAMP
€ 2.50
