CRANKCASE
GSXR750W 1993 (P) USA (E03)

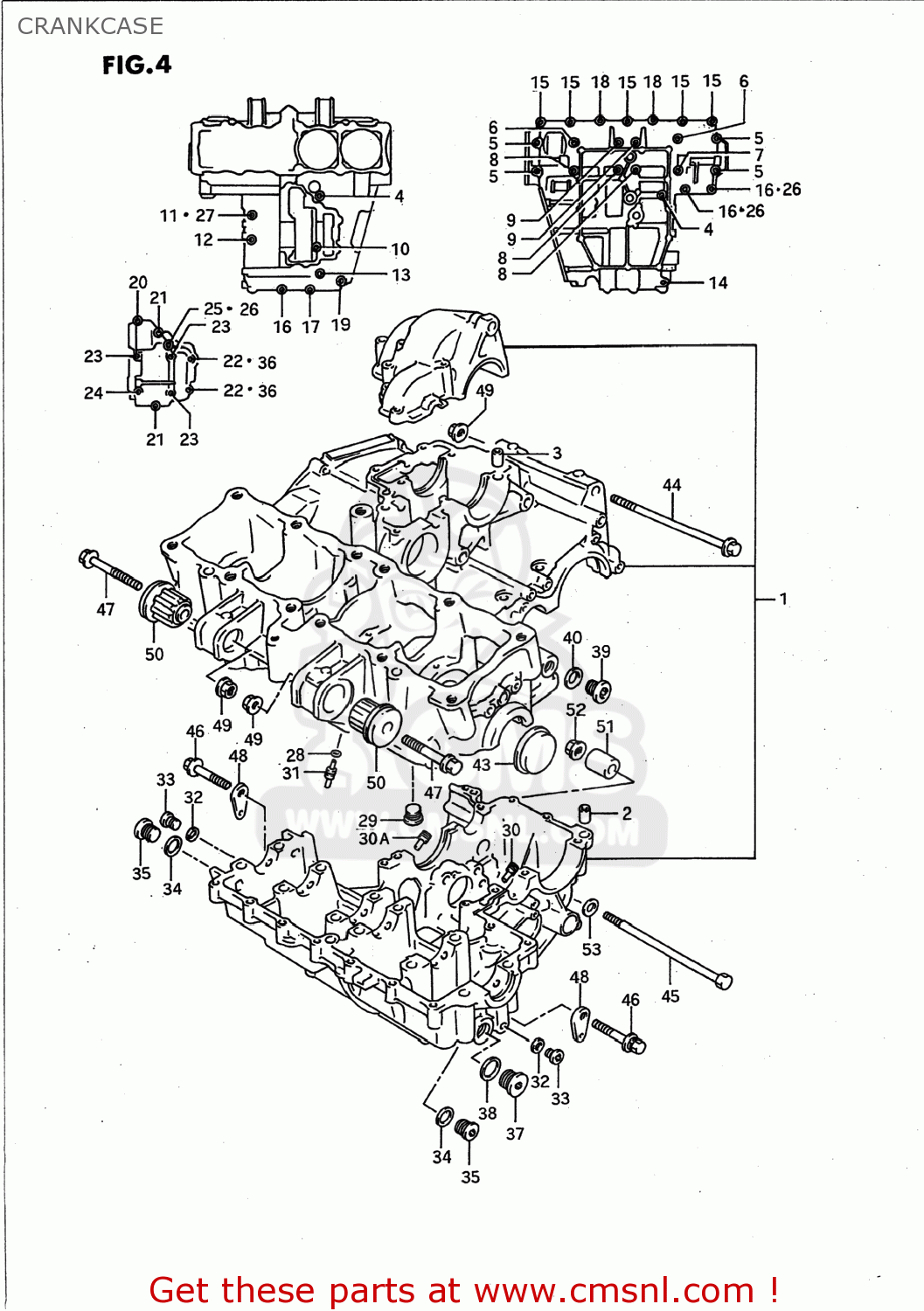

Crankcase diagram GSXR750W 1993 (P) USA (E03)
CRANKCASE GSXR750W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130017844
ref: 1-1
11302-46874
CRANKCASE SET
€ 2,080.50
1-2
1130017848
ref: 1-2
11302-46876
CRANKCASE SET
€ 2,080.50
1-3
1130246873
ref: 1-3
11302-46876
CRANKCASE SET
€ 2,080.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0910306163
ref: 4
BOLT(6X105)
€ 4.00
5
0910309007
ref: 5
BOLT 9X80
€ 5.50
6
0910309008
ref: 6
BOLT(9X95)
€ 6.00
7
0910309009
ref: 7
BOLT(9X105)
€ 8.00
8
0910309010
ref: 8
BOLT(9X115)
€ 6.00
9
0910609001
ref: 9
BOLT(9X60)
€ 6.00
10-1
0711006758
ref: 10-1
07130-0675B
BOLT
€ 3.00
10-2
0713006753
ref: 10-2
07130-0675B
BOLT
€ 3.00
11-1
0711008508
ref: 11-1
07130-0850A
BOLT ,8X50
€ 3.50
11-2
0713008503
ref: 11-2
07130-0850A
BOLT
€ 3.50
12-1
0711008608
ref: 12-1
07130-0860B
BOLT, REAR RH
€ 4.50
12-2
0713008603
ref: 12-2
07130-0860B
BOLT
€ 4.50
13-1
0713008808
ref: 13-1
07130-0880B
BOLT
€ 3.00
13-2
0713008803
ref: 13-2
07130-0880B
BOLT
€ 3.00
14-1
0151708605
ref: 14-1
01550-0860A
BOLT 8X60
€ 3.50
14-2
0155008603
ref: 14-2
01550-0860A
BOLT
€ 3.50
15-1
0151706354
ref: 15-1
01550-0635A
BOLT 6X35
€ 2.50
15-2
0155006353
ref: 15-2
01550-0635A
BOLT
€ 2.50
16-1
0151706404
ref: 16-1
01550-0640A
BOLT
€ 2.00
16-2
0155006403
ref: 16-2
01550-0640A
BOLT
€ 2.00
17-1
0151706408
ref: 17-1
01550-06407
BOLT
€ 2.50
17-2
0155006403
ref: 17-2
01550-0640A
BOLT
€ 2.00
18-1
0151706505
ref: 18-1
01550-0650A
BOLT 6X50
€ 2.00
18-2
0155006503
ref: 18-2
01550-0650A
BOLT
€ 2.00
19-1
0151706655
ref: 19-1
BOLT
€ 2.50
19-2
0155006653
ref: 19-2
01550-0665A
BOLT
€ 2.50
20-1
0711006257
ref: 20-1
07130-06257
BOLT
€ 2.50
20-2
0713006253
ref: 20-2
07130-0625B
BOLT,CL.COVER
€ 3.00
21-1
0711006357
ref: 21-1
07130-06357
BOLT
€ 3.50
21-2
0713006353
ref: 21-2
07130-0635B
BOLT
€ 3.50
22-1
0711006408
ref: 22-1
07130-06407
BOLT
€ 2.50
22-2
0713006403
ref: 22-2
07130-0640B
BOLT
€ 3.50
23-1
0711006508
ref: 23-1
07130-0650B
BOLT
€ 3.00
23-2
0713006503
ref: 23-2
07130-0650B
BOLT,CL.COVER
€ 3.00
24-1
0711006608
ref: 24-1
07130-0660B
BOLT
€ 3.00
24-2
0713006603
ref: 24-2
07130-0660B
BOLT
€ 3.00
25
0910306062
ref: 25
BOLT(6X145)
€ 3.50
26
0916806018
ref: 26
GASKET(6.2X13X1.2) (NAS)
€ 2.00
27
0916808016
ref: 27
GASKET(8.2X14X1) (NAS)
€ 1.00
28
0928004004
ref: 28
O RING(D:1.2,ID:4)
€ 2.00
29
0924818002
ref: 29
09248-18005
PLUG,CRANKCASE,UPPER
€ 4.00
30
0949324010
ref: 30
JET
€ 12.00
30A
0949328012
ref: 30A
JET(140)
€ 8.00
31
0949380008
ref: 31
JET,OIL GALLERY
€ 8.50
32
0916810002
ref: 32
GASKET(10X14X3.6) (NAS)
€ 2.00
33
0924810007
ref: 33
PLUG(10X6.8)
€ 4.50
34
0916816002
ref: 34
GASKET(16X22X2) (NAS)
€ 2.00
35
0924816010
ref: 35
09248-16012
PLUG
€ 4.50
36
0916806024
ref: 36
GASKET(5.8X11X1.2) (NAS)
€ 2.00
37
0924822002
ref: 37
PLUG(22X11)
€ 9.00
38
0916822002
ref: 38
GASKET(22X27X2) (NAS)
€ 3.50
39
0924814010
ref: 39
PLUG
€ 5.00
40
0916814002
ref: 40
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
41
1222817E000D0
ref: 41
BEARING,CRANK THRUST(GREEN)
€ 8.00
41
1222817E000D0
ref: 41
BEARING,CRANK THRUST(GREEN)
€ 8.00
42-1
1222817E000A0
ref: 42-1
BEARING,CRANK THRUST(RED)
€ 7.50
42-1
1222817E000A0
ref: 42-1
BEARING,CRANK THRUST(RED)
€ 7.50
42-2
1222817E000B0
ref: 42-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
42-3
1222817E000C0
ref: 42-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
42-4
1222817E000D0
ref: 42-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
42-5
1222817E000E0
ref: 42-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
42-6
1222817E000F0
ref: 42-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
43
0924137002
ref: 43
PLUG
€ 13.50
44
0910310139
ref: 44
09103-10078
BOLT 10X150
€ 8.50
45
0910012043
ref: 45
BOLT,ENGINE MOUNTING,REAR,LOWER
€ 7.00
46-1
0198710558
ref: 46-1
01580-1055B
BOLT
€ 3.00
46-2
0158010603
ref: 46-2
01580-1060B
BOLT
€ 3.50
46-3
0158010553
ref: 46-3
01580-1055B
BOLT
€ 3.00
47-1
0151710558
ref: 47-1
01550-10557
BOLT 10X55
€ 3.00
47-2
0155010553
ref: 47-2
01550-1055B
BOLT
€ 3.00
48
1161333C00
ref: 48
NUT,ENGINE MOUNT,LOWER
€ 7.50
49
0915910058
ref: 49
09159-10115
NUT
€ 4.00
50
1168127A00
ref: 50
BUSH,ENGINE MOUNTING
€ 27.00
51-1
1161119B11
ref: 51-1
11611-19B13
SPACER,ENGINE MOUNT
€ 10.00
51-2
1161117E00
ref: 51-2
11611-19B13
SPACER,ENGINE MOUNTING (L:13)(AL)
€ 10.00
52
0831931128
ref: 52
08319-3112A
NUT 12MM
€ 4.00
53-1
0832211128
ref: 53-1
08322-01127
WASHER
€ 2.00
53-2
0832201123
ref: 53-2
08322-0112B
WASHER
€ 2.00
