prices are in EUR

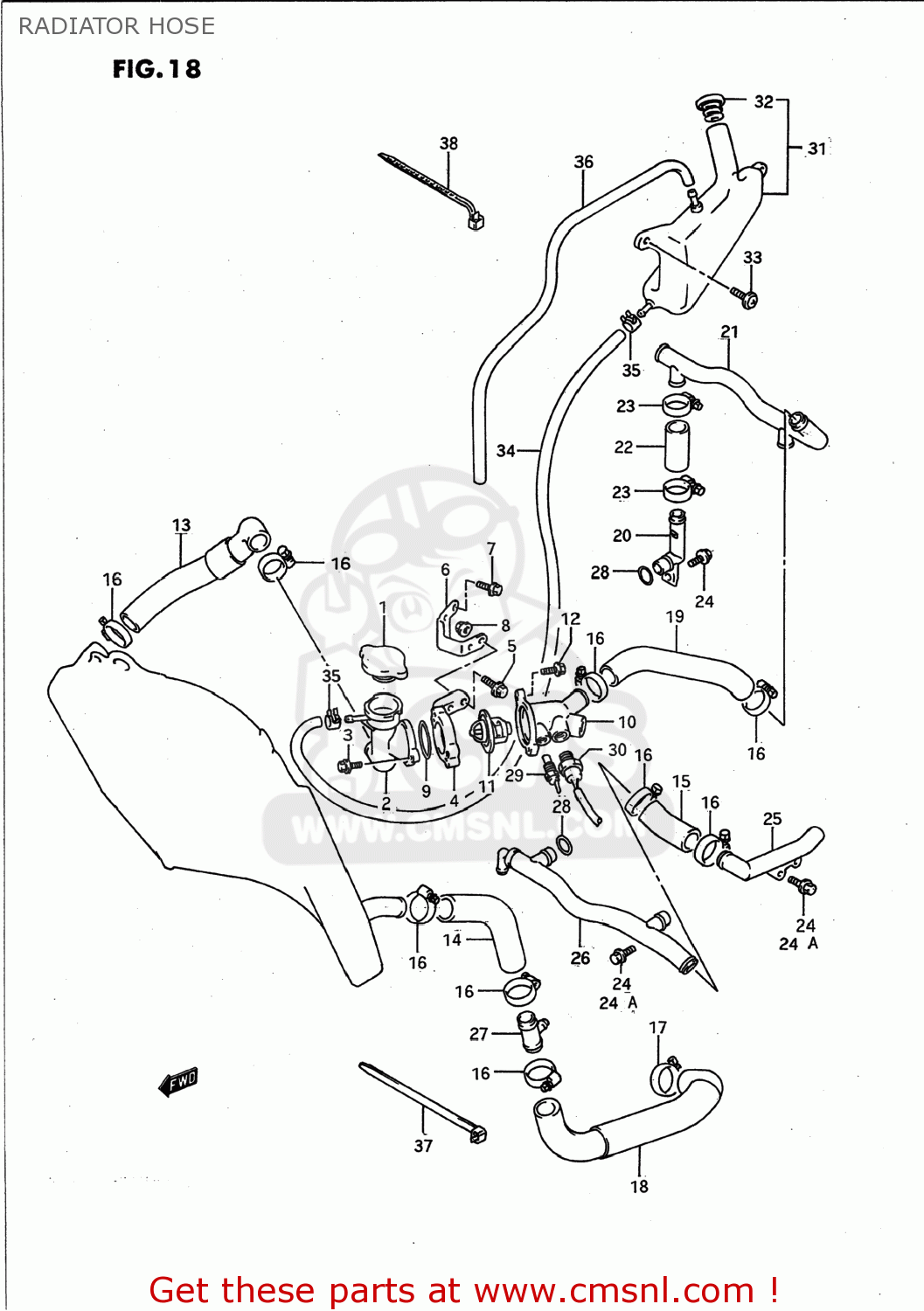

ref
part #
description
quantity
1-1
CAP,RADIATOR 1.1
1-2
CAP,RADIATOR
2
CONDUCTION,RADIATOR
3-1
BOLT 6X16
3-2
BOLT
4
BRACKET,CONDUCTION
5-2
BOLT
6
BRACKET,CONDUCTION BRAKE
7-1
BOLT 6X16
7-2
BOLT
8-1
NUT
8-2
NUT
9
O RING(D:2.4,ID:43.2)
10
CONNECTOR,THERMOSTAT INLET
11
THERMOSTAT,WATER
12-2
BOLT
13-2
HOSE,RADIATOR INLET
14
HOSE,RADIATOR OUTLET
15-2
HOSE,WATER
15-3
HOSE,WATER
16-2
CLAMP
17-1
CLAMP
17-2
CLAMP
18
HOSE,WATER PUMP INLET
19
HOSE,HEAD OUTLET
20
PIPE,HEAD OUTLET
21-1
PIPE COMP,HEAD OUTLET
21-2
PIPE COMP,HEAD OUTLET
22-2
HOSE,RADIATOR JOINT NO.1
23-1
CLAMP
23-2
CLAMP
24A
BOLT(6X36)
24-1
BOLT 6X12
24-2
BOLT
24-3
BOLT
25-1
PIPE,CYLINDER SIDE
25-3
PIPE,CYLINDER SIDE
26-1
PIPE COMP,CYLINDER INLET
26-2
PIPE,CYLINDER INLET
27-3
UNION,HOSE JOINT
28
O RING(D:3.2,ID:17.8)
29-1
GAUGE ASSY,WATER TEMPERATURE
29-2
GAUGE ASSY,WATER TEMP
30
SWITCH COMP,RADIATOR FAN
31-1
TANK ASSY,RESERVOIR
32
CAP,RESERVOIR TANK
33
SCREW(6X20)
34
HOSE,RESERVOIR TANK INLET
35-2
CLIP
36
HOSE,RESERVOIR TANK OVERFLOW
37
CLAMP
38
CLAMP(L:165)
