GSXR750W 1993 (P) USA (E03)

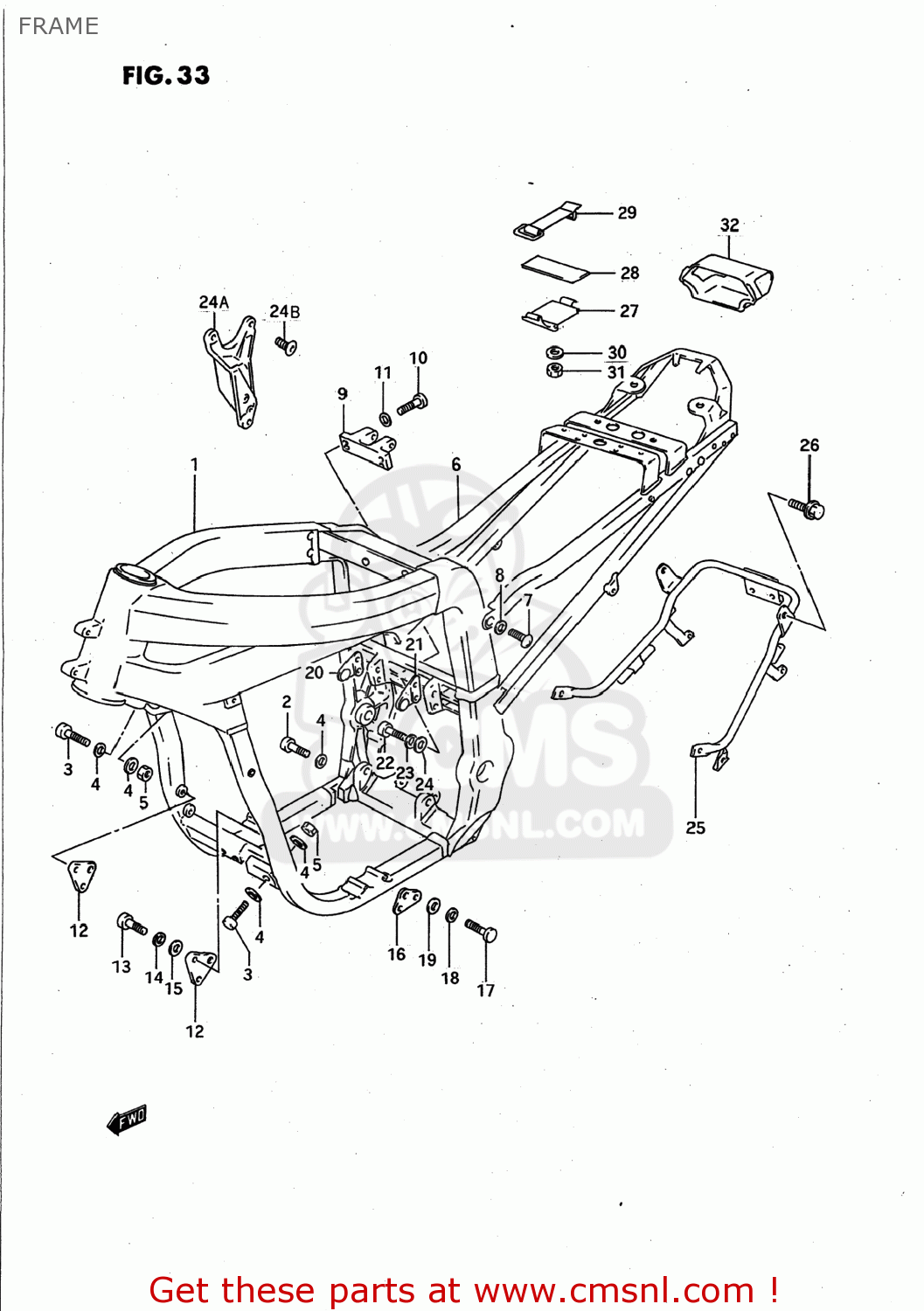

Frame diagram GSXR750W 1993 (P) USA (E03)
FRAME GSXR750W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110117860
ref: 1-1
41101-17870
FRAME
€ 4,015.50
1-2
4110117870
ref: 1-2
FRAME SET
€ 4,015.50
1-3
4110117881
ref: 1-3
FRAME SET
€ 4,228.00
2-1
0151710308
ref: 2-1
01550-10307
BOLT
€ 3.50
2-2
0155010307
ref: 2-2
BOLT
€ 3.50
2-3
0155010303
ref: 2-3
01550-1030A
BOLT
€ 3.00
3-1
0192710458
ref: 3-1
01550-1045B
BOLT
€ 3.00
3-2
0155010453
ref: 3-2
01550-1045B
BOLT
€ 3.00
4
0916010013
ref: 4
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
5
0915910027
ref: 5
NUT
€ 3.00
6-1
4120017E00
ref: 6-1
41200-17E01
RAIL,SEAT
€ 1,346.50
6-2
4120017E01
ref: 6-2
RAIL,SEAT
€ 1,346.50
6-3
4120017E50
ref: 6-3
RAIL COMP,SEAT
€ 1,232.00
7
4352917D00
ref: 7
09139-10004
BOLT,FOOTREST BRACKET
€ 5.50
8
0916410010
ref: 8
WASHER
€ 6.50
9
4176217E00
ref: 9
BRACKET,R.C.U.
€ 89.00
10
0910608056
ref: 10
BOLT(8X28)
€ 2.00
11
0916408015
ref: 11
WASHER
€ 3.00
12
4191117E00
ref: 12
PLATE,ENG MTG NO.1
€ 27.00
13-1
0713008257
ref: 13-1
BOLT
€ 3.50
13-2
0910308255
ref: 13-2
09103-08288
BOLT
€ 2.50
14-1
0832101087
ref: 14-1
WASHER,LOCK
€ 2.00
14-2
0832101083
ref: 14-2
08321-0108A
LOCK WASHER
€ 2.50
15
0916008010
ref: 15
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
16-1
4192117E00
ref: 16-1
PLATE,ENGINE MOUNTING
€ 8.50
16-2
4193117E00
ref: 16-2
PLATE,ENG MTG NO.2,R
€ 8.00
17-1
0713008257
ref: 17-1
BOLT
€ 3.50
17-2
0910308255
ref: 17-2
09103-08288
BOLT
€ 2.50
18-1
0832101087
ref: 18-1
WASHER,LOCK
€ 2.00
18-2
0832101083
ref: 18-2
08321-0108A
LOCK WASHER
€ 2.50
19
0916008010
ref: 19
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
20
4194017E00
ref: 20
PLATE,ENGINE MOUNTING NO.3
€ 14.50
21
4195017E00
ref: 21
PLATE,ENG MTG NO.3,L
€ 16.00
22
0910608005
ref: 22
BOLT(8X22)
€ 2.00
23-1
0832131087
ref: 23-1
08321-01087
WASHER,LOCK
€ 2.00
23-2
0832101083
ref: 23-2
08321-0108A
LOCK WASHER
€ 2.50
24
0916008010
ref: 24
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
24B
0910608112
ref: 24B
09106-08129
BOLT
€ 5.00
24A-1
4196117E60
ref: 24A-1
PLATE,ENGINE MOUNTING,UPPER
€ 153.00
24A-2
4197117E60
ref: 24A-2
PLATE,ENGINE MOUNT UPR
€ 154.50
25-1
4398017E11
ref: 25-1
43980-17E14
GRIP COMP,REAR
€ 145.00
25-2
4398017E12
ref: 25-2
43980-17E14
GRIP COMP,REAR
€ 145.00
25-3
4398017E14
ref: 25-3
GRIP,REAR
€ 145.00
26-1
0155008207
ref: 26-1
BOLT
€ 3.00
26-2
0155008203
ref: 26-2
01550-0820A
BOLT
€ 3.00
27
4155049200
ref: 27
41550-49201
HOLDER,TOOL
€ 10.00
28
3692002200
ref: 28
COVER,HARNESS
€ 3.00
29
0946200008
ref: 29
BAND
€ 4.50
30
0916006006
ref: 30
09160-06084
WASHER
€ 2.00
31
0831921066
ref: 31
08319-2106A
NUT
€ 2.00
32
4743117E00
ref: 32
HOLDER,TOOL
€ 26.50
