GSXR750W 1994 (R) USA (E03)

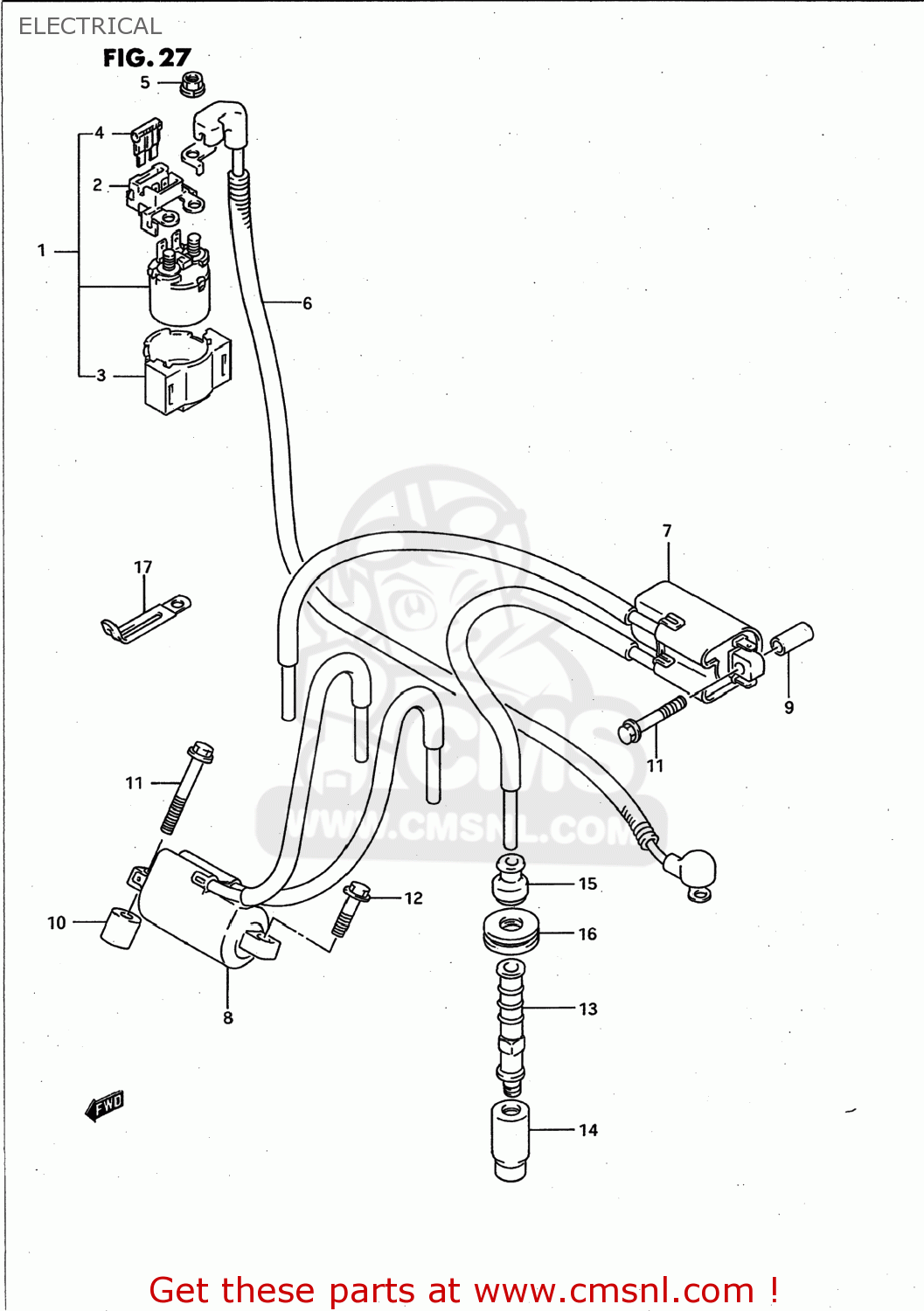

Electrical diagram GSXR750W 1994 (R) USA (E03)
ELECTRICAL GSXR750W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180007D00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 87.50
2
3184107D00
ref: 2
TERMINAL,RELAY
€ 19.00
3
3189207D00
ref: 3
BRACKET,STARTING MOTOR RELAY
€ 12.00
4
0948130201
ref: 4
FUSE (30A)
€ 6.00
5
0836135066
ref: 5
08361-3506A
NUT
€ 2.00
6-1
3381017E00
ref: 6-1
33810-46E01
WIRE,STARTER MOTOR
€ 36.50
6-2
3381017E01
ref: 6-2
33810-46E01
WIRE,STARTER MOTOR
€ 36.50
7
3341017E00
ref: 7
COIL ASSY,IGNITION
€ 109.50
8
3342017E00
ref: 8
COIL ASSY,IGNITION
€ 101.50
9
0918006072
ref: 9
09180-06271
SPACER
€ 2.00
10
3341917E00
ref: 10
SPACER,IGNITION COIL 1
€ 4.50
11
0155006403
ref: 11
01550-0640A
BOLT
€ 2.00
12
0155006203
ref: 12
01550-0620A
BOLT
€ 2.50
13-1
3351017E00
ref: 13-1
CAP,SPARK PLUG
€ 41.00
13-2
3351017E10
ref: 13-2
33510-17E11
CAP,SPARK PLUG
€ 46.00
14
3354120C00
ref: 14
SEAL,SPARK PLUG
€ 19.50
15
3354238B00
ref: 15
SEAL,HIGH TENSION CORD
€ 4.50
16-1
3354317E00
ref: 16-1
33543-17E01
COVER,SPARK PLUG CAP
€ 19.00
16-2
3354317E01
ref: 16-2
COVER,SPARK PLUG CAP
€ 19.00
17-1
0940406404
ref: 17-1
09404-06433
CLAMP
€ 3.00
17-2
0940406431
ref: 17-2
09404-06432
CLAMP(L:65)
€ 2.50
