FRONT DAMPER (MODEL P)
GSXR750W 1994 (R) USA (E03)

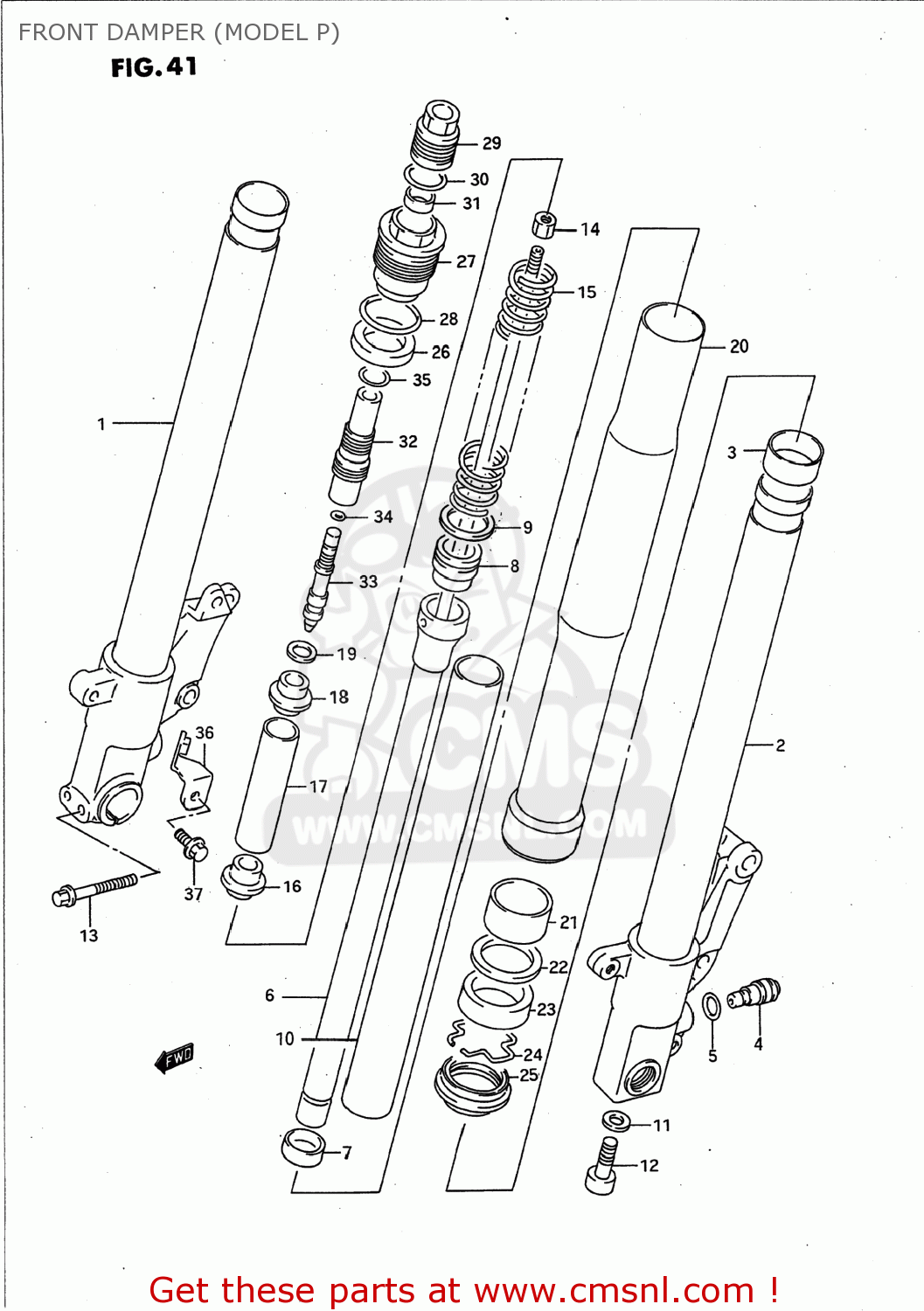

Front damper (model p) diagram GSXR750W 1994 (R) USA (E03)
FRONT DAMPER (MODEL P) GSXR750W 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110318E00
ref:
DAMPER ASSEMBLY,RIGHT
€ 705.00
5110418E00
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111018E00
ref: 1
TUBE,INNER,RIGHT
€ 395.50
2
5112018E00
ref: 2
TUBE,INNER,LEFT
€ 517.00
3
5112148B31
ref: 3
BUSH,SLIDE
€ 15.50
4
5183017E00
ref: 4
51830-07D00
PIECE,ADJUSTER
€ 71.00
5
5183417C00
ref: 5
09280-14011
O RING
€ 3.50
6
5211018E00
ref: 6
DAMPER,FRONT
€ 0.00
7
5181517D00
ref: 7
PLATE,CENTERING
€ 9.50
8
5119218E00
ref: 8
JOINT,SPRING,LOWER
€ 0.00
9
5119618E00
ref: 9
RING,FRONT FORK PISTON
€ 4.50
10
5119718E00
ref: 10
SPACER,SPRING LWR
€ 0.00
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12
5114717C00
ref: 12
BOLT
€ 21.00
13
0155008507
ref: 13
BOLT
€ 3.50
14
5182717C00
ref: 14
NUT
€ 10.50
15
5117117E00
ref: 15
SPRING,MAIN
€ 97.50
16
5117217E00
ref: 16
JOINT,SPRING
€ 25.00
17
5117618E00
ref: 17
SPACER,SPRING
€ 12.00
18
5117522D00
ref: 18
GUIDE,SPRING UPR
€ 15.00
19
5117234370
ref: 19
GUIDE,SPRING
€ 3.50
20
5113118E00
ref: 20
TUBE,OUTER
€ 248.00
21
5115208D00
ref: 21
BUSH,GUIDE
€ 19.00
22
5116838B00
ref: 22
SPACER,SEAL
€ 5.00
23
5115308D00
ref: 23
SEAL,OIL
€ 15.50
24
5155638B00
ref: 24
CIRCLIP,FORK OIL SEAL
€ 4.50
25
5117308D00
ref: 25
51173-15D00
DUST SEAL,FRONT FORK
€ 19.50
26
5119317D00
ref: 26
RUBBER,SEAT
€ 13.00
27
5118918D00
ref: 27
BOLT,FORK
€ 79.00
28
5118708D00
ref: 28
O RING,FORK BOLT
€ 6.00
29
5182817D00
ref: 29
ADJUSTER,SPRING
€ 42.50
30
5119917D00
ref: 30
O RING
€ 6.00
31
5182322D30
ref: 31
PLATE,SPRING ADJUSTER
€ 33.50
32
5182917E00
ref: 32
CASE,ADJUSTER
€ 69.50
33
5182117E00
ref: 33
PIECE,ADJUSTER UPR
€ 28.50
34
5182417C00
ref: 34
09280-03002
O RING
€ 2.00
35
5183717D00
ref: 35
RING,STOPPER
€ 6.00
36-1
5159017D10
ref: 36-1
51590-17D1V
PLATE,FRONT FENDER,LEFT
€ 10.00
36-2
5158017D10
ref: 36-2
51580-17D1V
PLATE,FRONT FENDER,RIGHT
€ 11.50
37
0155008127
ref: 37
BOLT
€ 3.50
