SIGNAL GENERATOR

GSXR750W 1994 (R) USA (E03)

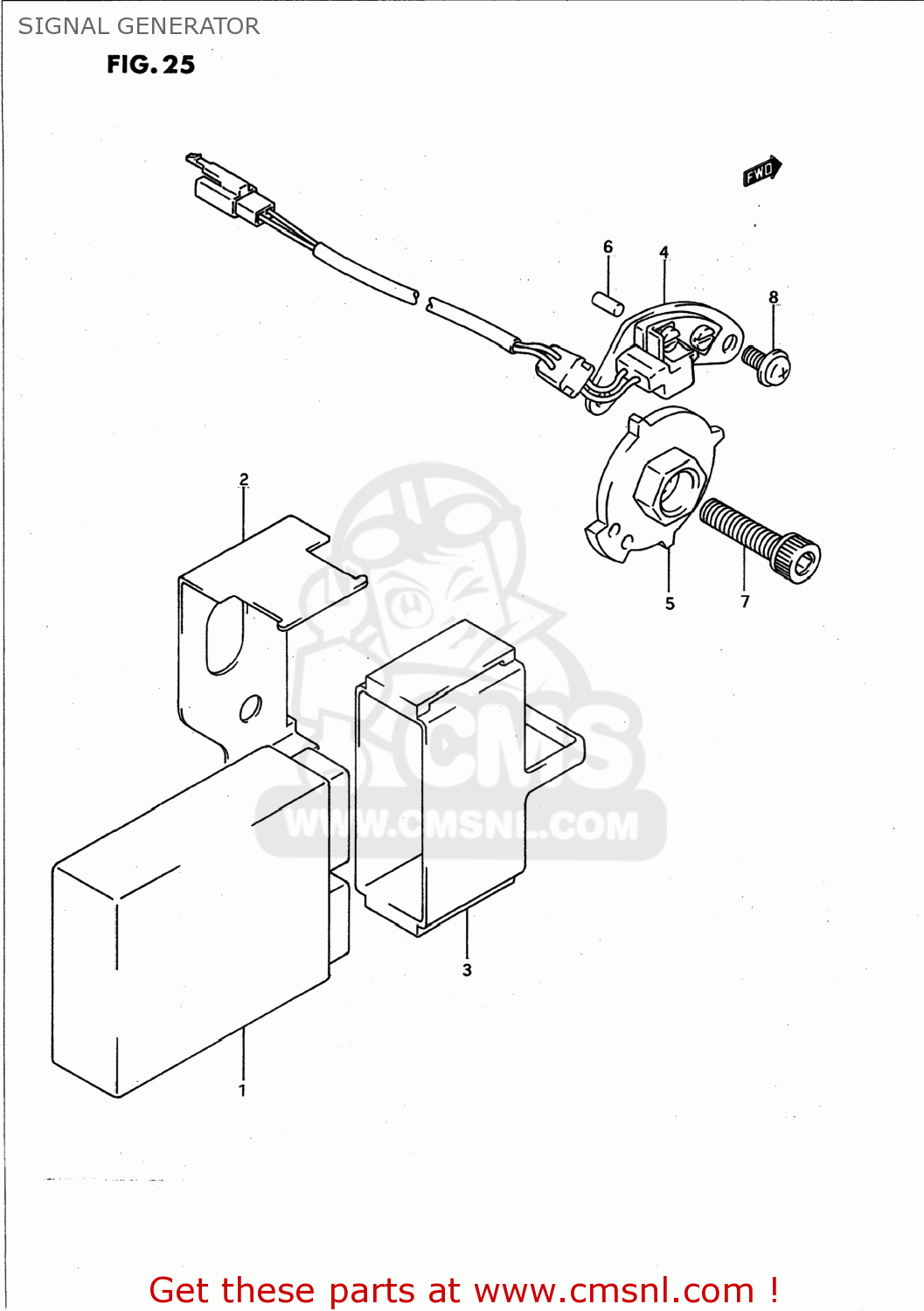

Signal generator diagram GSXR750W 1994 (R) USA (E03)

SIGNAL GENERATOR GSXR750W 1994 (R) USA (E03)

SIGNAL GENERATOR GSXR750W 1994 (R) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290017E00
ref: 1-1

IGNITOR ASSY

€ 514.00

1-2

3290017E60
ref: 1-2

IGNITER ASSEMBLY

€ 0.00

1-3

3290017E10
ref: 1-3
32900-21E30

IGNITER ASSEMBLY

€ 457.00

1-4

3290017E90
ref: 1-4

IGNITER ASSEMBLY

€ 755.50

2

3293117E00
ref: 2

BRACKET,IGNITOR

€ 28.50

3

3298040C01
ref: 3

CUSHION,IGNITOR

€ 9.50

4

3311017E00
ref: 4

STARTER,SIGNAL GENERATOR

€ 203.50

5-1

3312017E00
ref: 5-1
33120-17E20

ROTOR,SIGNAL GENERATOR

€ 115.00

5-2

3312017E10
ref: 5-2

ROTOR,SIGNAL GENERATOR

€ 62.00

5-3

3312017E20
ref: 5-3

ROTOR,SIGNAL GENERATOR

€ 115.00

6

0422104089
ref: 6

PIN

€ 1.50

7-1

0711008306
ref: 7-1
07130-0830A

BOLT

€ 3.00

7-2

0713008303
ref: 7-2
07130-0830A

BOLT

€ 3.00

8-1

0215205108
ref: 8-1
02142-05107

SCREW

€ 2.50

8-2

0214205103
ref: 8-2
02142-0510B

SCREW

€ 2.50
