THROTTLE BODY HOSE/JOINT
GSXR750X 2004 (K4) USA (E03)

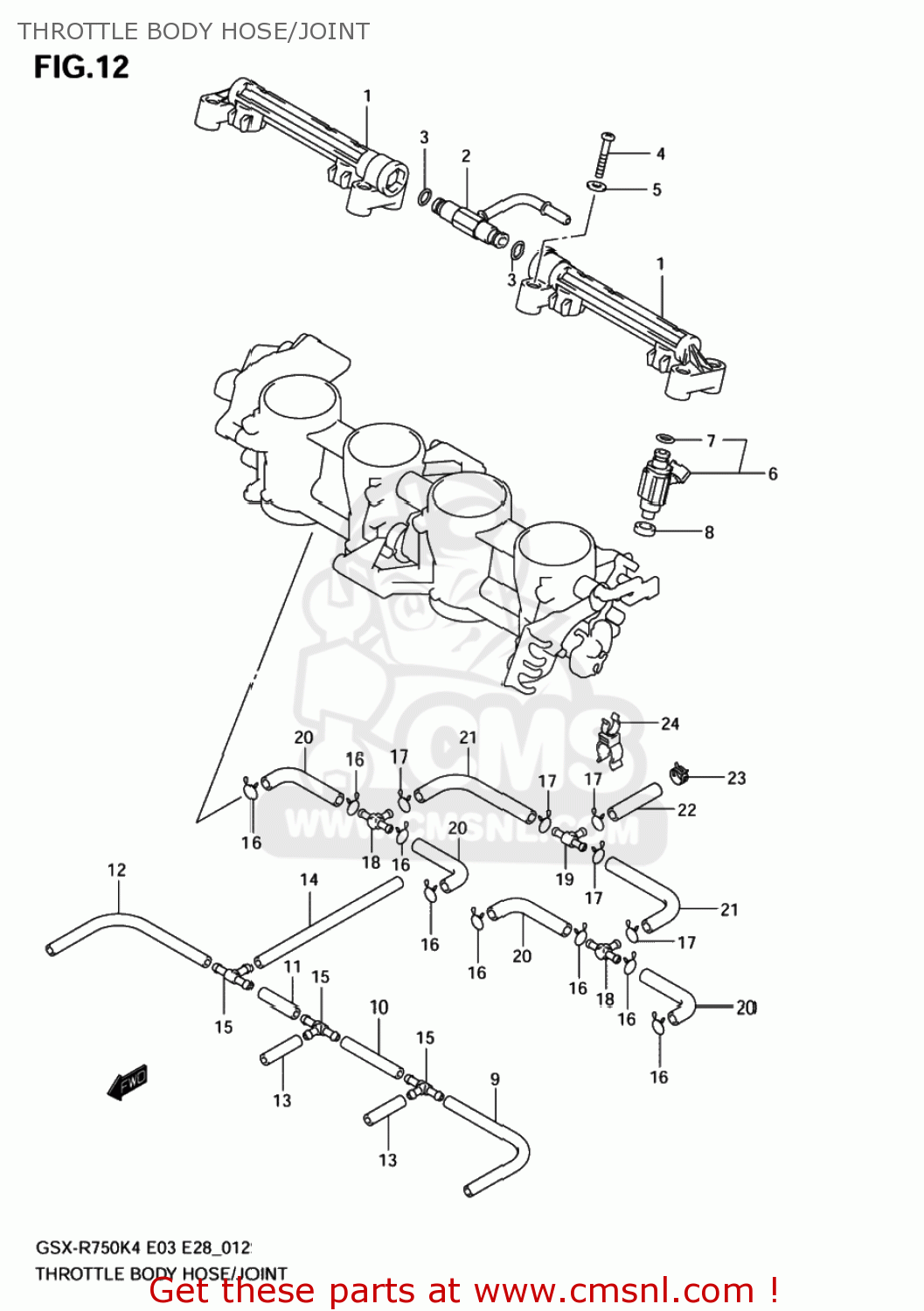

Throttle body hose/joint diagram GSXR750X 2004 (K4) USA (E03)
THROTTLE BODY HOSE/JOINT GSXR750X 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1347129G00
ref: 1
DELIVERY PIPE
€ 42.50
2
1347329G00
ref: 2
NIPPLE ASSY
€ 56.50
3
1572129G00
ref: 3
O RING
€ 6.00
4
1360129G00
ref: 4
SCREW
€ 2.50
5
1360229G00
ref: 5
PACKING (NAS)
€ 2.00
6
1571017G00
ref: 6
INJECTOR ASSY
€ 311.00
7
1571716G00
ref: 7
O RING
€ 9.50
8
1572229G00
ref: 8
SEAL
€ 9.50
9
1368139F00225
ref: 9
HOSE(3.2X7.4X225)
€ 11.50
10
1368139F00225
ref: 10
HOSE(3.2X7.4X225)
€ 11.50
11
1368139F00225
ref: 11
HOSE(3.2X7.4X225)
€ 11.50
12
1368139F00225
ref: 12
HOSE(3.2X7.4X225)
€ 11.50
13
1368139F00225
ref: 13
HOSE(3.2X7.4X225)
€ 11.50
14
1368139F00225
ref: 14
HOSE(3.2X7.4X225)
€ 11.50
15
1368502FA0
ref: 15
3WAY,VACUUM HOSE
€ 4.50
16
1367129G00
ref: 16
CLIP
€ 3.00
17
1367106A10
ref: 17
CLIP
€ 3.00
18
1368529G00
ref: 18
NIPPLE
€ 10.50
19
1368548B00
ref: 19
NIPPLE
€ 9.00
20
1368329G10
ref: 20
HOSE
€ 0.00
21
1368329G30
ref: 21
HOSE
€ 0.00
22
1368329G20
ref: 22
HOSE
€ 0.00
23
0940109403
ref: 23
CLIP
€ 2.50
24
0940800174
ref: 24
CLAMP
€ 3.50
