TRANSMISSION
GSXR750X 2004 (K4) USA (E03)

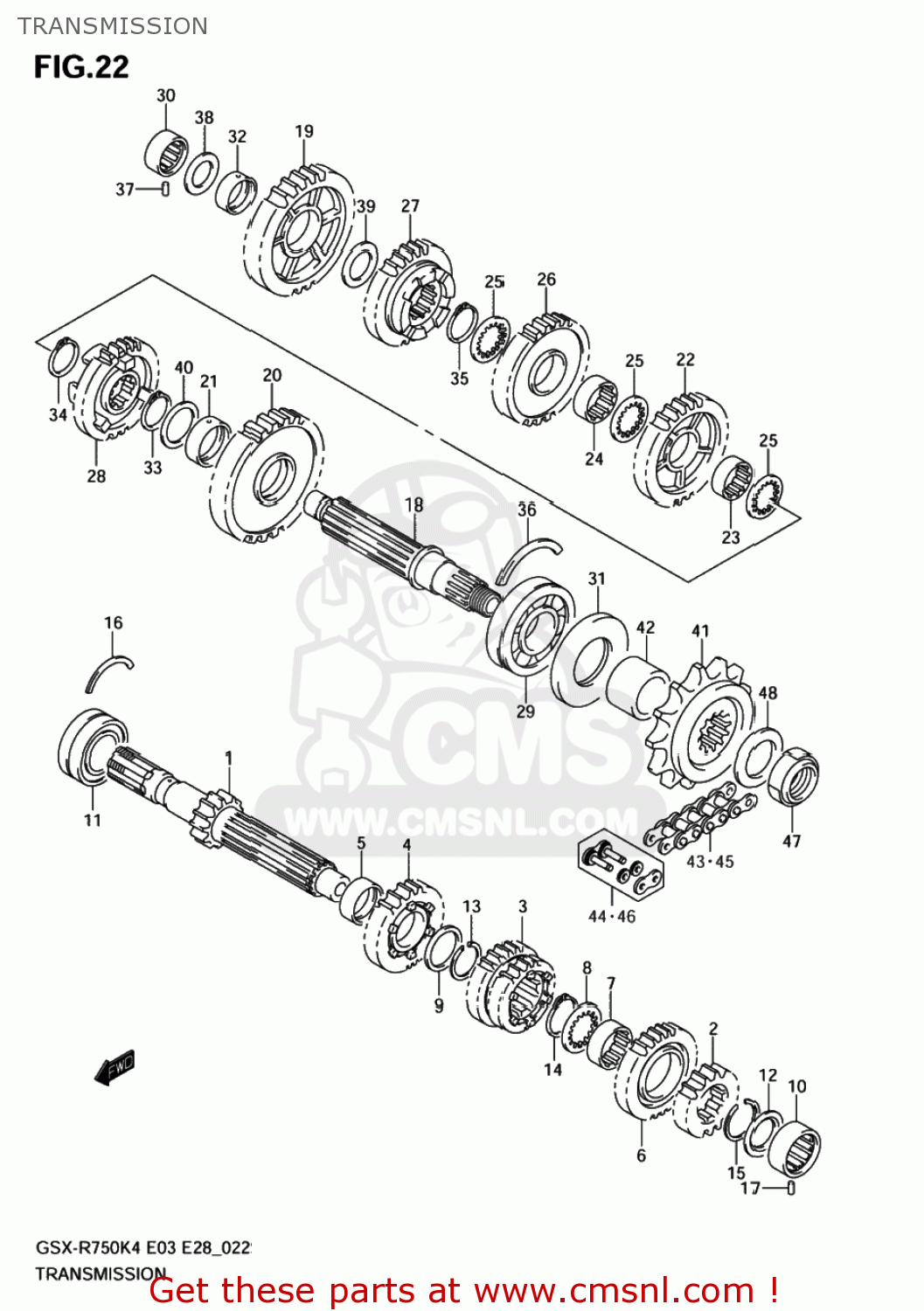

Transmission diagram GSXR750X 2004 (K4) USA (E03)
TRANSMISSION GSXR750X 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412035F00
ref: 1
24120-35F10
SHAFT,COUNTER
€ 255.00
2
2422135F00
ref: 2
GEAR,2ND DRIVE
€ 68.00
3
2423135F00
ref: 3
24231-35F01
GEAR,THIRD & FOURTH DRIVE
€ 109.50
4
2425135F20
ref: 4
24251-35F21
GEAR,5TH DRIVE
€ 136.00
5
2425235F00
ref: 5
BUSH,5TH DRIVE GEAR
€ 13.00
6
2426135F01
ref: 6
24261-35F02
GEAR,6TH DRIVE
€ 136.00
7
2426235F00
ref: 7
BUSH,6TH DRIVE GEAR
€ 19.50
8
0916727003
ref: 8
WASHER,LOCK
€ 5.00
9
0918127014
ref: 9
SHIM(27X36X2.5)
€ 6.00
10
0926320087
ref: 10
BEARING(20X34X13.5)
€ 31.50
11
0926725013
ref: 11
BEARING(25X52X20.6)
€ 67.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
0938027006
ref: 13
CIRCLIP
€ 2.50
14
0938027006
ref: 14
CIRCLIP
€ 2.50
15
0938027004
ref: 15
CIRCLIP
€ 3.50
16
0939058001
ref: 16
C RING
€ 2.00
17
0926106003
ref: 17
PIN(6X10)
€ 1.50
18
2413135F00
ref: 18
24131-35F01
SHAFT,DRIVE
€ 250.00
19
2431135F10
ref: 19
24311-35F20
GEAR,1ST DRIVE
€ 105.00
20
2432135F10
ref: 20
24321-35F11
GEAR,2ND DRIVE
€ 88.50
21
2432235F00
ref: 21
BUSH,2ND DRIVEN GEAR
€ 11.50
22
2433135F10
ref: 22
GEAR,3RD DRIVEN(NT:37)
€ 98.00
23
2433235F00
ref: 23
BUSH,3RD DRIVEN GEAR
€ 15.00
24
2433235F00
ref: 24
BUSH,3RD DRIVEN GEAR
€ 15.00
25
2433302F00
ref: 25
WASHER,3RD & 4TH DRIVEN
€ 3.50
26
2434135F10
ref: 26
GEAR,4TH DRIVEN(NT:29)
€ 101.00
27
2435135F10
ref: 27
GEAR,5TH DRIVEN
€ 99.50
28
2436135F10
ref: 28
GEAR,6TH DRIVEN
€ 135.00
29
0926228025
ref: 29
BEARING(28X70X18)
€ 97.50
30
0926320087
ref: 30
BEARING(20X34X13.5)
€ 31.50
31
0928336008
ref: 31
SEAL,OIL(34.8X70X6)
€ 16.50
32
0930022008
ref: 32
BUSH(22X26X9)
€ 10.50
33
0938027006
ref: 33
CIRCLIP
€ 2.50
34
0938027006
ref: 34
CIRCLIP
€ 2.50
35
0938027006
ref: 35
CIRCLIP
€ 2.50
36
0939070001
ref: 36
C RING
€ 5.50
37
0926106003
ref: 37
PIN(6X10)
€ 1.50
38
0918120251
ref: 38
SHIM(20X34X1)
€ 3.00
39
0918122223
ref: 39
SHIM(22X34X1)
€ 3.00
40
0916027008
ref: 40
WASHER(27X36X1)
€ 3.00
41
2751020A20
ref: 41
SPROCKET,ENGINE(17T)
€ 38.50
42
2753135F00
ref: 42
SPACER,ENGINE SPROCKET
€ 16.00
43
2760033E20110
ref: 43
CHAIN,DRIVE
€ 195.00
44
2762033E20
ref: 44
JOINT SET,DRIVE CHAIN
€ 10.50
44
2762033E20
ref: 44
JOINT SET,DRIVE CHAIN
€ 10.50
45
2760033E30110
ref: 45
CHAIN,DRIVE
€ 240.00
46
2762033E30
ref: 46
JOINT SET,DRIVE CHAIN
€ 9.50
46
2762033E30
ref: 46
JOINT SET,DRIVE CHAIN
€ 9.50
47
0915920004
ref: 47
NUT
€ 12.00
48
0916025009
ref: 48
WASHER(25X41X3)
€ 5.00
