REAR BRAKE

GV1400GC CAVALCADE 1988 (J) USA (E03)

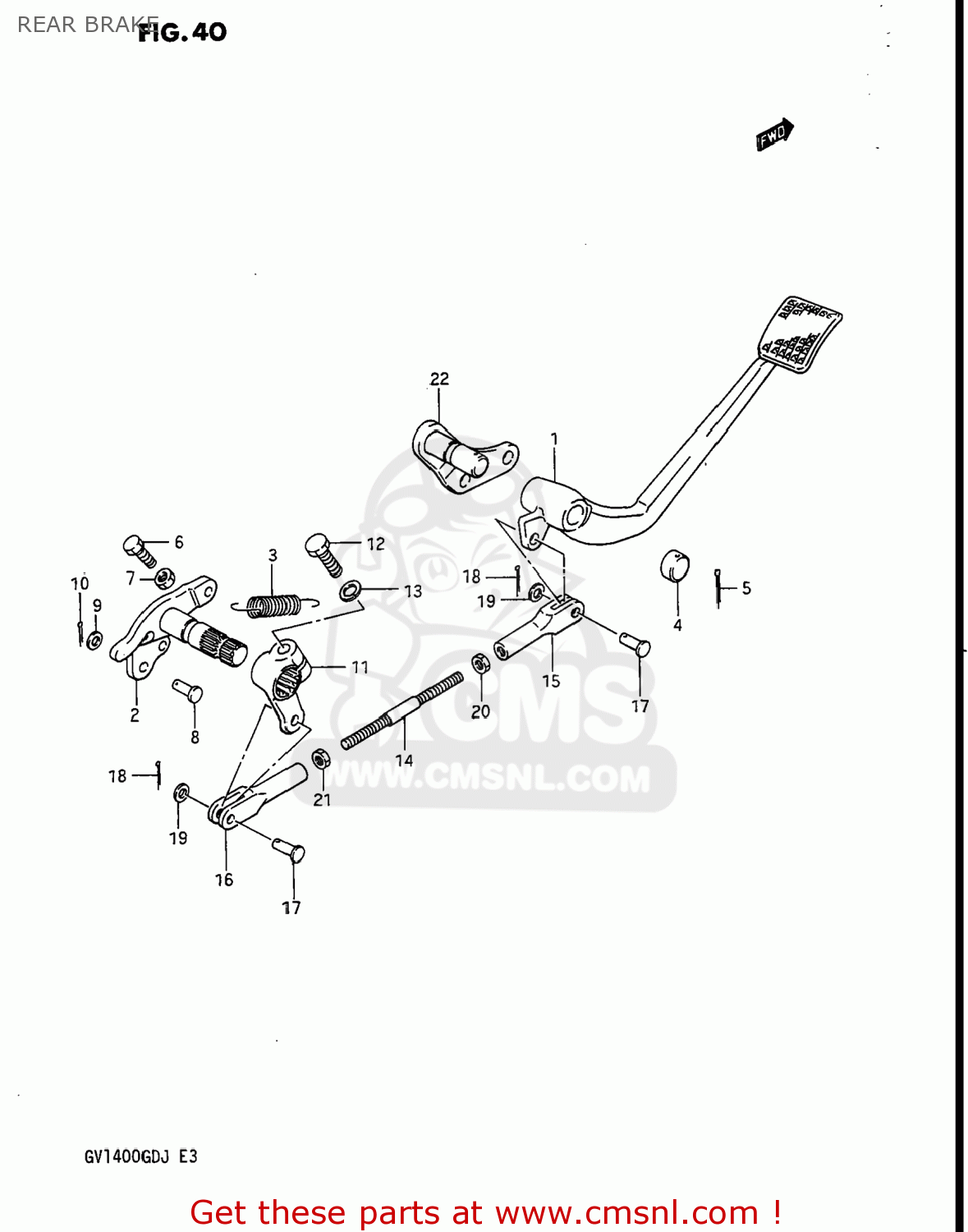

Rear brake diagram GV1400GC CAVALCADE 1988 (J) USA (E03)

REAR BRAKE GV1400GC CAVALCADE 1988 (J) USA (E03)

REAR BRAKE GV1400GC CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311024A00
ref: 1

PEDAL COMP,BRAKE

€ 63.00

2

4312024A01
ref: 2

ARM,REAR MASTER CYLINDER

€ 22.50

3

0944314046
ref: 3

SPRING

€ 5.00

4

4313507A01
ref: 4
43135-07A02

CAP,BRAKE PEDAL

€ 7.00

5

0411130308
ref: 5
04111-3030A

COTTER PIN

€ 1.50

6

0910006009
ref: 6

BOLT(6X23)

€ 1.50

7

0831011067
ref: 7
08310-00067

NUT 6MM

€ 2.50

8

0920006037
ref: 8
09200-06068

PIN

€ 5.00

9

0832221067
ref: 9
08322-01067

WASHER

€ 2.00

10

0411120158
ref: 10
04111-2015A

PIN

€ 1.50

11-1

4326124A01
ref: 11-1
43261-24A02

ARM,BRAKE PEDAL LINK

€ 27.00

11-2

4326124A02
ref: 11-2

ARM,BRAKE PEDAL LINK

€ 27.00

12

0110708258
ref: 12
01500-08257

BOLT

€ 2.50

13

0832121088
ref: 13
08321-01087

LOCK WASHER

€ 2.00

14

4327124A00
ref: 14

LINK,BRAKE PEDAL

€ 7.50

15

4327224A00
ref: 15

JOINT,BRAKE PEDAL,FRONT

€ 22.50

16-1

4327324A00
ref: 16-1
43273-24A01

JOINT,BRAKE PEDAL,REAR

€ 24.00

16-2

4327324A01
ref: 16-2

JOINT,BRAKE PEDAL,REAR

€ 24.00

17

0920006037
ref: 17
09200-06068

PIN

€ 5.00

18

0411120208
ref: 18
04111-2020A

PIN 20X20

€ 1.50

19

0832221067
ref: 19
08322-01067

WASHER

€ 2.00

20

0915908058
ref: 20

NUT

€ 0.00

21

0831022088
ref: 21
08310-00087

NUT 8MM

€ 2.00

22-1

4314024A00
ref: 22-1
43140-24A01

BAR,BRAKE PEDAL BOSS

€ 19.00

22-2

4314024A01
ref: 22-2

BAR,BRAKE PEDAL BOSS

€ 19.00
