TRAVEL TRUNK RACK/TRIM SET (OPTIONAL)

GV1400GC CAVALCADE 1988 (J) USA (E03)

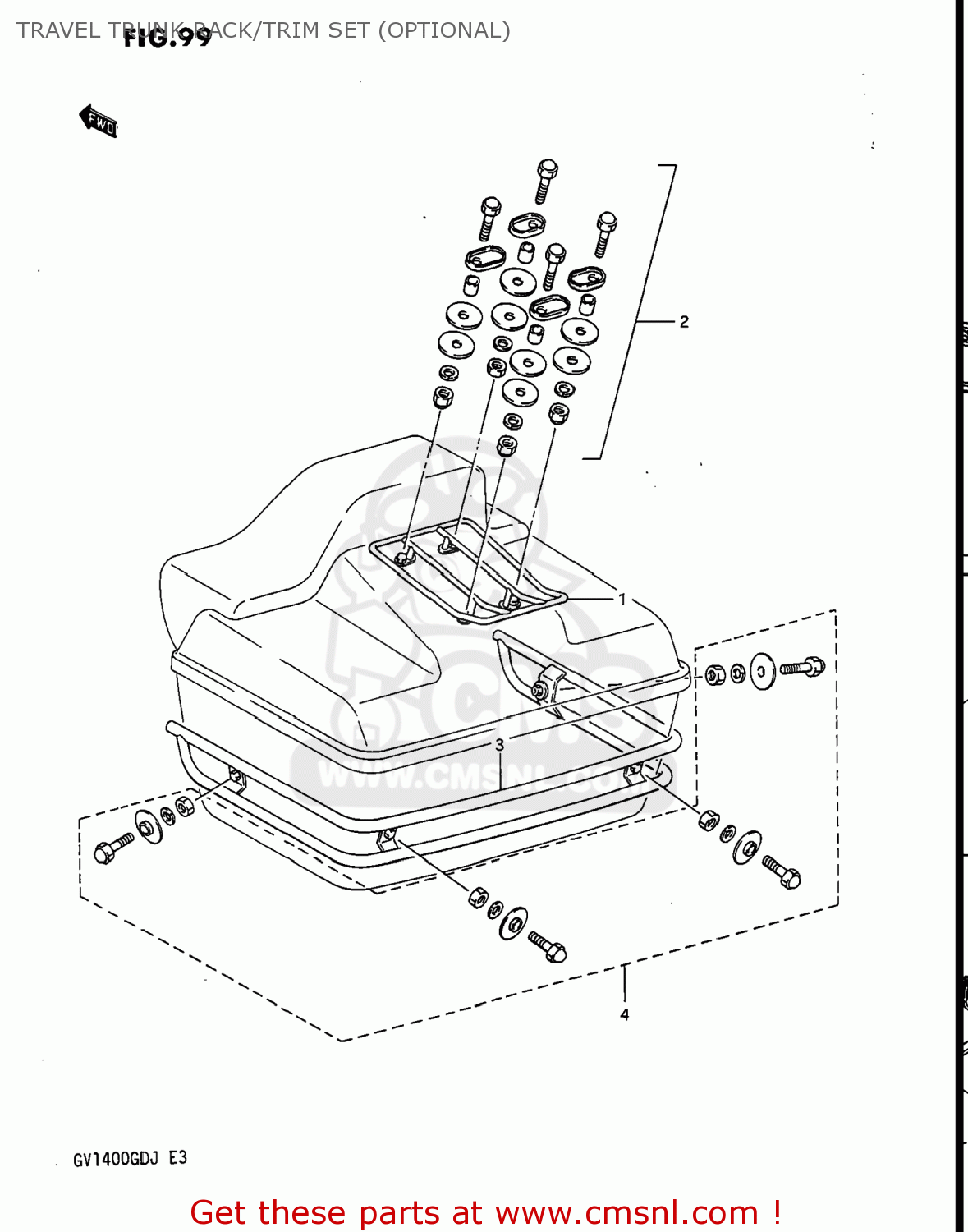

Travel trunk rack/trim set (optional) diagram GV1400GC CAVALCADE 1988 (J) USA (E03)

TRAVEL TRUNK RACK/TRIM SET (OPTIONAL) GV1400GC CAVALCADE 1988 (J) USA (E03)

TRAVEL TRUNK RACK/TRIM SET (OPTIONAL) GV1400GC CAVALCADE 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9583024A00
ref: 1

RACK SET, TRAVEL TRUNK

€ 141.50

2

9580024820
ref: 2

FITTING SET, TRUNK RACK

€ 0.00

3

9488024A00
ref: 3

TRIM SET, TRAVEL TRUNK

€ 158.50

4

9480024850
ref: 4

FITTING SET, TRUNK TRIM

€ 0.00
