CHAIN CASE

GZ250 MARAUDER 2001 (K1) USA (E03)

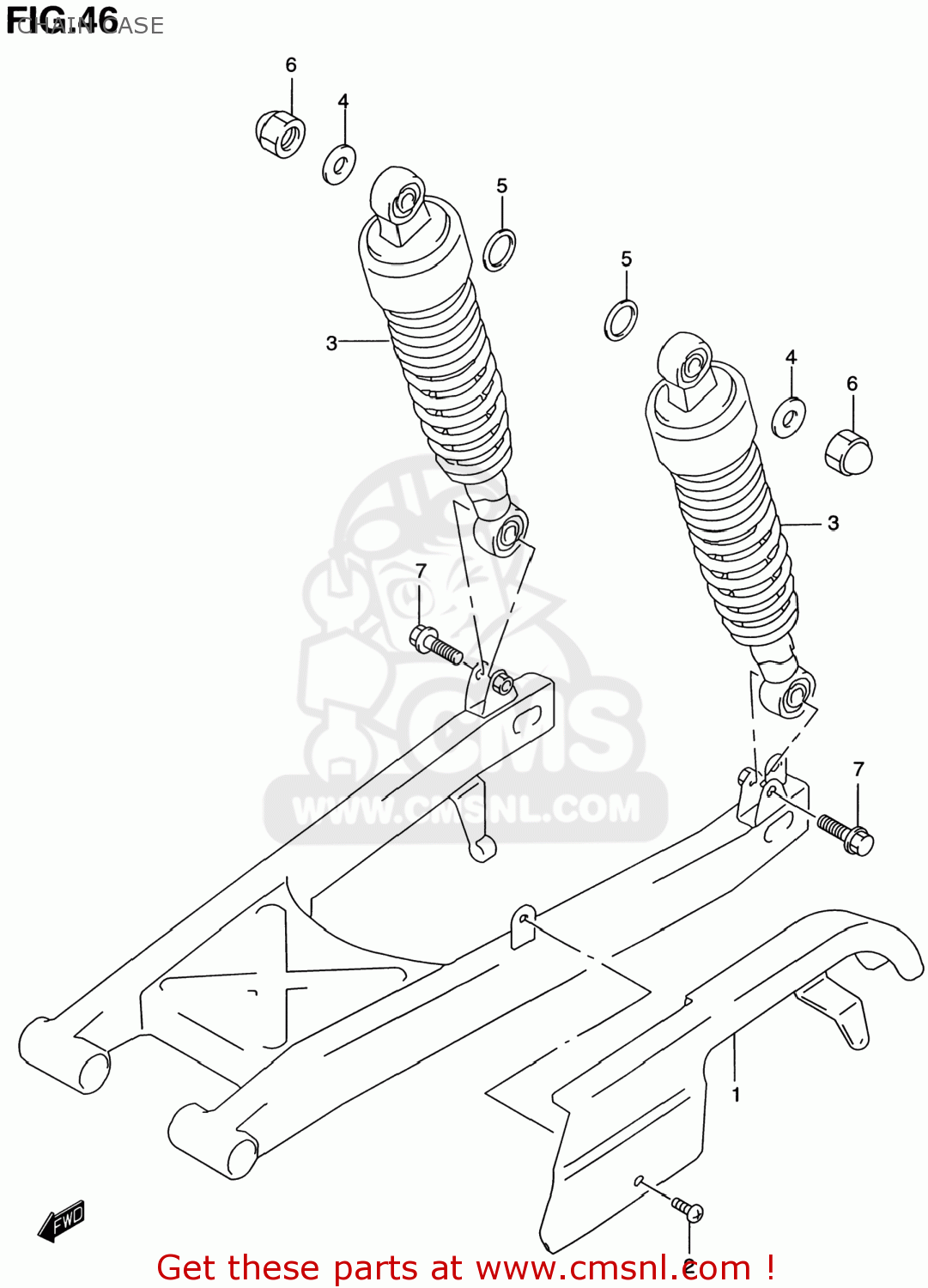

Chain case diagram GZ250 MARAUDER 2001 (K1) USA (E03)

CHAIN CASE GZ250 MARAUDER 2001 (K1) USA (E03)

CHAIN CASE GZ250 MARAUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6131012F00
ref: 1
61310-12FB0

CASE,CHAIN

€ 99.00

2

0214206107
ref: 2

SCREW

€ 2.00

3

6210013F00
ref: 3

ABSORBER ASSY,RR SHOCK

€ 203.00

4

0916010127
ref: 4
09160-10093

WASHER (10.5X24X2.3)

€ 2.00

5

0832201127
ref: 5

WASHER

€ 2.00

6

0831310107
ref: 6

NUT

€ 2.50

7

0910310019
ref: 7

BOLT(10X37)

€ 2.50
