FRAME COVER (MODEL Y

GZ250 MARAUDER 2001 (K1) USA (E03)

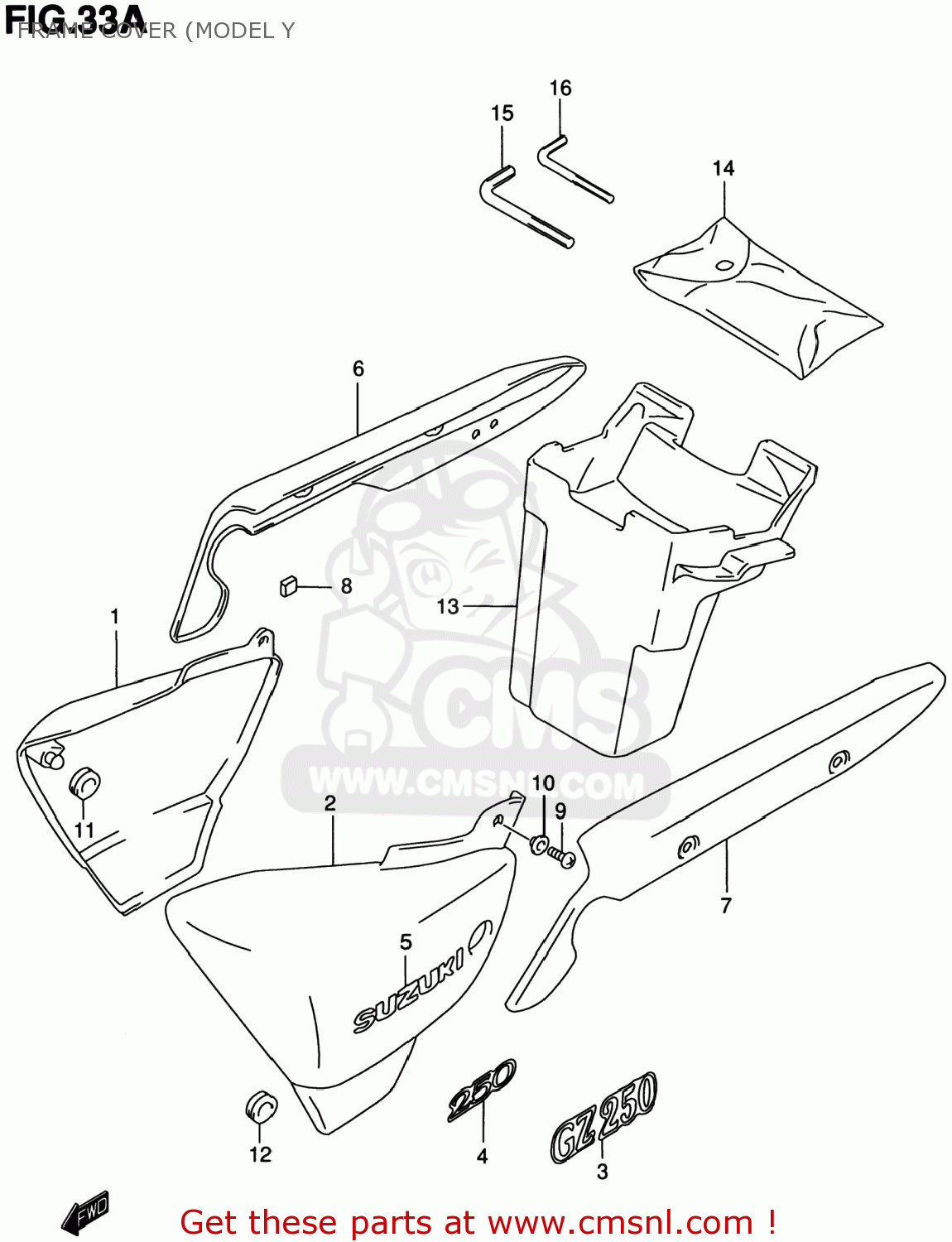

Frame cover (model y diagram GZ250 MARAUDER 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

4711112F00Y98
ref: 1

COVER,FRAME,R(GREEN)

€ 85.50

4721112F00Y98
ref: 2

COVER,FRAME,L(GREEN)

€ 60.50

6813112F20M7F
ref: 3

EMBLEM,FRAME COVER

€ 0.00

6813112F30K1B
ref: 4

EMBLEM,250

€ 11.00

6813112F00
ref: 5

EMBLEM,FRAME COVER

€ 40.50

4712112F00
ref: 6

COVER,FRAME RR,R

€ 75.00

4722112F00
ref: 7
47221-12FA0

COVER,FRAME RR,L

€ 67.50

5312333E00
ref: 8
33652-01D10

CUSHION

€ 3.00

0214206123
ref: 9
02142-0612A

SCREW 6X12

€ 2.00

0916906071
ref: 10

WASHER

€ 2.50

0932008018
ref: 11

CUSHION

€ 4.00

0932008013
ref: 12

CUSHION

€ 4.00

9221112F00
ref: 13
92211C12F01J000

BODY,LUGGAGE BOX

€ 25.50

0980021022
ref: 14

TOOL ASSY

€ 27.00

0981600050
ref: 15

SPANNER,HEXAGON(6)

€ 5.50

0981600103
ref: 16

SPANNER,HEXAGON(4)

€ 3.00
