CYLINDER HEAD
GZ250 MARAUDER 2001 (K1) USA (E03)

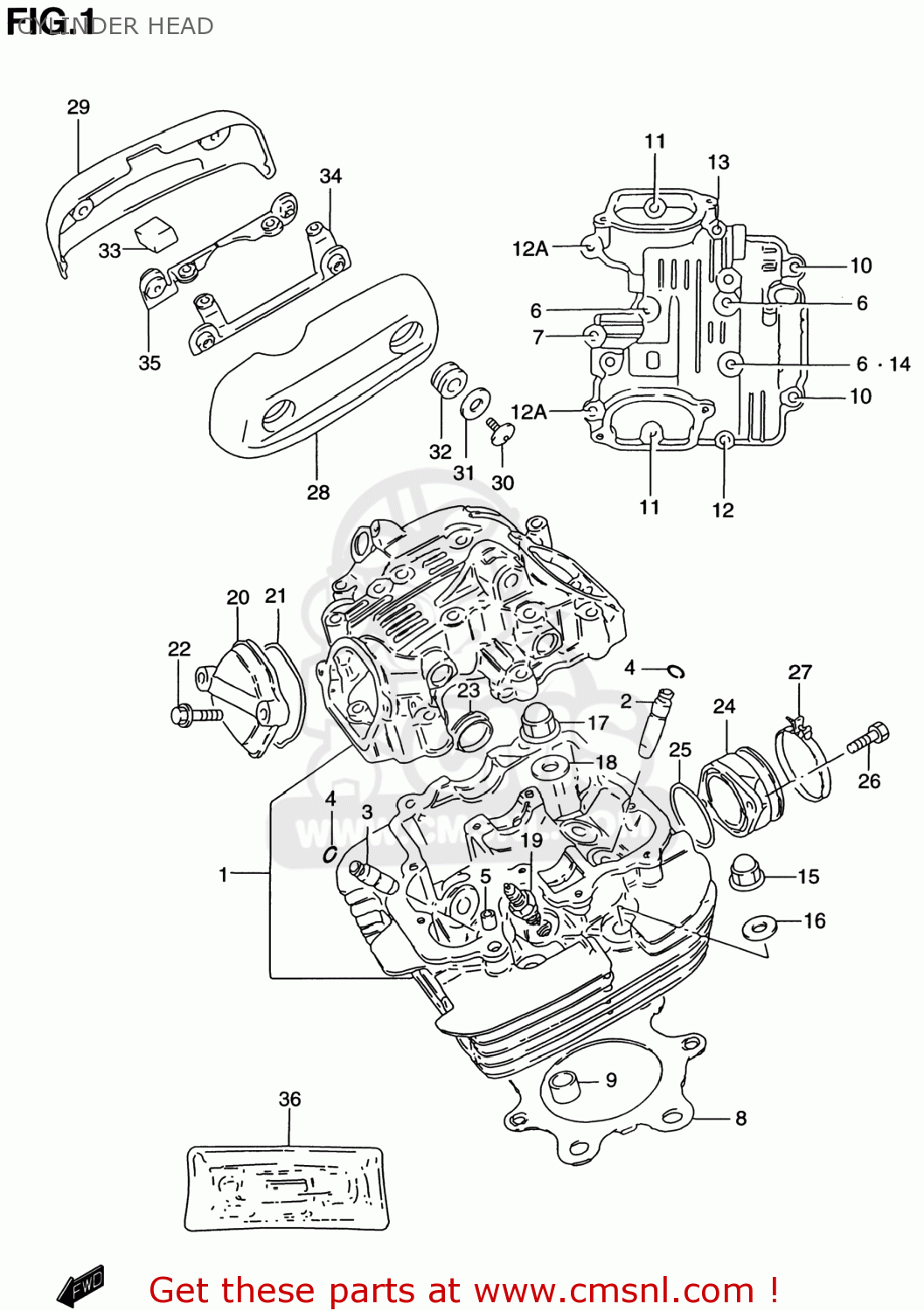

Cylinder head diagram GZ250 MARAUDER 2001 (K1) USA (E03)
CYLINDER HEAD GZ250 MARAUDER 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110025D00
ref: 1-1
11100-25D02
HEAD ASSEMBLY,CYLINDER
€ 1,157.50
1-2
1110025D01
ref: 1-2
11100-25D02
HEAD ASSEMBLY,CYLINDER
€ 1,157.50
2
1111538270
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111505270
ref: 3
GUIDE,VALVE
€ 18.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
0155006607
ref: 6-1
BOLT
€ 2.50
6-2
0155006603
ref: 6-2
01550-0660A
BOLT
€ 2.50
7-1
0155006307
ref: 7-1
BOLT
€ 2.00
7-2
0155006303
ref: 7-2
01550-0630A
BOLT
€ 2.50
8
1114138201
ref: 8
11141-25D11
GASKET,CYLINDER HEAD (NAS)
€ 37.50
9
0421113189
ref: 9
PIN
€ 2.50
10
0910306148
ref: 10
BOLT(6X120)
€ 5.00
11-1
0155006307
ref: 11-1
BOLT
€ 2.00
11-2
0155006303
ref: 11-2
01550-0630A
BOLT
€ 2.50
12-1
0155006457
ref: 12-1
BOLT
€ 2.50
12A-1
0155006507
ref: 12A-1
BOLT
€ 2.00
12-2
0155006453
ref: 12-2
01550-0645A
BOLT (6X45)
€ 2.50
12A-2
0155006503
ref: 12A-2
01550-0650A
BOLT
€ 2.00
13-1
0155006607
ref: 13-1
BOLT
€ 2.50
13-2
0155006603
ref: 13-2
01550-0660A
BOLT
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0915910026
ref: 15
NUT
€ 6.00
16
0916010060
ref: 16
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
17
0915910069
ref: 17
NUT
€ 5.00
18
0916810017
ref: 18
GASKET(10.5X22X2) (NAS)
€ 3.50
19-1
0948200399
ref: 19-1
PLUG,SPARK(DR8EA)
€ 3.50
19-2
0948200223
ref: 19-2
PLUG,SPARK(X24ESR-U)
€ 3.50
20
1117538202
ref: 20
CAP,INSPECTION
€ 23.50
21
0928055003
ref: 21
O RING(D:2.4,ID:23)
€ 4.50
22-1
0155006257
ref: 22-1
BOLT
€ 2.50
22-2
0155006253
ref: 22-2
01550-0625A
BOLT
€ 2.50
23
0924130004
ref: 23
PLUG(OD:30)
€ 6.50
24
1311013F00
ref: 24
PIPE,INTAKE
€ 38.00
25
0928040010
ref: 25
O RING(D:2.4,ID:39.7)
€ 3.50
26
0212206163
ref: 26
02122-0616A
SCREW ,6X16
€ 2.00
27
0940248208
ref: 27
CLAMP
€ 4.50
28
1117113F00
ref: 28
CAP,CYLINDER HEAD COVER,L
€ 113.50
29
1117213F00
ref: 29
CAP,CYLINDER HEAD COVER,R
€ 113.50
30
1117812F10
ref: 30
BOLT
€ 5.50
31
0916006134
ref: 31
WASHER(6.5X24X1.6)
€ 1.50
32
0932013015
ref: 32
CUSHION
€ 3.00
33
1117813F00
ref: 33
DAMPER,HEAD CAP,R
€ 6.50
34
1117913F00
ref: 34
11179-13F01
BRACKET COMP,HEAD CAP
€ 36.50
35
1117913F10
ref: 35
11179-13F11
BRACKET COMP,HEAD CAP
€ 19.50
36
1140113821
ref: 36
11401-13823
GASKET SET (NAS)
€ 97.00
