REAR BRAKE
JR50 1992 (N) USA (E03)

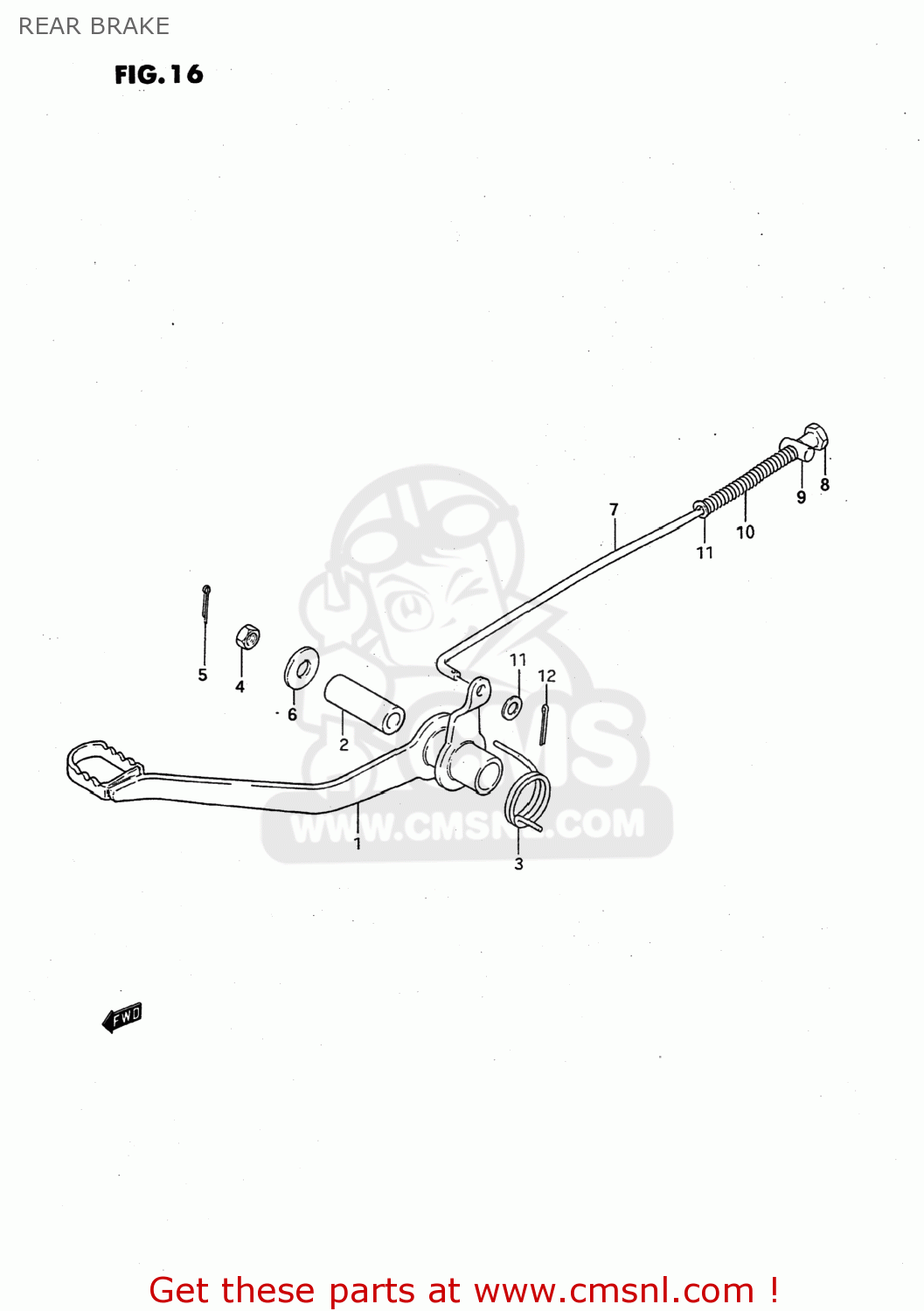

Rear brake diagram JR50 1992 (N) USA (E03)
REAR BRAKE JR50 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311004410
ref: 1
PEDAL,BRAKE
€ 12.00
2
4318104411
ref: 2
SPACER,BRAKE PEDAL
€ 3.50
3
4318204410
ref: 3
SPRING,BRAKE PEDAL RETURN
€ 6.50
4-1
0831431108
ref: 4-1
08314-3110A
NUT
€ 1.50
4-2
0914110006
ref: 4-2
NUT
€ 2.50
5
0411125208
ref: 5
04111-2520A
PIN 25X20
€ 2.00
6-1
0832221108
ref: 6-1
08322-01107
WASHER
€ 2.50
6-2
0916010119
ref: 6-2
09160-10143
WASHER(10.5X22X1.6)
€ 2.00
7
4330004410
ref: 7
ROD ASSY,RR BRAKE
€ 6.00
8
0915005003
ref: 8
NUT
€ 3.50
9
0920910001
ref: 9
PIN,10X19
€ 2.00
10
0944009004
ref: 10
SPRING
€ 2.00
11
0832201057
ref: 11
WASHER
€ 2.50
12
0411120158
ref: 12
04111-2015A
PIN
€ 1.50
