REAR WHEEL
JR50 1992 (N) USA (E03)

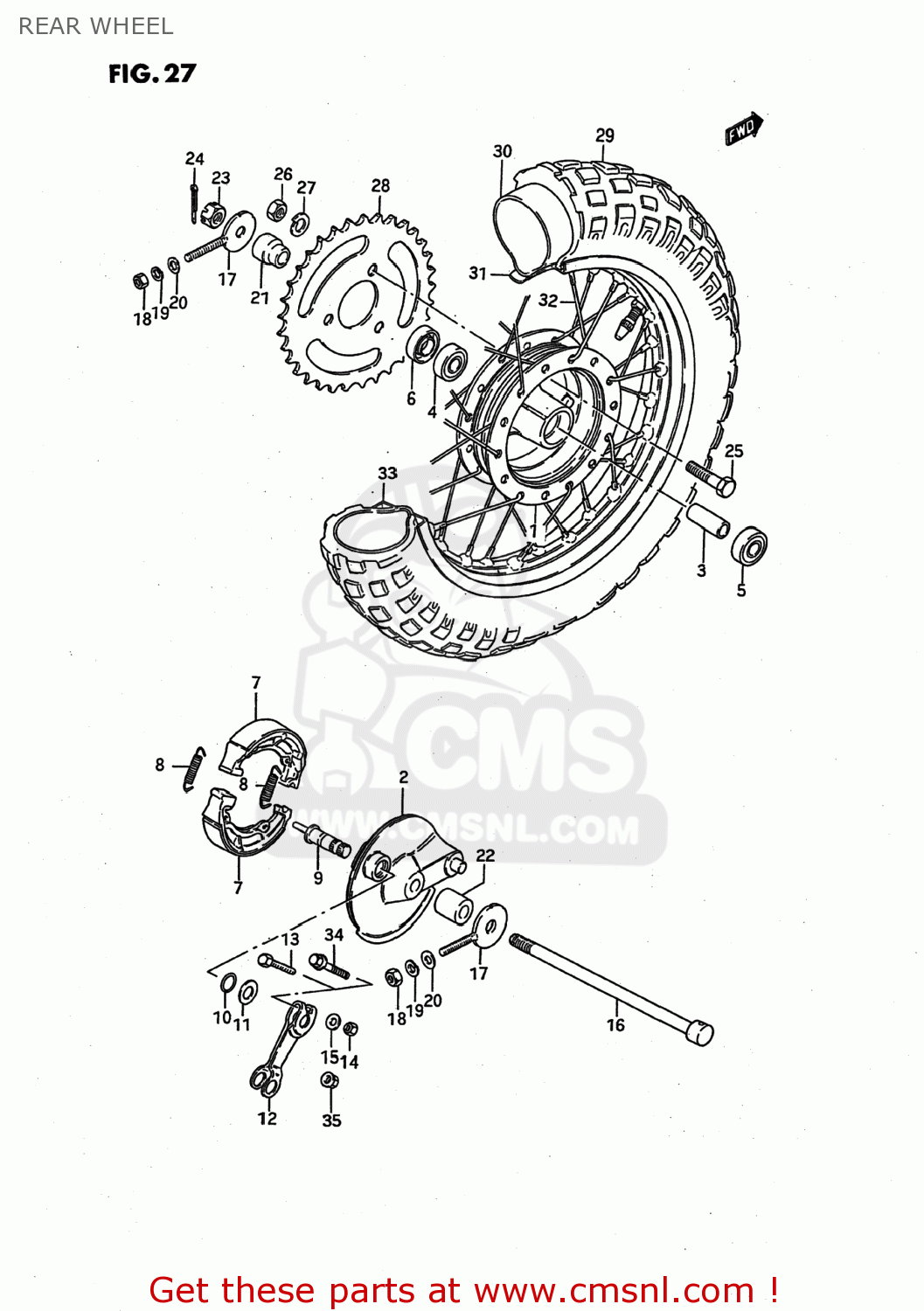

Rear wheel diagram JR50 1992 (N) USA (E03)
REAR WHEEL JR50 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411004400
ref: 1
HUB,RR WHEEL
€ 157.00
2
6421004400
ref: 2
PANEL,RR BRAKE ANCHOR
€ 36.50
3
0918010013
ref: 3
09180-10149
SPACER (10.2X16X55)
€ 4.50
4
0811360000
ref: 4
09262-10015
BALL BEARING K
€ 12.00
5
0814360007
ref: 5
BEARING
€ 8.50
6
0928415004
ref: 6
SEAL,OIL(15X27X6)
€ 4.50
7-1
5441004002
ref: 7-1
64400-04811
SHOE,BRAKE
€ 19.00
7-2
6441004201
ref: 7-2
64400-04811
SHOE SET,BRAKE (NAS)
€ 19.00
8
0944307025
ref: 8
SPRING(L:35.8)
€ 2.50
9-1
5444104000
ref: 9-1
54441-04001
CAM,FRONT BRAKE
€ 8.50
9-2
5444104001
ref: 9-2
CAM,BRAKE
€ 8.50
10
0928010006
ref: 10
09280-10013
O RING(D:2.4,ID:9.8)
€ 5.50
11
0916010026
ref: 11
09160-10121
WASHER (10.5X18X1)
€ 2.00
12
6445104000
ref: 12
LEVER,RR BRAKE CAM
€ 24.50
13
0110705258
ref: 13
01500-05253
BOLT
€ 2.00
14
0831011057
ref: 14
08310-00057
NUT 5MM
€ 2.50
15
0832221057
ref: 15
08322-01057
WASHER
€ 2.50
16
5471104410
ref: 16
AXLE,RR
€ 27.50
17
6141104000
ref: 17
ADJUSTER,CHAIN
€ 4.50
18-1
0831011067
ref: 18-1
08310-00067
NUT 6MM
€ 2.50
18-2
0831000063
ref: 18-2
08310-0006A
NUT 6MM
€ 2.00
19-1
0832121067
ref: 19-1
08321-01067
WASHER,LOCK
€ 2.50
19-2
0832101063
ref: 19-2
08321-0106A
LOCK WASHER
€ 2.00
20-1
0832221067
ref: 20-1
08322-01067
WASHER
€ 2.00
20-2
0832201063
ref: 20-2
08322-0106B
WASHER
€ 2.00
21
6475104410
ref: 21
SPACER,RR AXLE,L
€ 4.50
22
6474104410
ref: 22
SPACER,RR AXLE,R
€ 3.00
23-1
0831431108
ref: 23-1
08314-3110A
NUT
€ 1.50
23-2
0914110006
ref: 23-2
NUT
€ 2.50
24
0411120208
ref: 24
04111-2020A
PIN 20X20
€ 1.50
25
0910508011
ref: 25
BOLT(8X36)
€ 2.00
26-1
0831012088
ref: 26-1
08310-00087
NUT
€ 2.00
26-2
0831000083
ref: 26-2
08310-0008A
NUT
€ 1.50
27-1
0832121088
ref: 27-1
08321-01087
LOCK WASHER
€ 2.00
27-2
0916208008
ref: 27-2
WASHER,LOCK
€ 2.00
28
6451104411
ref: 28
SPROCKET,RR
€ 22.50
29
5510004410
ref: 29
TIRE
€ 141.50
30
5520004410
ref: 30
TUBE,INNER
€ 17.00
31
5526104410
ref: 31
PROTECTOR,INNER TUBE
€ 4.50
32
5530004820
ref: 32
SPOKE SET,RR
€ 51.50
33
5531104410
ref: 33
RIM,WHEEL
€ 269.00
34-1
0151705258
ref: 34-1
01550-0525A
BOLT
€ 1.50
34-2
0155005253
ref: 34-2
01550-0525A
BOLT
€ 1.50
35-1
0831616058
ref: 35-1
08316-1005A
NUT
€ 2.50
35-2
0831610053
ref: 35-2
08316-1005A
NUT
€ 2.50
