GEAR SHIFTING

JR50 1996 (T) USA (E03)

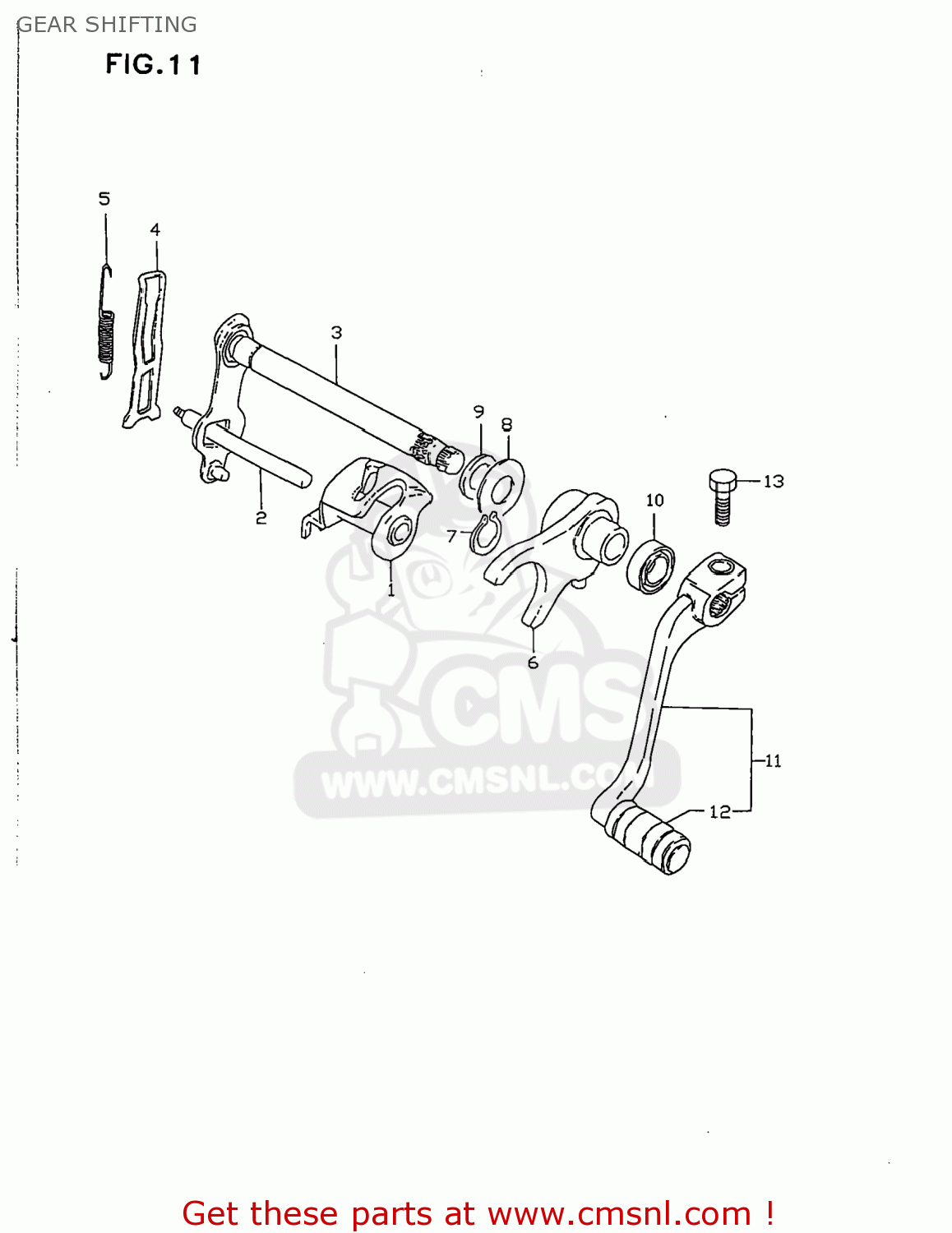

Gear shifting diagram JR50 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

2531004000
ref: 1-1
25310-04001

CAM,GEAR SHIFT

€ 32.50

1-2

2531004001
ref: 1-2

CAM,GEAR SHIFT

€ 32.50

2541104000
ref: 2

SHAFT,GEAR SHIFT CAM

€ 9.00

2551004401
ref: 3

SHAFT,GEAR SHIFT

€ 127.50

2535204000
ref: 4

ARM,GEAR SHIFT CAM STOPPER

€ 65.50

0944308008
ref: 5

SPRING

€ 3.00

2521004001
ref: 6
25211-04010

FORK,GEAR SHIFT NO.1

€ 36.50

0833131126
ref: 7
08331-3112A

CIRCLIP,12 MM

€ 2.00

0821112261
ref: 8

WASHER

€ 2.50

0821112205
ref: 9

WASHER

€ 3.00

0928512002
ref: 10
09285-12006

OIL SEAL

€ 7.00

2560029310
ref: 11

LEVER ASSY,GEAR SHIFT

€ 30.50

2565216500
ref: 12

RUBBER,GEAR SHIFT PEDAL

€ 4.00

0150006203
ref: 13
01500-0620A

BOLT

€ 2.00
