MAGNETO

JR50 1996 (T) USA (E03)

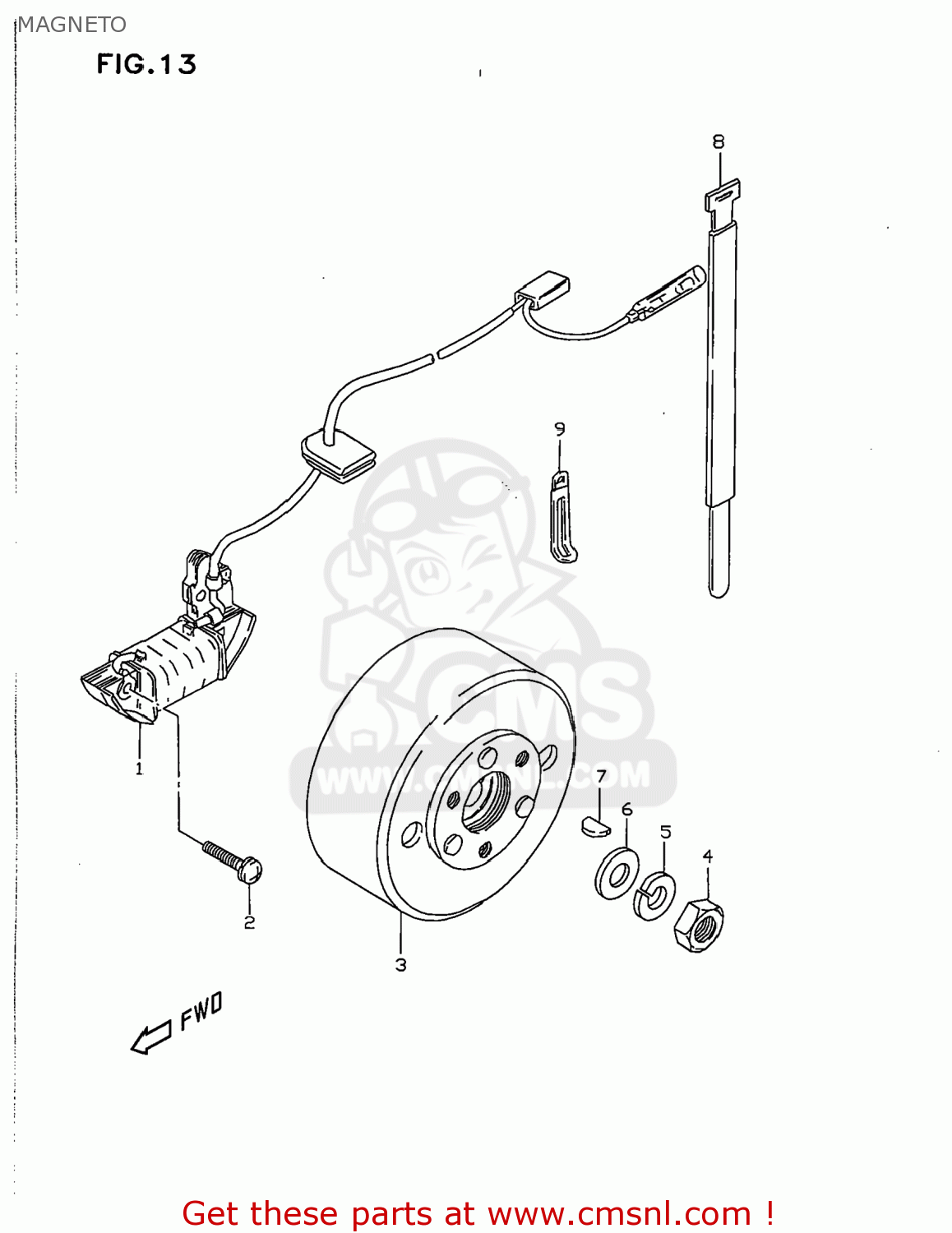

Magneto diagram JR50 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210104432
ref: 1

COIL ASSY,IGNITION PRIMARY

€ 95.50

0211234253
ref: 2
02112-3425B

SCREW

€ 2.00

3210204430
ref: 3

ROTOR ASSY

€ 275.00

0831000103
ref: 4
08310-0010A

NUT

€ 2.00

0832101103
ref: 5
08321-0110A

WASHER

€ 3.00

0832201103
ref: 6
08322-0110A

WASHER

€ 2.50

0834131039
ref: 7

KEY

€ 2.00

0940714301
ref: 8
09407-18301

CLAMP

€ 6.00

0940406429
ref: 9

CLAMP(L:45)

€ 2.50
