REAR BRAKE

JR50 1996 (T) USA (E03)

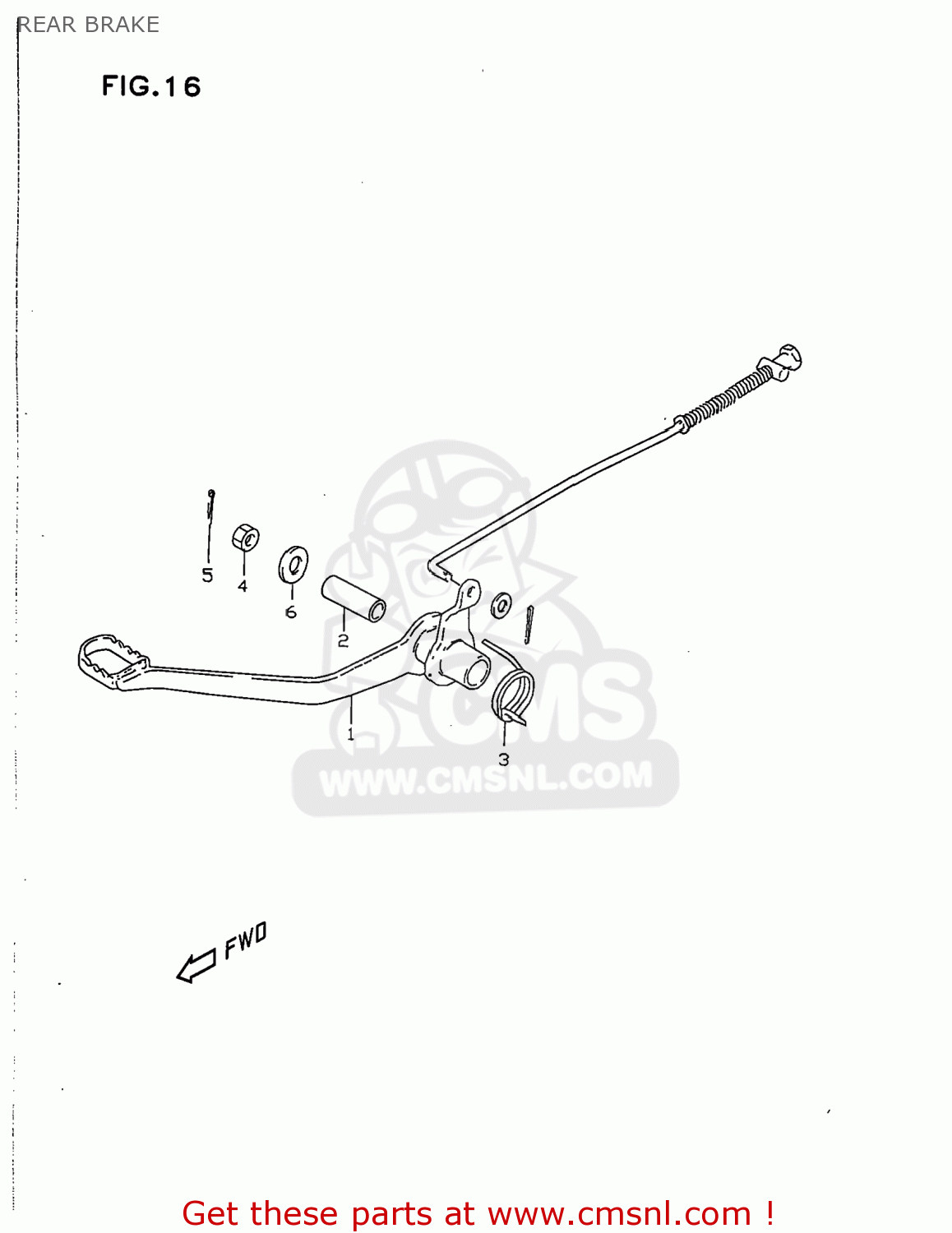

Rear brake diagram JR50 1996 (T) USA (E03)

REAR BRAKE JR50 1996 (T) USA (E03)

REAR BRAKE JR50 1996 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4311004410
ref: 1

PEDAL,BRAKE

€ 12.00

2

4318104411
ref: 2

SPACER,BRAKE PEDAL

€ 3.50

3

4318204410
ref: 3

SPRING,BRAKE PEDAL RETURN

€ 6.50

4

0914110006
ref: 4

NUT

€ 2.50

5

0411125208
ref: 5
04111-2520A

PIN 25X20

€ 2.00

6

0916010119
ref: 6
09160-10143

WASHER(10.5X22X1.6)

€ 2.00
