FUEL TANK (MODEL K2/K3)
JR50 2000 (Y) USA (E03)

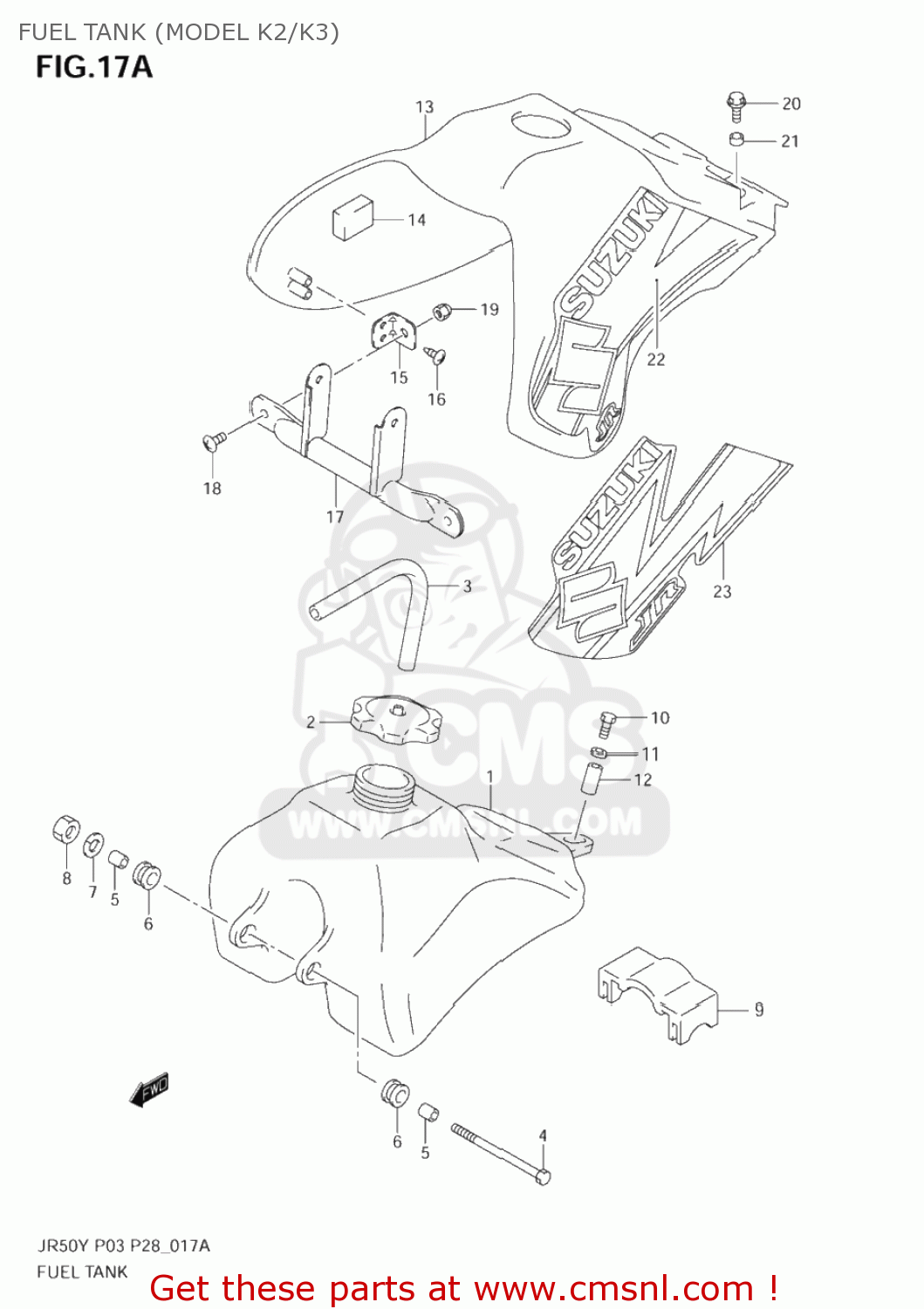

Fuel tank (model k2/k3) diagram JR50 2000 (Y) USA (E03)
FUEL TANK (MODEL K2/K3) JR50 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410009AB0
ref: 1
44100-09AA0
TANK ASSY,FUEL
€ 89.50
2
4420009AA0
ref: 2
CAP ASSY,FUEL TANK FILLER
€ 37.00
3
0935250823600
ref: 3
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
4
0150006903
ref: 4
01500-0690B
BOLT, FRONT
€ 2.50
5
0918006289
ref: 5
SPACER(6.5X10X11.5)
€ 2.50
6
0932010008
ref: 6
CUSHION
€ 2.50
7
0832101063
ref: 7
08321-0106A
LOCK WASHER
€ 2.00
8
0831000063
ref: 8
08310-0006A
NUT 6MM
€ 2.00
9
4454204420
ref: 9
CUSHION,FUEL TANK UPR
€ 5.50
10
0150006163
ref: 10
01500-0616A
BOLT
€ 2.00
11
0916006028
ref: 11
WASHER(6.5X18X1)
€ 1.50
12
0918006260
ref: 12
SPACER(6.5X9X7.2)
€ 3.50
13
4427109AA0YU1
ref: 13
COVER,FUEL TANK
€ 251.50
14
1779829E30
ref: 14
CUSHION,RADIATOR COVER FR
€ 4.00
15
4417109AA0
ref: 15
BRACKET,FUEL TANK COVER NO.1
€ 0.00
16
0324205123
ref: 16
03241-0512A
SCREW
€ 1.50
17
4417009AA0
ref: 17
BRACKET,FUEL TANK COVER
€ 0.00
18
0214206123
ref: 18
02142-0612A
SCREW 6X12
€ 2.00
19
0831320063
ref: 19
08313-2006A
NUT
€ 2.00
20
0913606015
ref: 20
SCREW(6X16)
€ 2.00
21
0918006309
ref: 21
SPACER(6.5X10X5)
€ 2.00
22
6812009AA0GY7
ref: 22
TAPE SET,FUEL TANK COVER
€ 0.00
23
6812009AB0KD2
ref: 23
TAPE SET,FUEL TANK COVER
€ 0.00
