REAR BRAKE

JR50 2000 (Y) USA (E03)

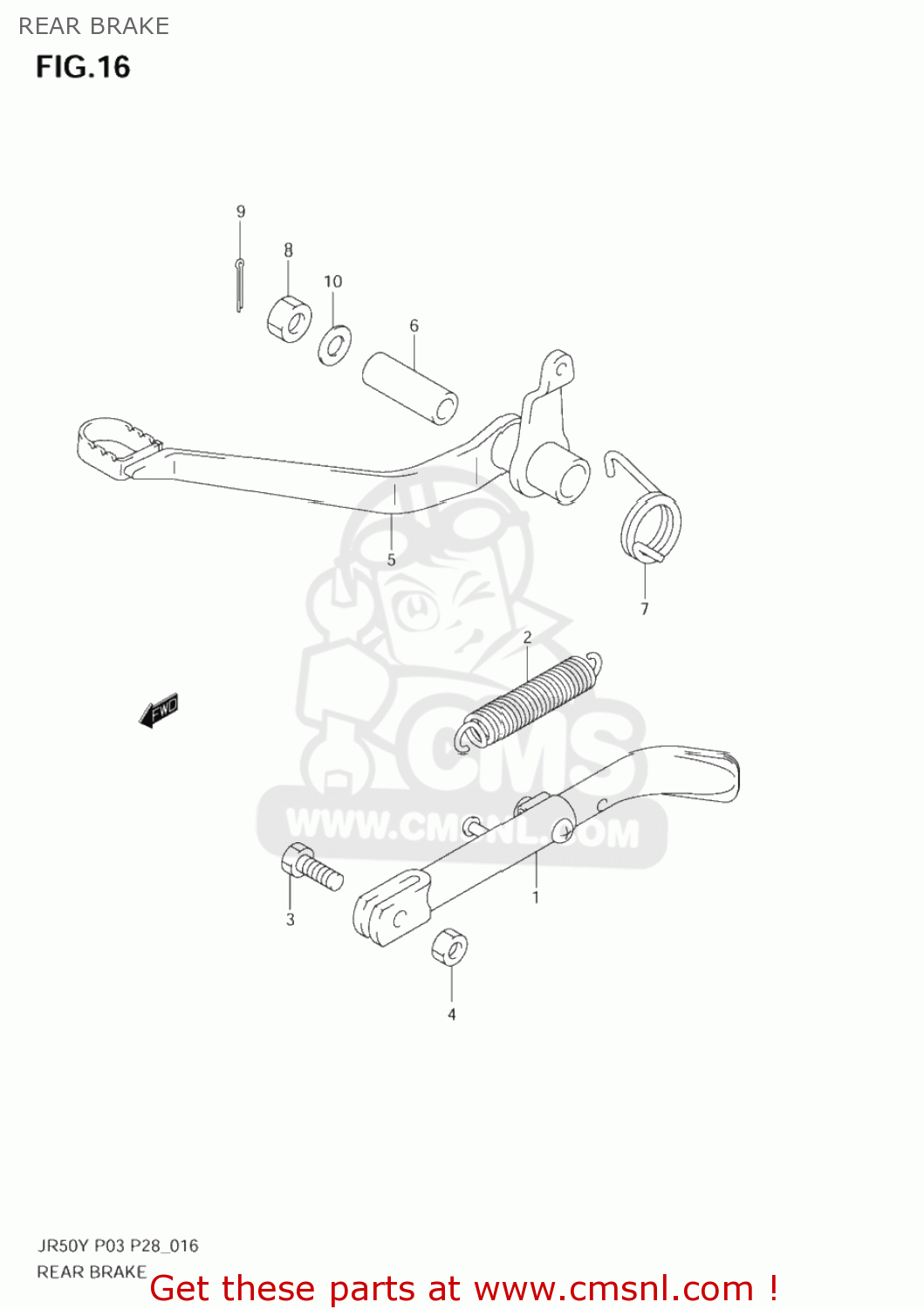

Rear brake diagram JR50 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

STAND,PROP

€ 93.50

0944314017
ref: 2

SPRING

€ 6.50

3-1

0910008145
ref: 3-1
09100-08274

BOLT 8X22

€ 3.00

3-2

0910008274
ref: 3-2

BOLT(8X22)

€ 3.00

0831000083
ref: 4
08310-0008A

NUT

€ 1.50

4311004410
ref: 5

PEDAL,BRAKE

€ 12.00

4318104411
ref: 6

SPACER,BRAKE PEDAL

€ 3.50

4318204410
ref: 7

SPRING,BRAKE PEDAL RETURN

€ 6.50

0915910093
ref: 8

NUT

€ 8.50

0411125208
ref: 9
04111-2520A

PIN 25X20

€ 2.00

0916010119
ref: 10
09160-10143

WASHER(10.5X22X1.6)

€ 2.00

all assemblies
