MAGNETO (MODEL K4)
JR50 2000 (Y) USA (E03)

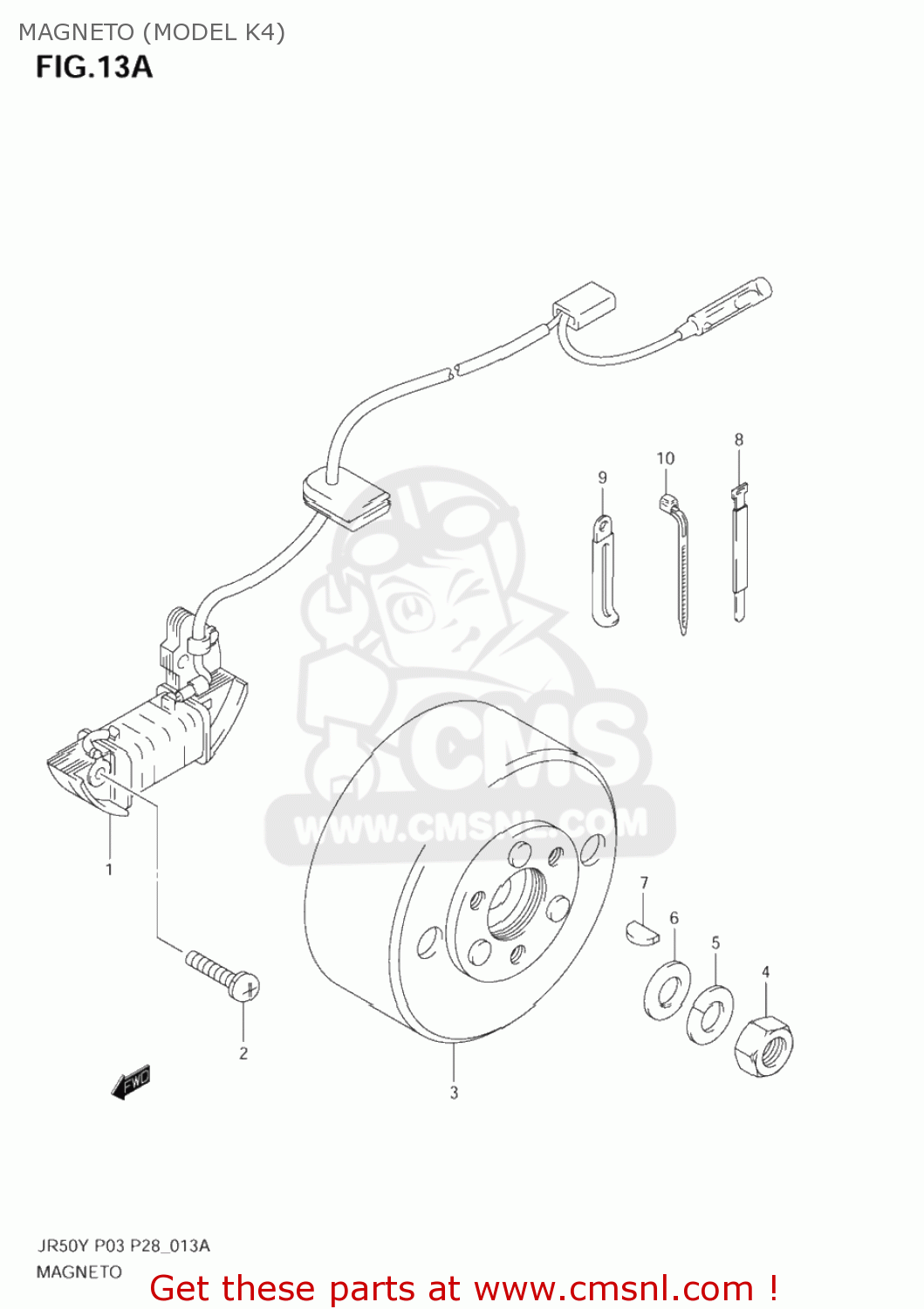

Magneto (model k4) diagram JR50 2000 (Y) USA (E03)
MAGNETO (MODEL K4) JR50 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210119G00
ref: 1
STARTER ASSY
€ 80.50
2
0211234253
ref: 2
02112-3425B
SCREW
€ 2.00
3
3210219G00
ref: 3
ROTOR ASSY
€ 0.00
4
0831000103
ref: 4
08310-0010A
NUT
€ 2.00
5
0832101103
ref: 5
08321-0110A
WASHER
€ 3.00
6
0832201103
ref: 6
08322-0110A
WASHER
€ 2.50
7
0834131039
ref: 7
KEY
€ 2.00
8
0940714301
ref: 8
09407-18301
CLAMP
€ 6.00
9
0940406429
ref: 9
CLAMP(L:45)
€ 2.50
10
0940718402
ref: 10
CLAMP(L:165)
€ 2.50
