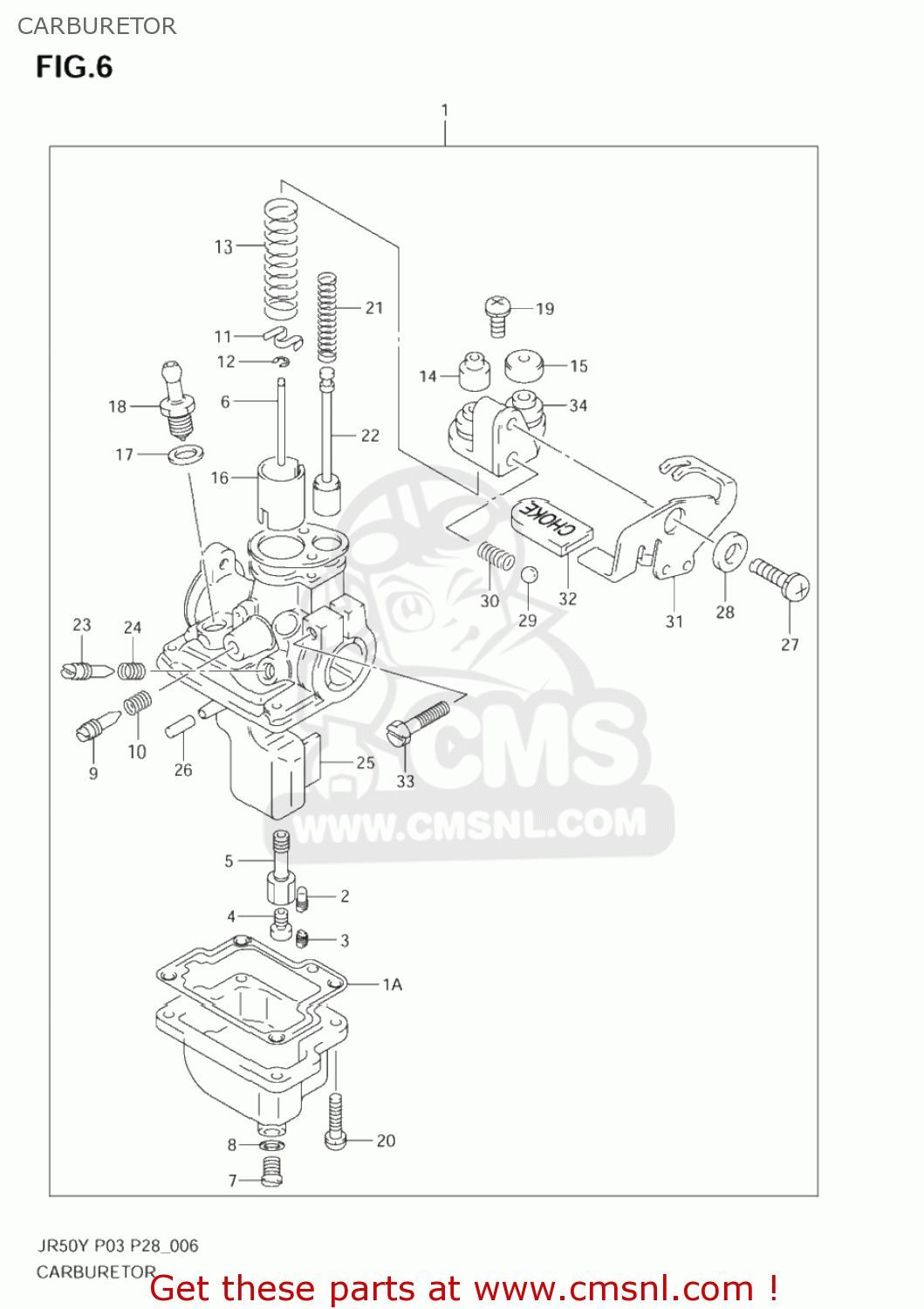

CARBURETOR

ref

part #

description

quantity

1

1320004450
ref: 1

CARBURETOR ASSY

€ 0.00

1A

1325104110
ref: 1A

GASKET,FLOAT CAHMBER (NAS)

€ 5.50

2

0949215015
ref: 2

JET,PILOT(15)

€ 11.00

3

0949215009
ref: 3

JET,PILOT

€ 6.50

4

0949156002
ref: 4

JET,MAIN(56.3)

€ 6.50

5

0949400933
ref: 5

JET,NEEDLE(E-6)

€ 12.50

6

1338313670
ref: 6

NEEDLE,JET

€ 13.50

7

1324705010
ref: 7

PLUG

€ 6.00

8

1324905010
ref: 8

GASKET,DRAIN,PLUG (NAS)

€ 1.50

9

1326701010
ref: 9

SCREW,THROTTLE STOP

€ 6.00

10

1326801010
ref: 10

SPRING

€ 3.50

11

1358104010
ref: 11

SEAT,THROTTLE VALVE SPRING

€ 3.00

12

1339440D00
ref: 12

CLIP,NEEDLE

€ 3.00

13

1357301010
ref: 13

SPRING,THROTTLE VALVE

€ 5.50

14

1368104010
ref: 14

CAP

€ 3.00

15

1368298010
ref: 15

RUBBER,THROTTLE VALVE CAP

€ 3.00

16

1355104110
ref: 16

VALVE,THROTTLE

€ 24.00

17

1366331010
ref: 17

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

18

1337004450
ref: 18

VALVE ASSY,NEEDLE

€ 24.00

19

0211234103
ref: 19
02112-3410A

SCREW

€ 2.00

20

0211234123
ref: 20
02112-3412B

SCREW

€ 2.00

21

1341743010
ref: 21

SPRING

€ 3.50

22

1341104410
ref: 22

VALVE,STARTER

€ 14.00

23

1326904010
ref: 23

SCREW,AIR

€ 10.00

24

1326801010
ref: 24

SPRING

€ 3.50

25

1325204011
ref: 25

FLOAT

€ 18.50

26

1325404010
ref: 26

PIN,FLOAT

€ 3.00

27

1360106128
ref: 27

SCREW

€ 2.50

28

1342430650
ref: 28

RING,CARBURETOR STARTER

€ 5.00

29

1343533110
ref: 29

BALL,STARTER SHAFT

€ 2.50

30

1343430650
ref: 30

SPRING,STARTER SHAFT

€ 4.00

31

1341304450
ref: 31

LEVER,STARTER

€ 0.00

32

1341628700
ref: 32

CAP,LEVER

€ 6.00

33

1332304010
ref: 33

BOLT

€ 0.00

34

1326104410
ref: 34

TOP ASSY

€ 0.00

all assemblies
