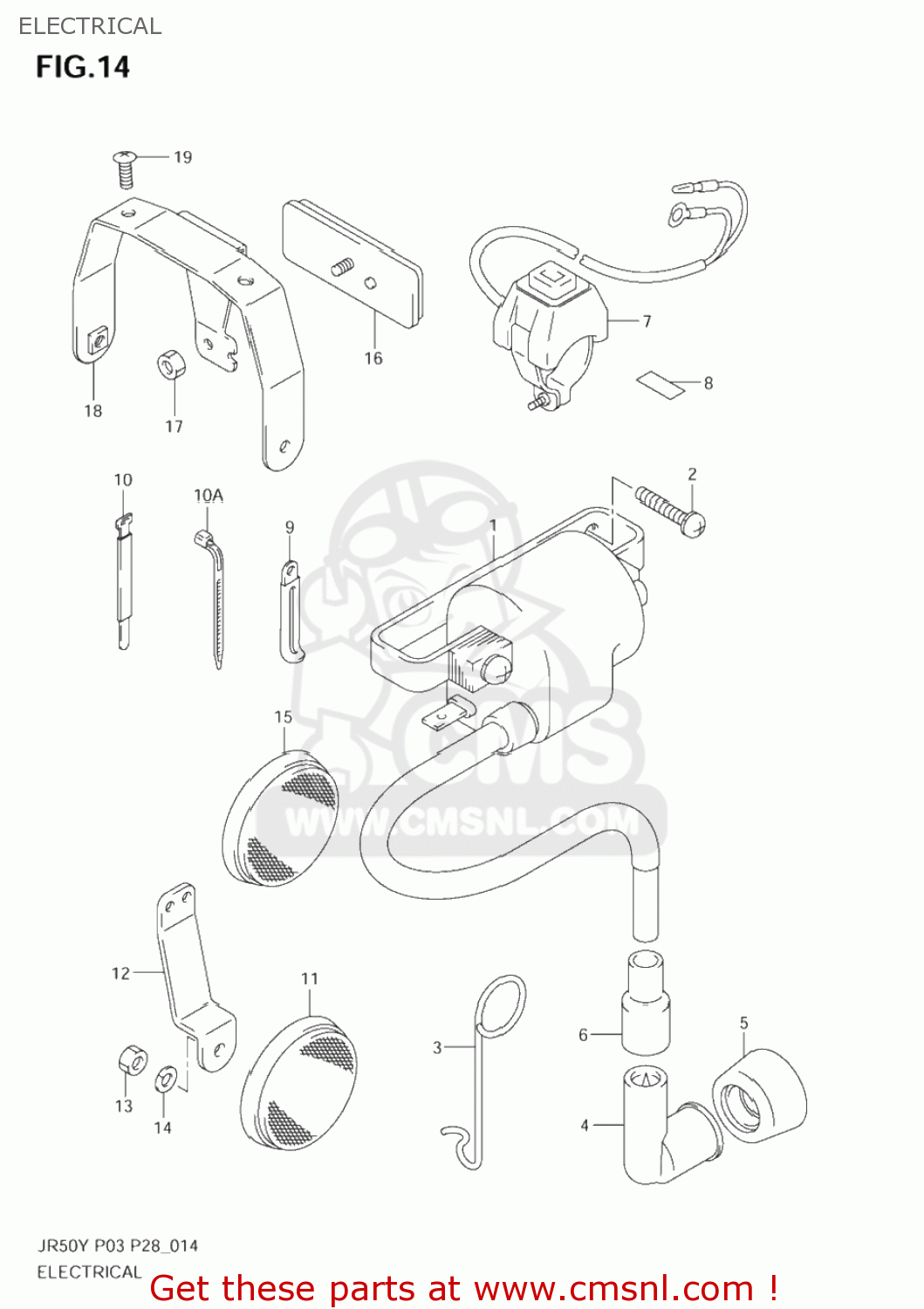

ELECTRICAL

ref

part #

description

quantity

1

3341035340
ref: 1

UNIT & COIL ASSY,IGNITION

€ 190.50

2

0211206207
ref: 2

SCREW

€ 2.00

3

5862604410
ref: 3

CLIP

€ 0.00

4

3351035411
ref: 4

CAP ASSY,SPARK PLUG

€ 20.00

5

3354169010
ref: 5

SEAL,SPARK PLUG

€ 5.00

6

3354238B00
ref: 6

SEAL,HIGH TENSION CORD

€ 4.50

7

3782014X50
ref: 7

SWITCH ASSY,ENGINE STOP

€ 24.50

8-1

3723846401
ref: 8-1

LABEL,ENGINE STEP SWITCH

€ 0.00

8-2

3723846411
ref: 8-2

LABEL,ENGINE STEP SWITCH

€ 0.00

9

0940406429
ref: 9

CLAMP(L:45)

€ 2.50

10

0940718301
ref: 10

CLAMP

€ 6.00

10A

0940718402
ref: 10A

CLAMP(L:165)

€ 2.50

11-1

3595045010
ref: 11-1

REFLEX REFLECTOR,FR

€ 17.00

11-2

3595014A00
ref: 11-2

REFLECTOR,REFLEX FR

€ 15.00

12

3597509AA0
ref: 12

BRACKET,FR SIDE RR

€ 7.50

13

0831000053
ref: 13
08310-0005A

NUT

€ 2.50

14

0832101053
ref: 14
08321-0105A

LOCK,WASHER

€ 3.00

15-1

3597030910
ref: 15-1

REFLEX REFLECTOR,RR

€ 47.50

15-2

3597014A10
ref: 15-2

REFLEX REFLECTOR,RR

€ 12.00

16

3597007F00
ref: 16
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

17

0831000053
ref: 17
08310-0005A

NUT

€ 2.50

18

3597604450
ref: 18

BRACKET,SIDE & RR

€ 13.50

19

0214206127
ref: 19

SCREW 6X12

€ 1.50

all assemblies
