ELECTRICAL

JR50R 1983 (D) USA (E03)

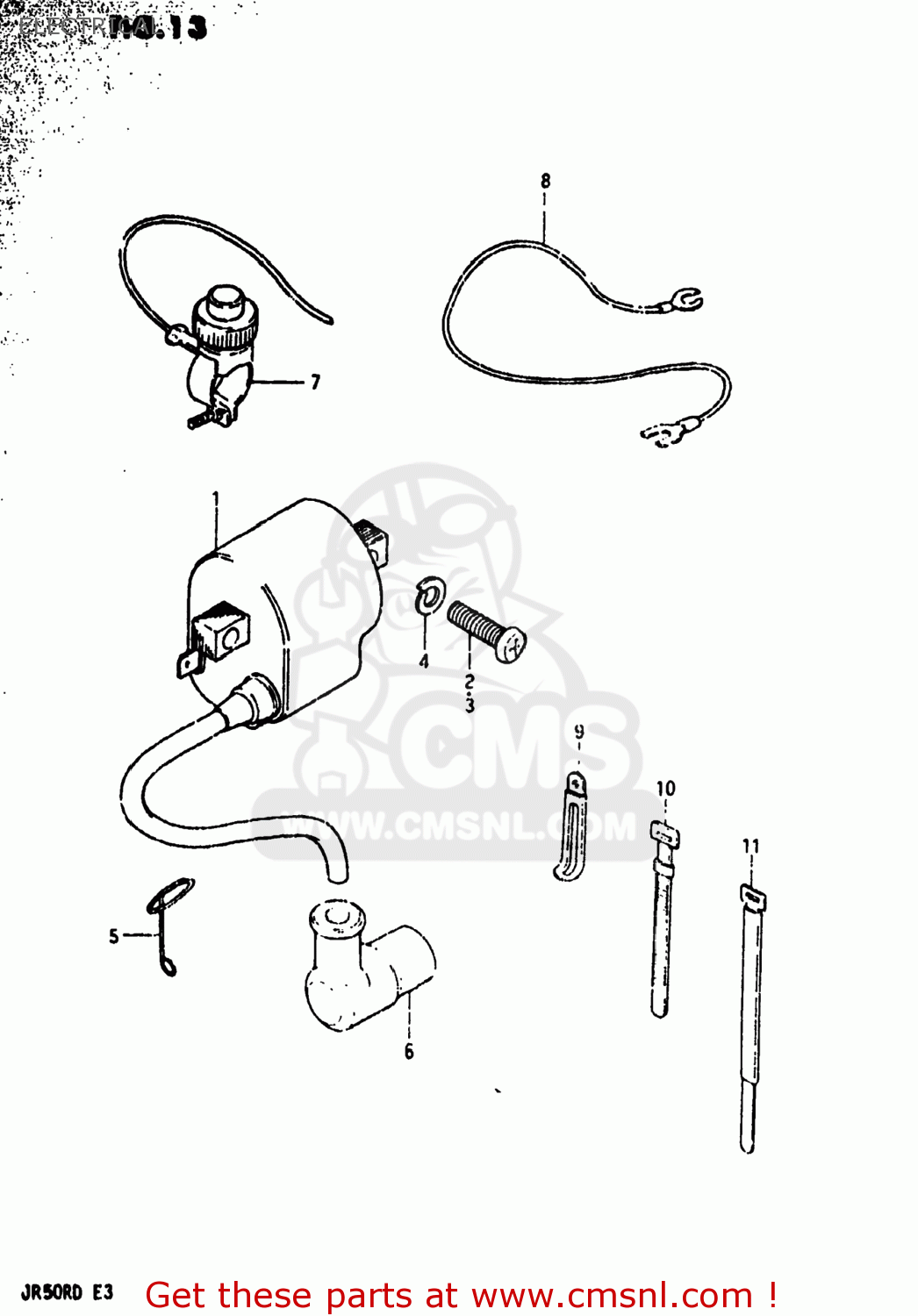

Electrical diagram JR50R 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

3341017310
ref: 1
33410-35340

COIL ASSEMBLY,IGNITION

€ 190.50

0211206208
ref: 2
02112-06207

SCREW

€ 2.00

0211206258
ref: 3
02112-06257

SCREW

€ 2.00

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

3494930002
ref: 5

CLIP

€ 15.50

3351041111
ref: 6
33510-20A02

CAP,SPARK PLUG

€ 23.00

3782004440
ref: 7
37820-14X50

SWITCH ASSEMBLY

€ 24.50

3685104410
ref: 8
36851-41200

WIRE

€ 6.00

0940406412
ref: 9
09404-06432

CLAMP

€ 2.50

0940712402
ref: 10

CLAMP(L:120)

€ 3.00

0940718301
ref: 11

CLAMP

€ 6.00
