TRANSMISSION
JR50R 1983 (D) USA (E03)

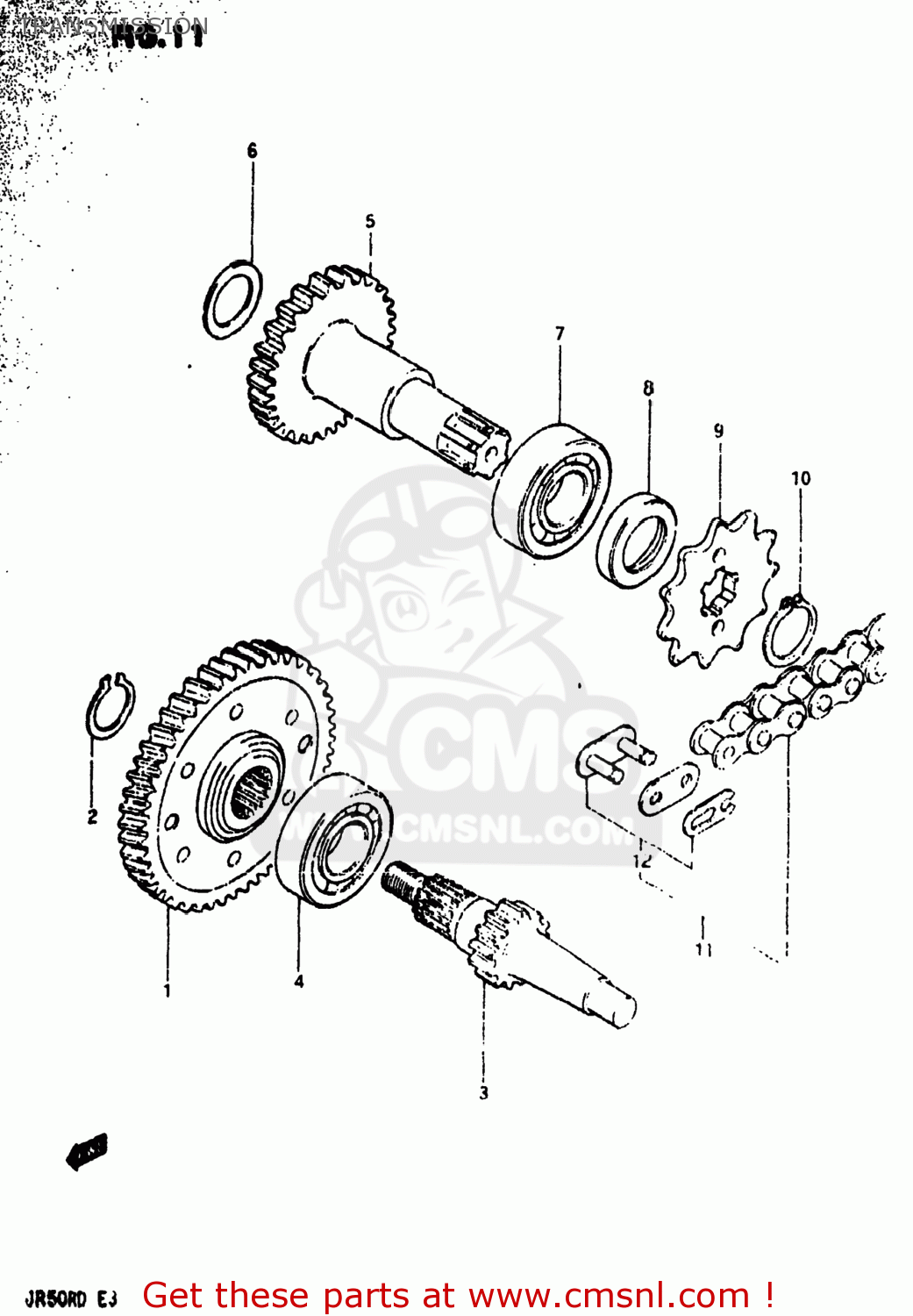

Transmission diagram JR50R 1983 (D) USA (E03)
TRANSMISSION JR50R 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2120004001
ref: 1
21200-04501
GEAR ASSEMBLY,PRIMARY DRIVE
€ 103.00
2
0938017003
ref: 2
CIRCLIP
€ 3.00
3
2412104400
ref: 3
SHAFT,COUNTER
€ 68.50
4
0926217008
ref: 4
09262-17023
BEARING
€ 14.00
5
2413004400
ref: 5
SHAFT,DRIVE
€ 124.50
6
0821117301
ref: 6
09181-17223
WASHER,THRUST
€ 3.00
7
0926217008
ref: 7
09262-17023
BEARING
€ 14.00
8
0928317001
ref: 8
SEAL,OIL(17X29X7)
€ 5.50
9
2751119700
ref: 9
SPROCKET,ENGINE(NT:14)
€ 19.00
10
0833131169
ref: 10
08331-3116A
CIRCLIP,16MM
€ 2.00
11
2760004411
ref: 11
27600-01011-130
CHAIN ASSEMBLY,DRIVE
€ 31.00
12-1
2762001011
ref: 12-1
27620-01012
JOINT ASSEMBLY,CHAIN
€ 5.00
12-2
2762001022
ref: 12-2
27620-01023
JOINT ASSEMBLY,CHAIN
€ 5.50
