FRONT FORK
LS650F SAVAGE 1995 (S) USA (E03)

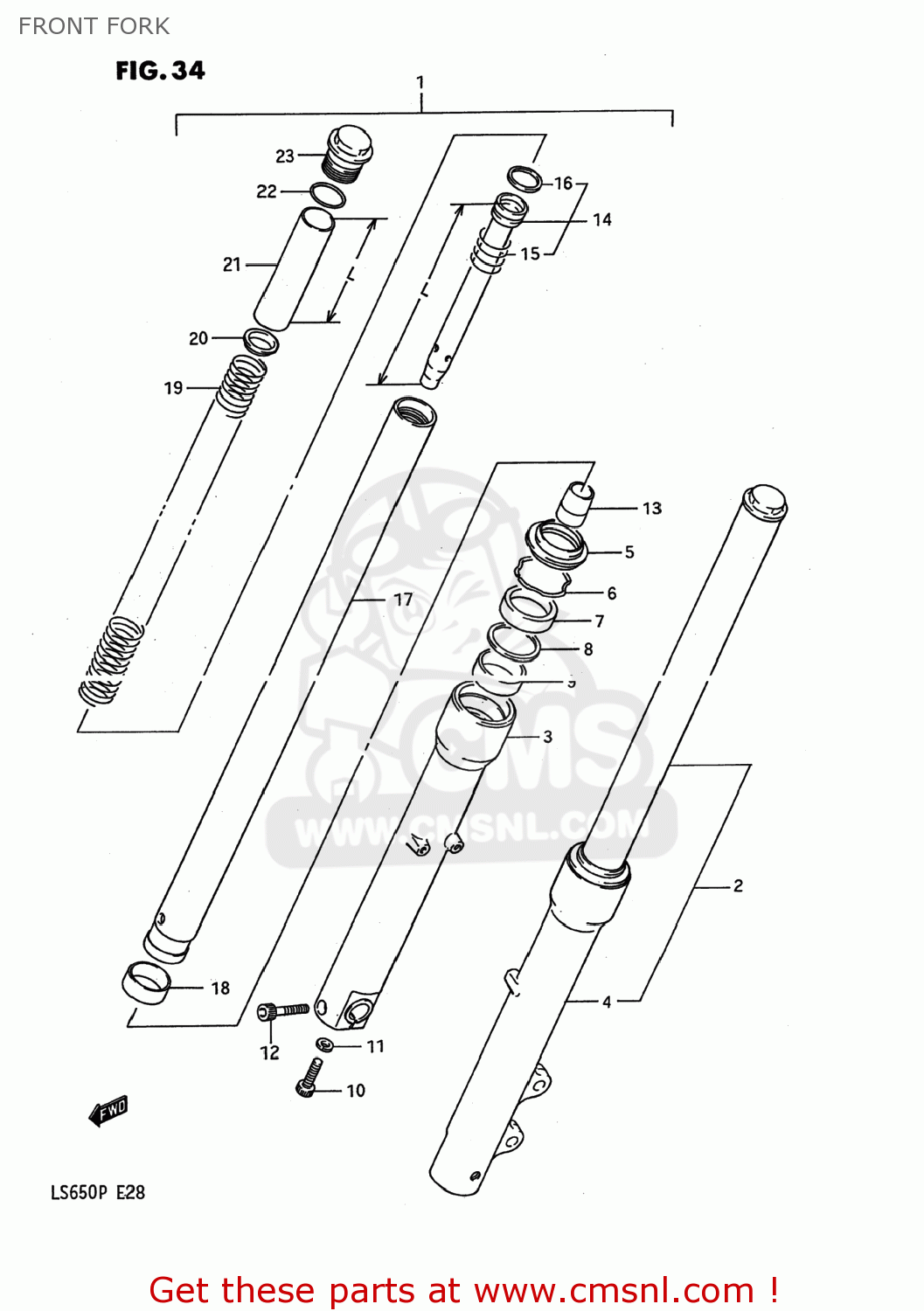

Front fork diagram LS650F SAVAGE 1995 (S) USA (E03)
FRONT FORK LS650F SAVAGE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5110324B00
ref: 1-1
51103-24B01
DAMPER ASSEMBLY,RIGHT
€ 454.50
1-2
5110324B01
ref: 1-2
DAMPER ASSY,FR FORK,R
€ 454.50
1-2
5110324B01
ref: 1-2
DAMPER ASSY,FR FORK,R
€ 454.50
2-1
5110424B00
ref: 2-1
51104-24B01
DAMPER ASSEMBLY,LEFT
€ 454.50
2-2
5110424B01
ref: 2-2
DAMPER ASSY,FR FORK,L
€ 454.50
2-2
5110424B01
ref: 2-2
DAMPER ASSY,FR FORK,L
€ 454.50
3
5113024B00
ref: 3
TUBE,OUTER,R
€ 275.00
4
5114024B00
ref: 4
TUBE,OUTER,L
€ 275.00
5
5117320A00
ref: 5
SEAL,DUST
€ 11.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
5115320A00
ref: 7
SEAL,OIL
€ 13.50
8
5115814100
ref: 8
WASHER(40X50X2.3)
€ 2.50
9-1
5116714100
ref: 9-1
51167-13A00
METAL,SLIDE
€ 7.00
9-2
5116713A00
ref: 9-2
METAL,SLIDE
€ 7.00
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
€ 3.50
11
5114841310
ref: 11
GASKET (NAS)
€ 2.50
12
0711008388
ref: 12
07130-08407
BOLT
€ 3.50
13-1
5119524B00
ref: 13-1
PIECE,OIL LOCK
€ 0.00
13-2
5119524B01
ref: 13-2
PIECE,OIL LOCK
€ 9.50
13-2
5119524B01
ref: 13-2
PIECE,OIL LOCK
€ 9.50
14-1
5114624B00
ref: 14-1
CYLINDER
€ 0.00
14-2
5114624B01
ref: 14-2
CYLINDER
€ 53.00
14-2
5114624B01
ref: 14-2
CYLINDER
€ 53.00
15
5117749440
ref: 15
SPRING,REBOUND
€ 6.50
16
5119605A00
ref: 16
RING,PISTON
€ 7.50
17-1
5112024B00
ref: 17-1
TUBE,FORK,INNER
€ 248.50
17-2
5112024B01
ref: 17-2
TUBE,INNER
€ 301.50
17-2
5112024B01
ref: 17-2
TUBE,INNER
€ 301.50
18
5112114100
ref: 18
PISTON
€ 10.50
19
5117124B00
ref: 19
SPRING
€ 55.00
20
5117224A00
ref: 20
51356-24B01
GUIDE,SPRING
€ 3.00
21-1
5117624B00
ref: 21-1
SPACER
€ 0.00
21-2
5117624B01
ref: 21-2
SPACER,SPRING
€ 6.50
21-2
5117624B01
ref: 21-2
SPACER,SPRING
€ 6.50
22
5111740300
ref: 22
O RING
€ 2.50
23
5135124B00
ref: 23
CAP
€ 46.00
