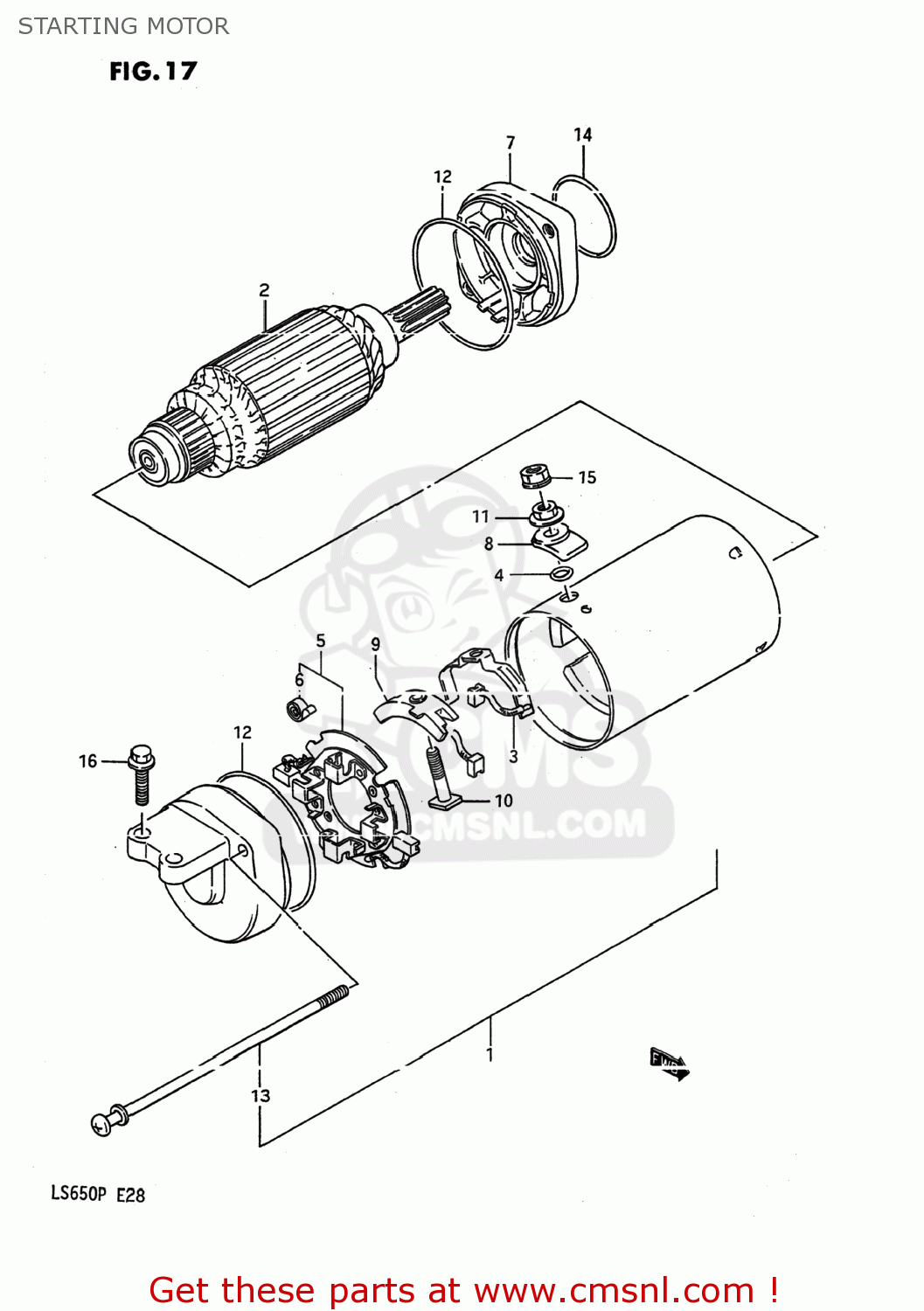

STARTING MOTOR

ref

part #

description

quantity

1-1

3110024B00
ref: 1-1
31100-07F00

MOTOR ASSEMBLY,STARTING

€ 620.00

1-2

3110024B11
ref: 1-2
31100-07F00

MOTOR ASSEMBLY,STARTING

€ 620.00

1-3

3110024B11H17
ref: 1-3
31100-07F00

MOTOR ASSY ,STARTING

€ 620.00

2

3131024B01H17
ref: 2

ARMATURE

€ 173.00

3

3113148B00
ref: 3

TERMINAL SET,BRUSH

€ 35.00

4-1

3114338300
ref: 4-1

O RING

€ 3.50

4-2

3114348B00
ref: 4-2

GASKET (NAS)

€ 6.50

5

3113248B00
ref: 5

HOLDER SET,BRUSH(-)

€ 51.00

6

3113565010
ref: 6

SPRING

€ 3.00

7

3115024B00
ref: 7
31150-44B00

HOUSING ASSEMBLY,STARTER

€ 98.50

8-1

3117238A10
ref: 8-1

BUSHING

€ 0.00

8-2

3117248B10
ref: 8-2

BUSHING

€ 3.00

9-1

3117238A20
ref: 9-1

BUSHING

€ 7.00

9-2

3117248B20
ref: 9-2

BUSHING

€ 8.50

10-1

3113038A00
ref: 10-1
31281-24B10

TERMINAL SET,BRUSH

€ 6.00

10-2

3113048B00
ref: 10-2

BOLT

€ 4.50

11-1

0831022067
ref: 11-1
08310-00067

NUT 6MM

€ 2.50

11-2

3114548B00
ref: 11-2

NUT

€ 1.50

12

3126444110
ref: 12

O RING

€ 8.00

13-1

3128124B00
ref: 13-1
31281-24B10

BOLT

€ 5.00

13-2

3128124B10
ref: 13-2

BOLT

€ 5.00

14

3115624B00
ref: 14
09280-35005

O-RING (D:2.0)

€ 9.50

15

0836135066
ref: 15
08361-3506A

NUT

€ 2.00

16

0154706207
ref: 16

BOLT

€ 2.50

all assemblies
